Mid Audio System: Wiring Diagram [Crew Cab]

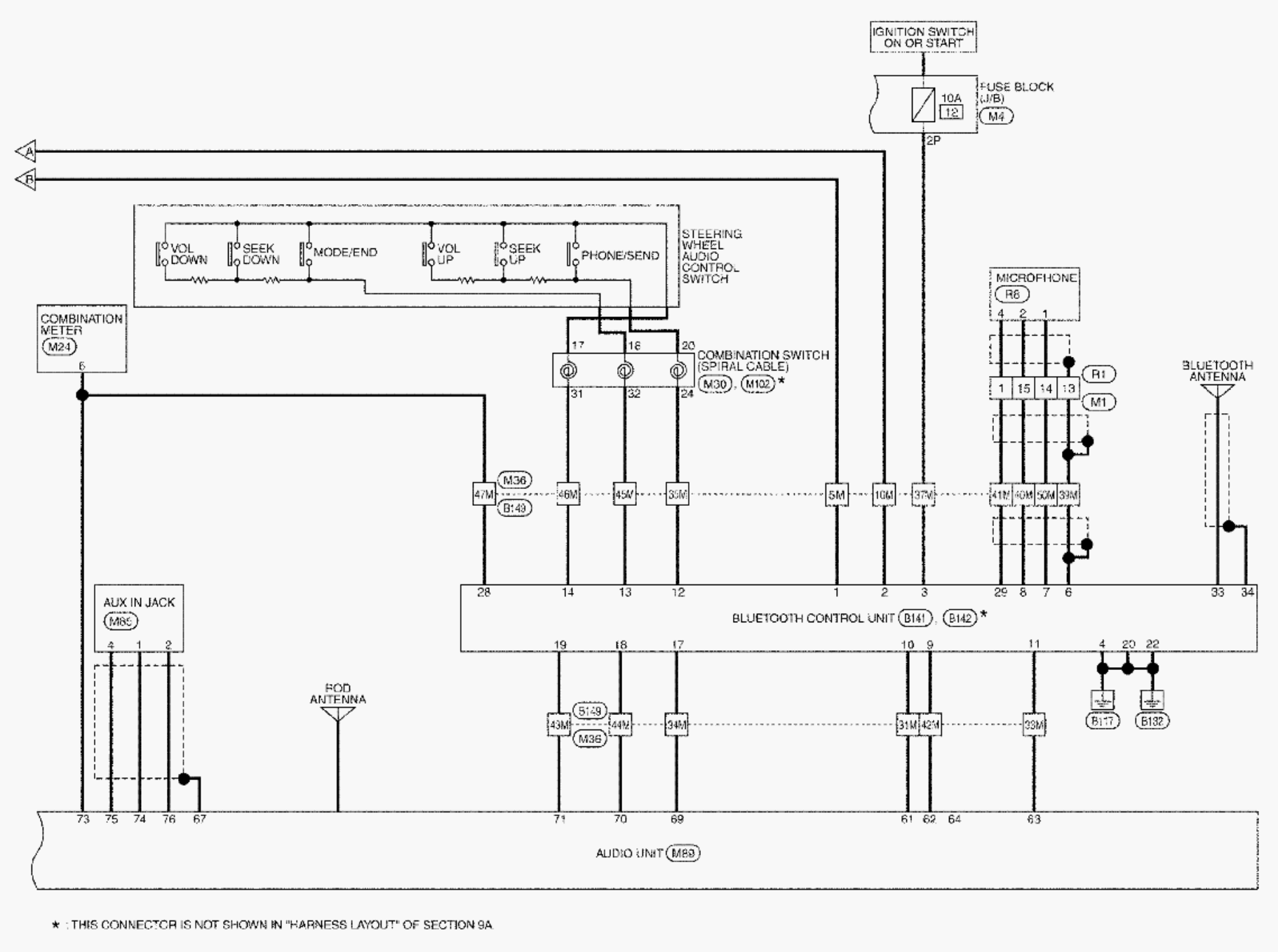

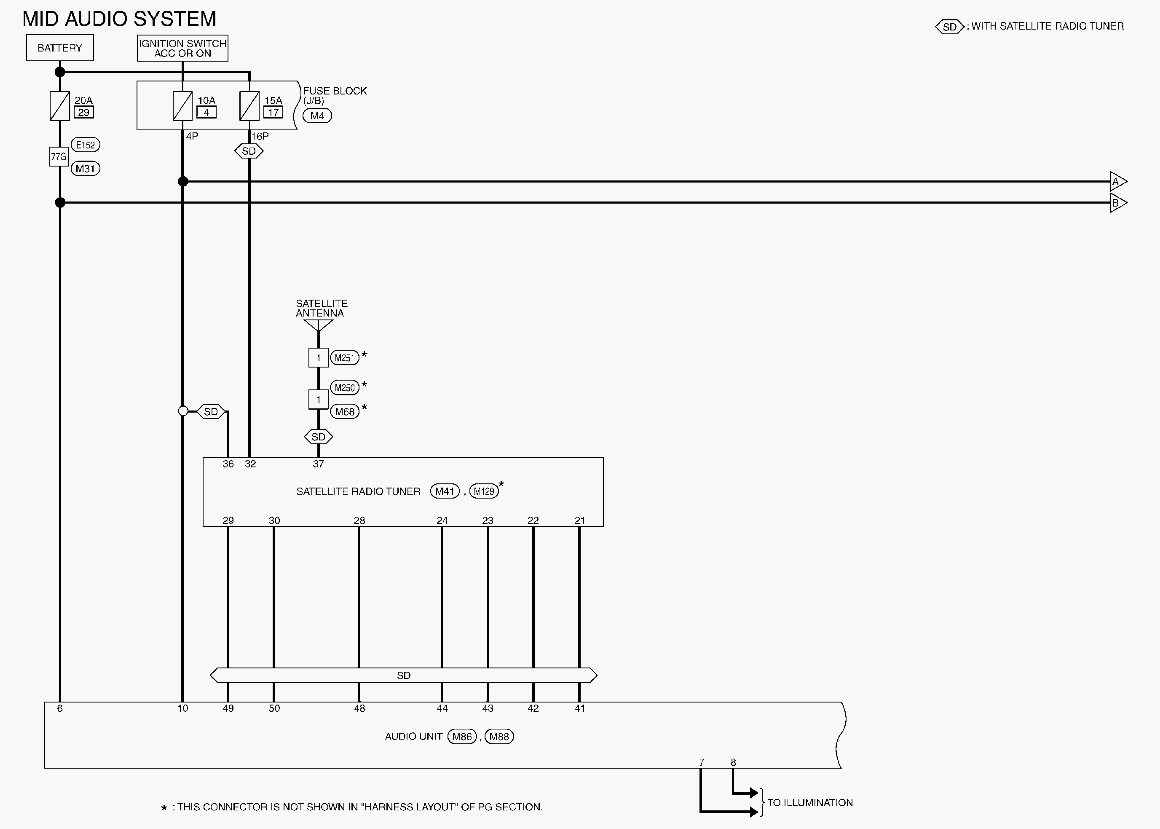

Fig 1: Mid Audio System - Wiring Diagram [Crew Cab] (1 of 14)

Courtesy of SUZUKI OF AMERICA CORP.

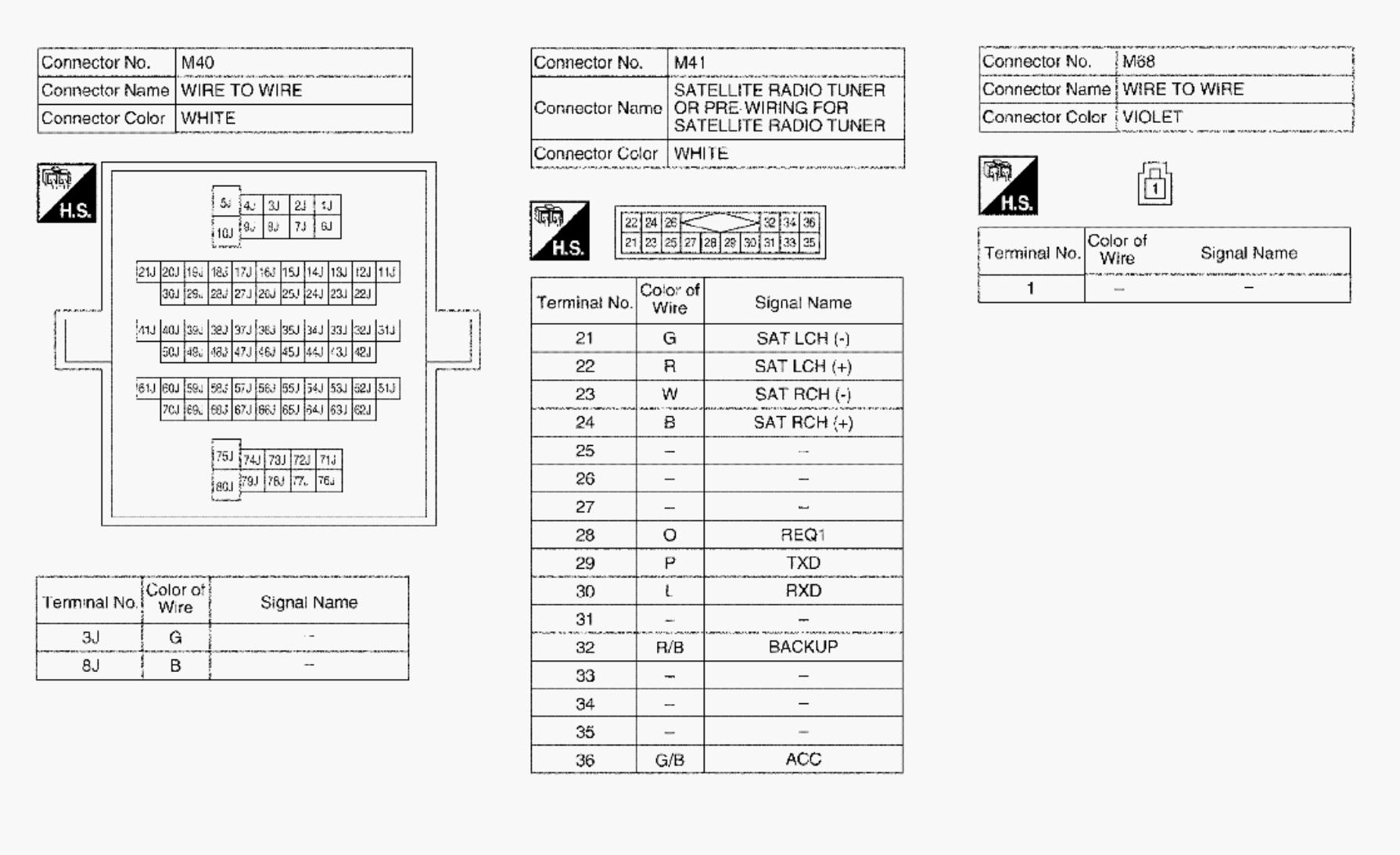

Fig 2: Mid Audio System - Wiring Diagram [Crew Cab] (2 of 14)

Courtesy of SUZUKI OF AMERICA CORP.

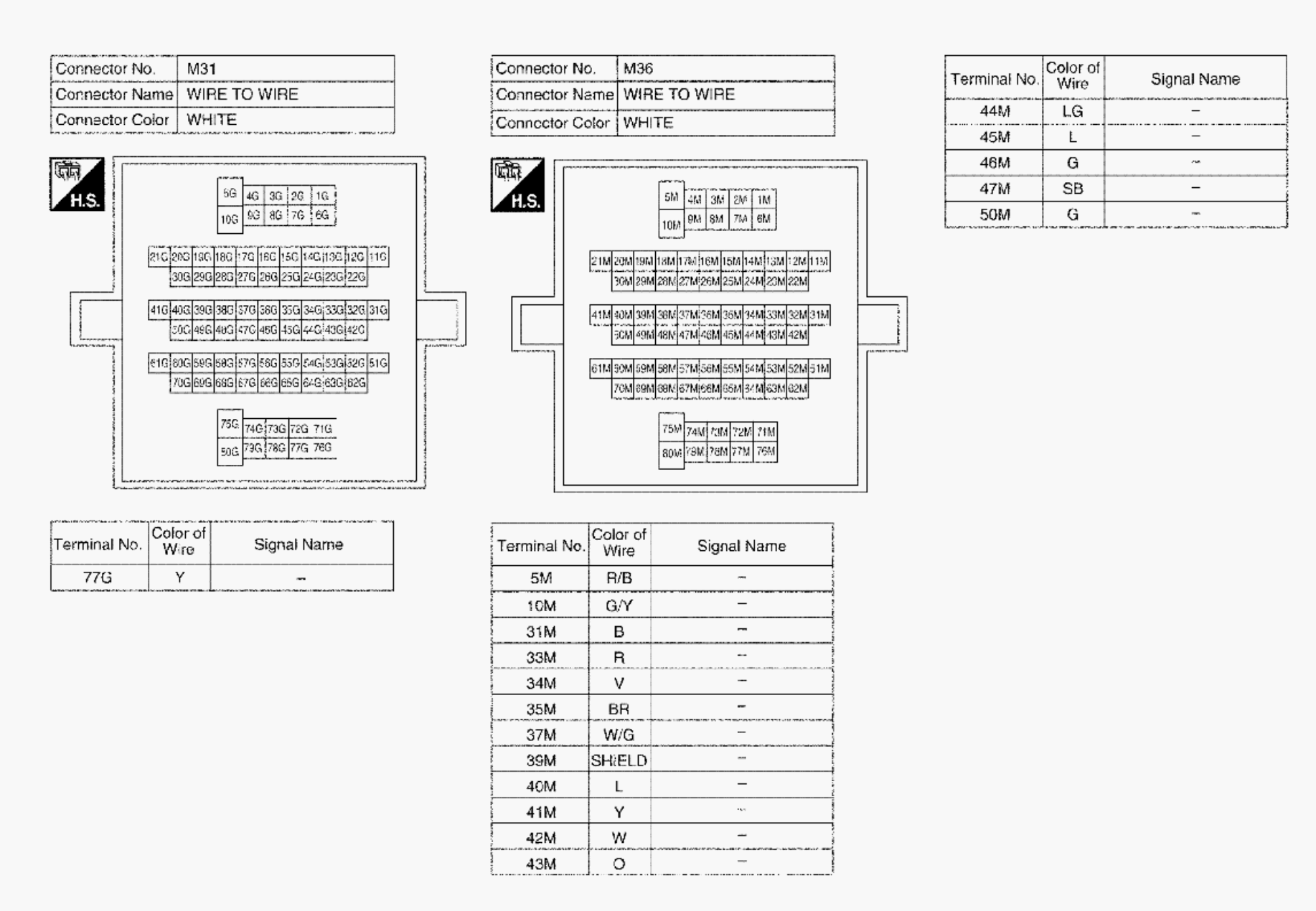

Fig 3: Mid Audio System - Wiring Diagram [Crew Cab] (3 of 14)

Courtesy of SUZUKI OF AMERICA CORP.

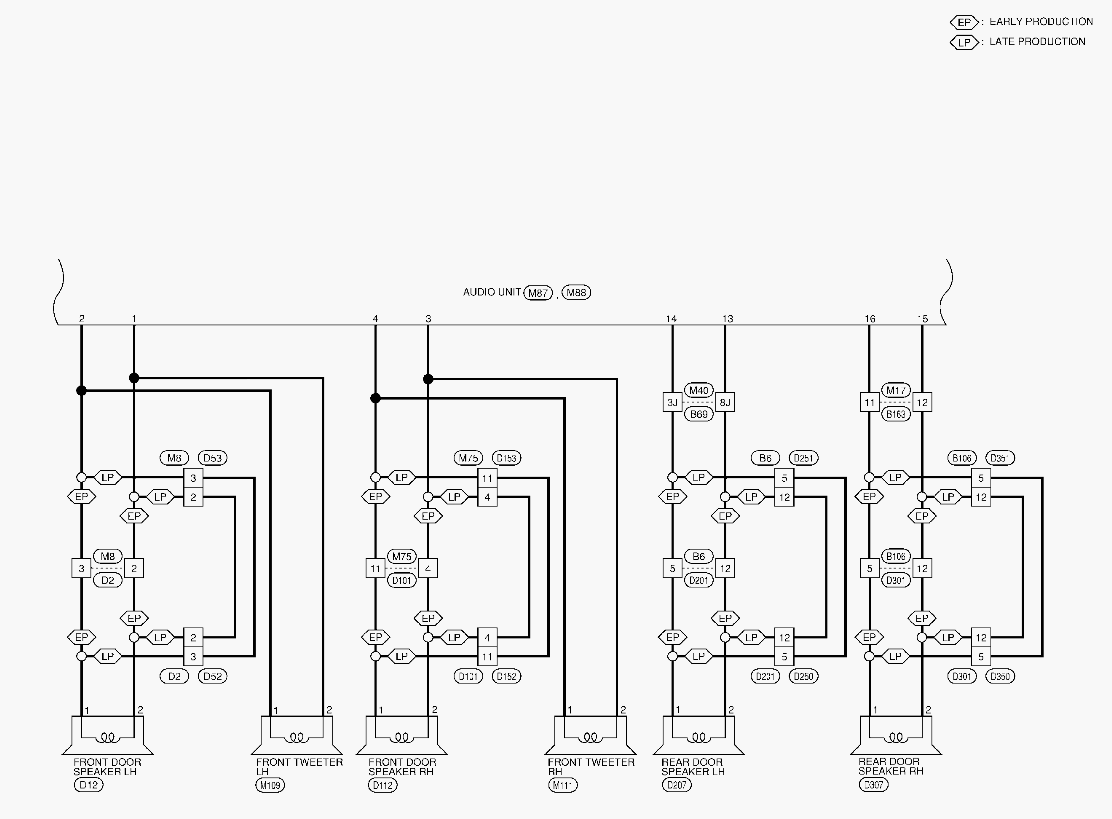

Fig 4: Mid Audio System - Wiring Diagram [Crew Cab] (4 of 14)

Courtesy of SUZUKI OF AMERICA CORP.

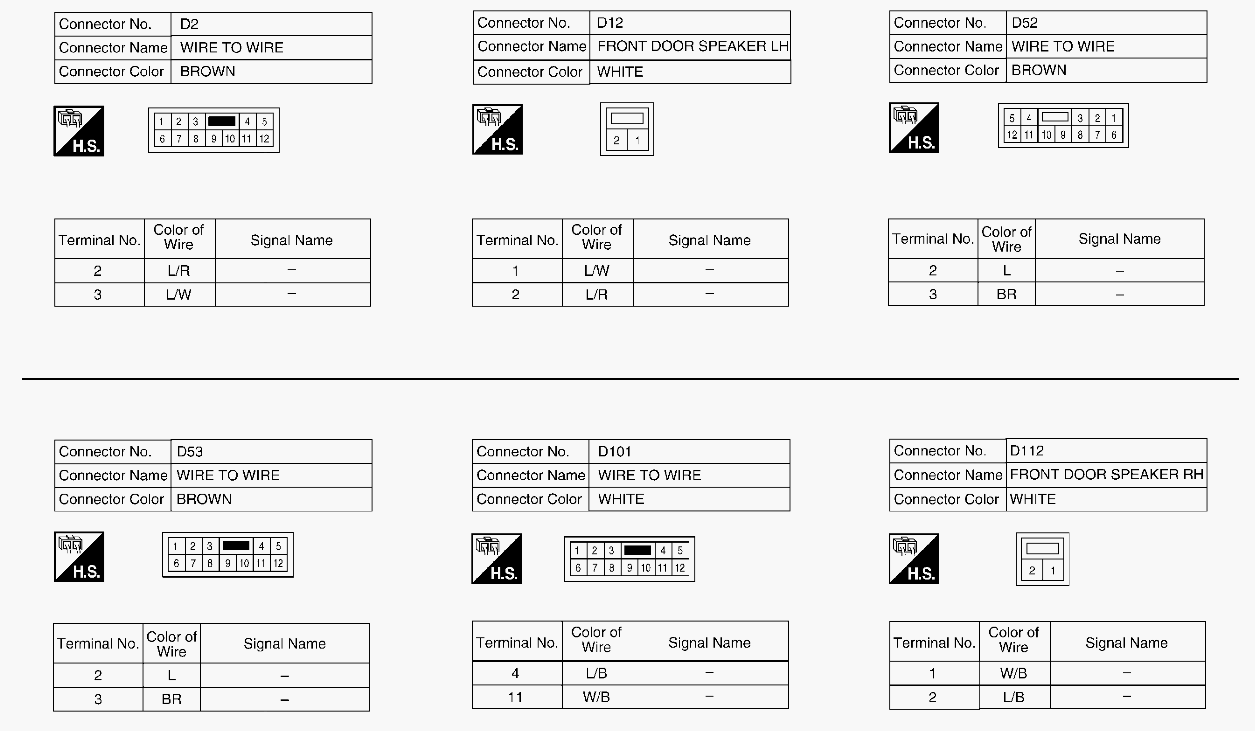

Fig 5: Mid Audio System - Wiring Diagram [Crew Cab] (5 of 14)

Courtesy of SUZUKI OF AMERICA CORP.

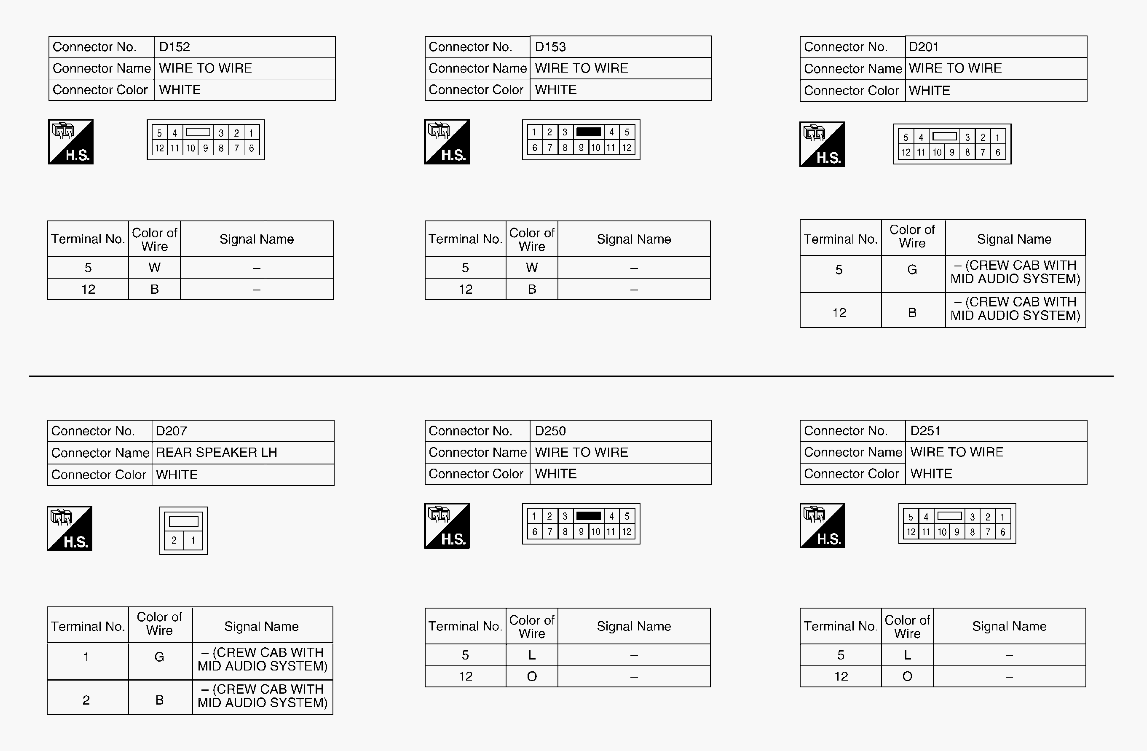

Fig 6: Mid Audio System - Wiring Diagram [Crew Cab] (6 of 14)

Courtesy of SUZUKI OF AMERICA CORP.

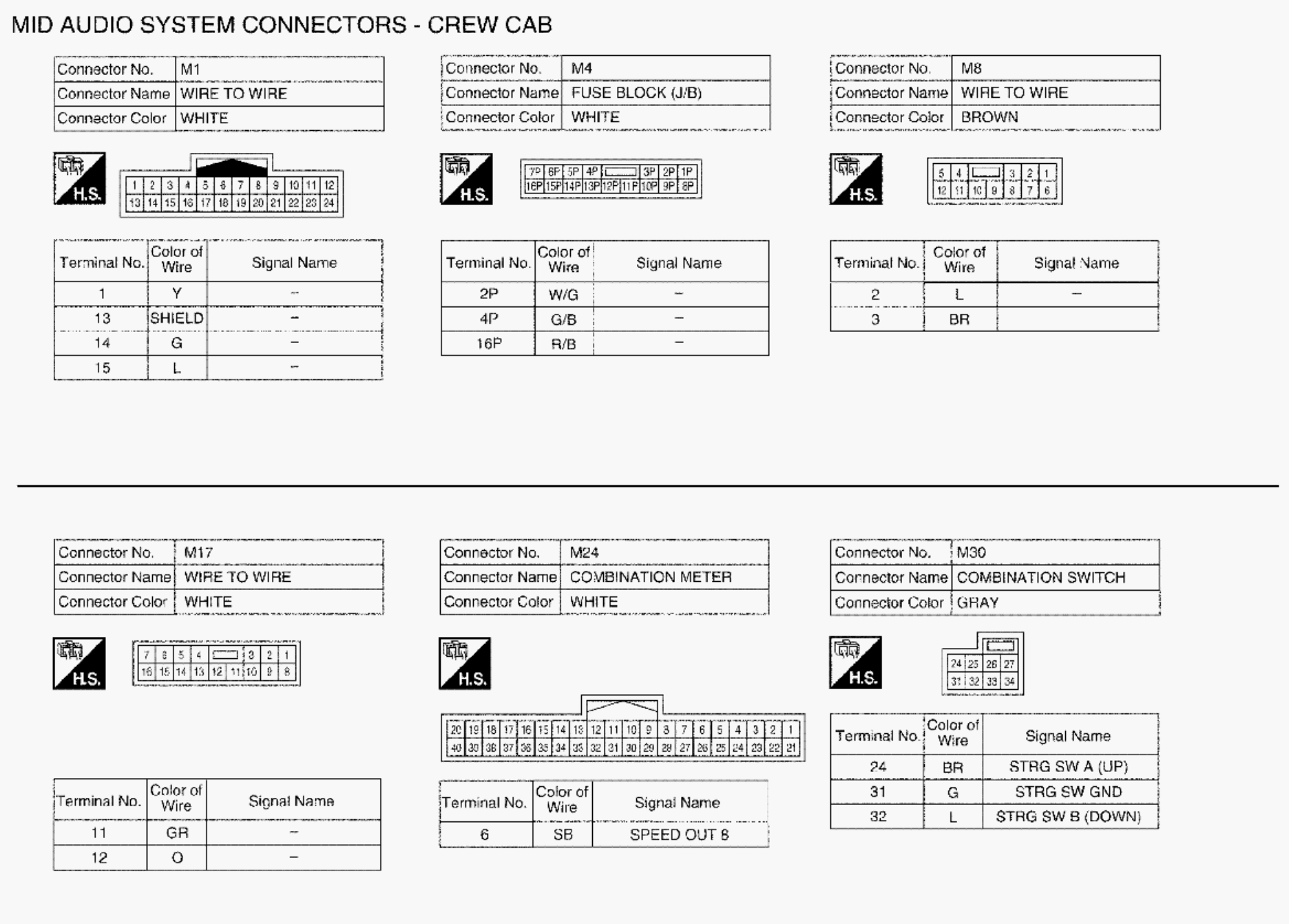

Fig 7: Mid Audio System - Wiring Diagram [Crew Cab] (7 of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 8: Mid Audio System - Wiring Diagram [Crew Cab] (8 of 14)

Courtesy of SUZUKI OF AMERICA CORP.

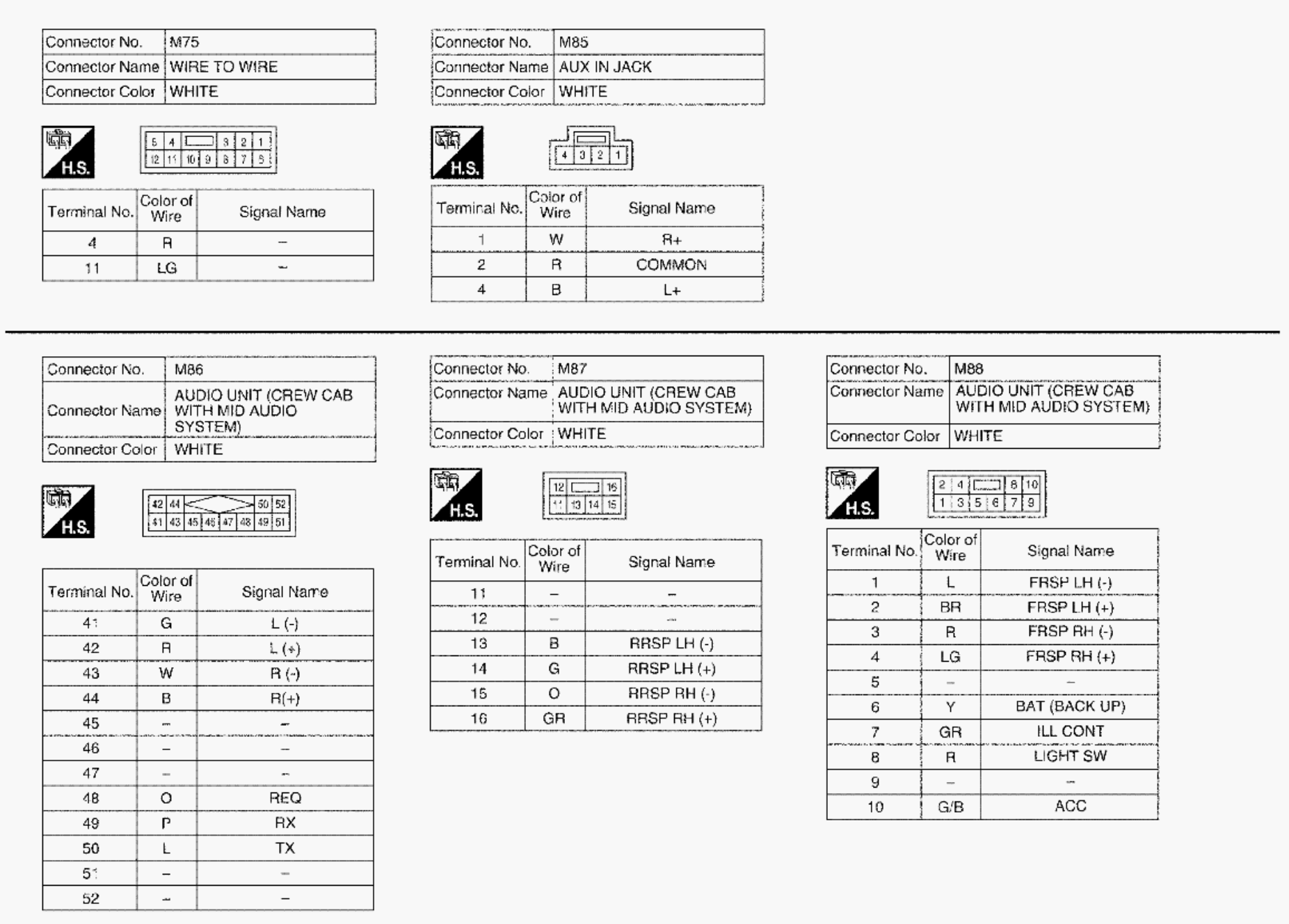

Fig 9: Mid Audio System - Wiring Diagram [Crew Cab] (9 of 14)

Courtesy of SUZUKI OF AMERICA CORP.

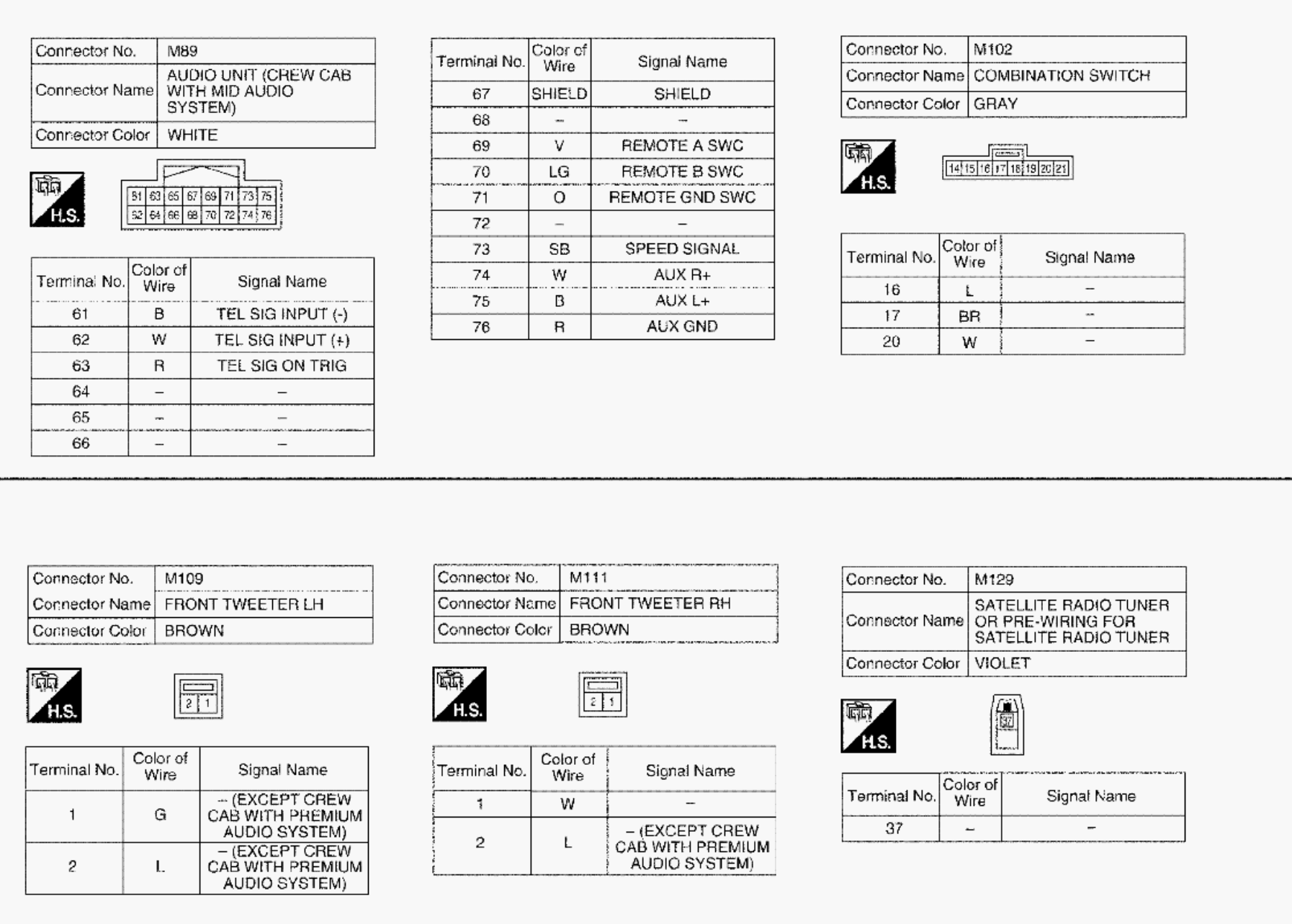

Fig 10: Mid Audio System - Wiring Diagram [Crew Cab] (10 of 14)

Courtesy of SUZUKI OF AMERICA CORP.

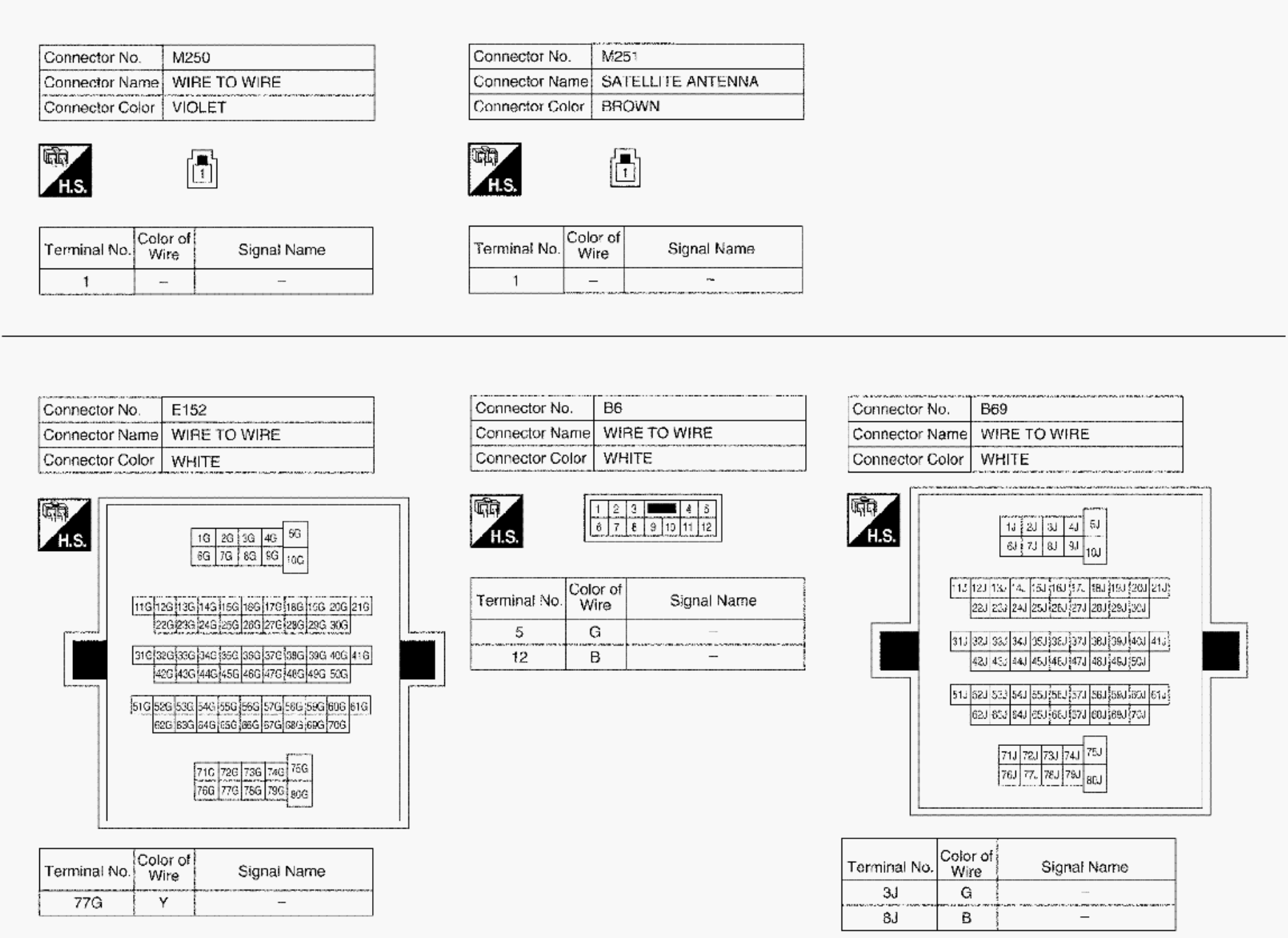

Fig 11: Mid Audio System - Wiring Diagram [Crew Cab] (11 of 14)

Courtesy of SUZUKI OF AMERICA CORP.

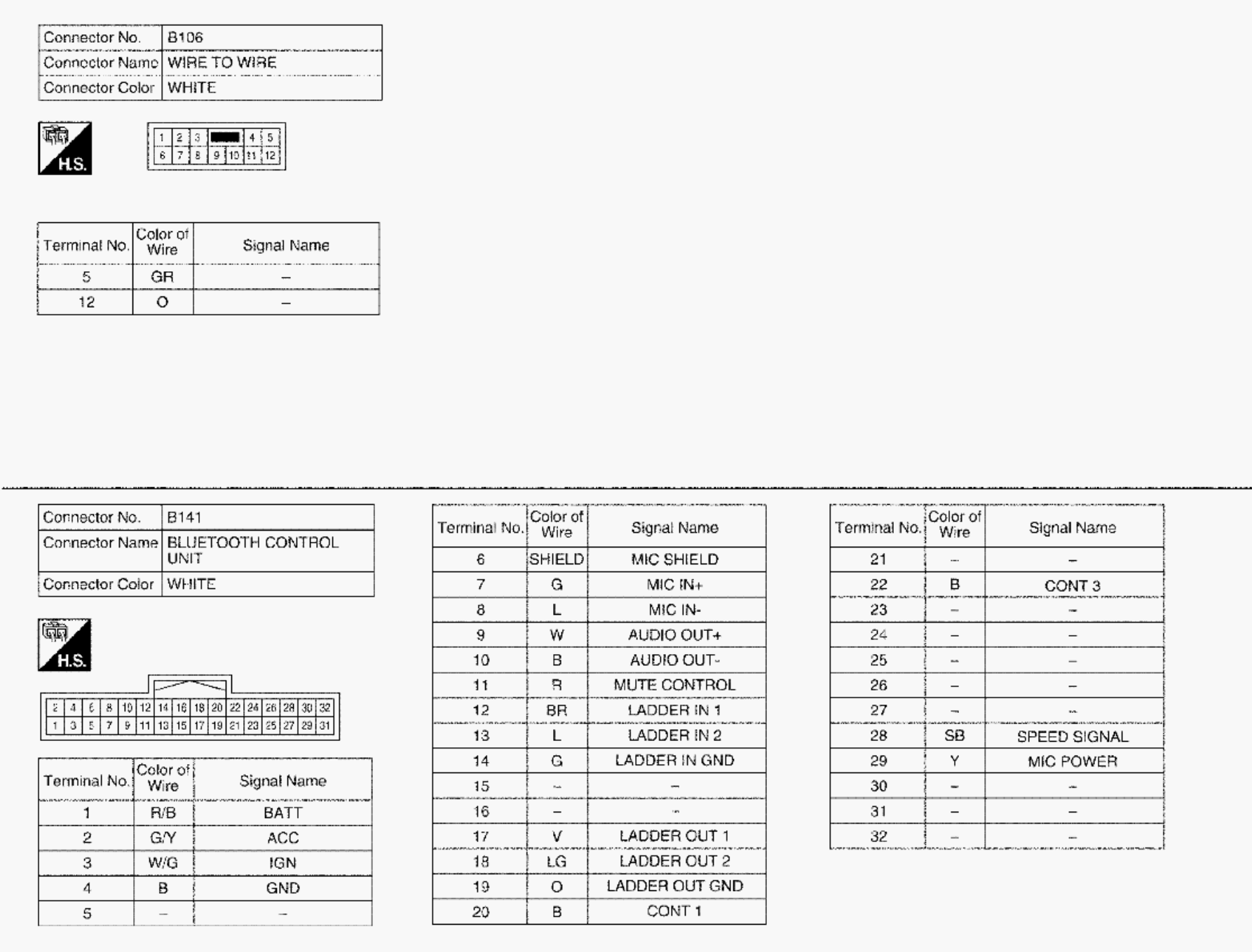

Fig 12: Mid Audio System - Wiring Diagram [Crew Cab] (12 of 14)

Courtesy of SUZUKI OF AMERICA CORP.

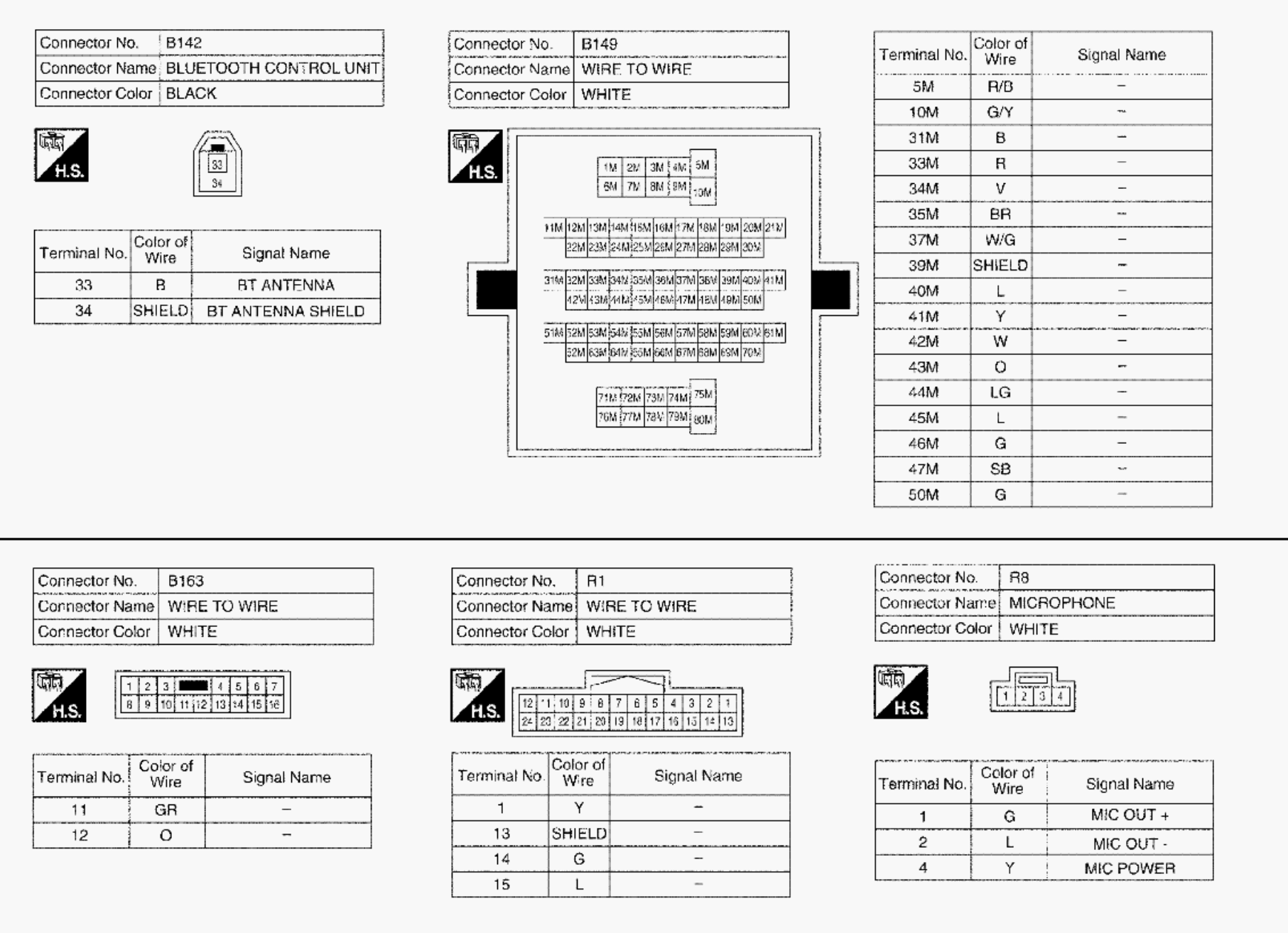

Fig 13: Mid Audio System - Wiring Diagram [Crew Cab] (13 of 14)

Courtesy of SUZUKI OF AMERICA CORP.

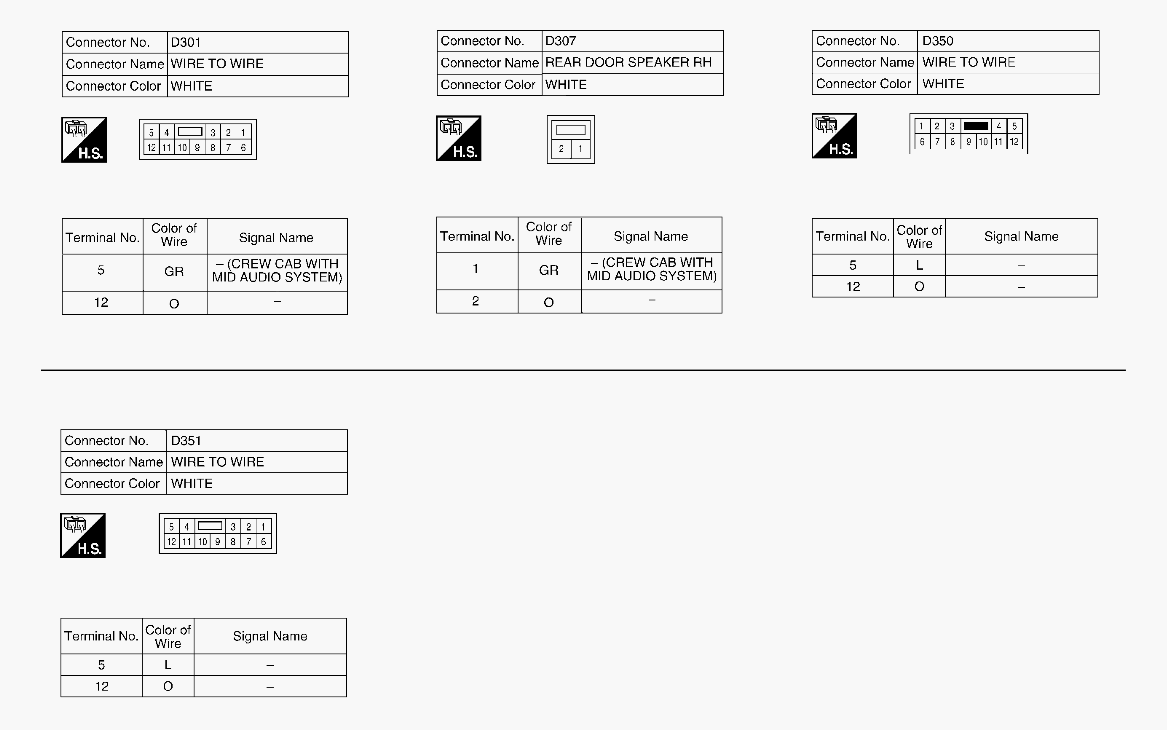

Fig 14: Mid Audio System - Wiring Diagram [Crew Cab] (14 of 14)

Courtesy of SUZUKI OF AMERICA CORP.
