Meter: Wiring Diagram

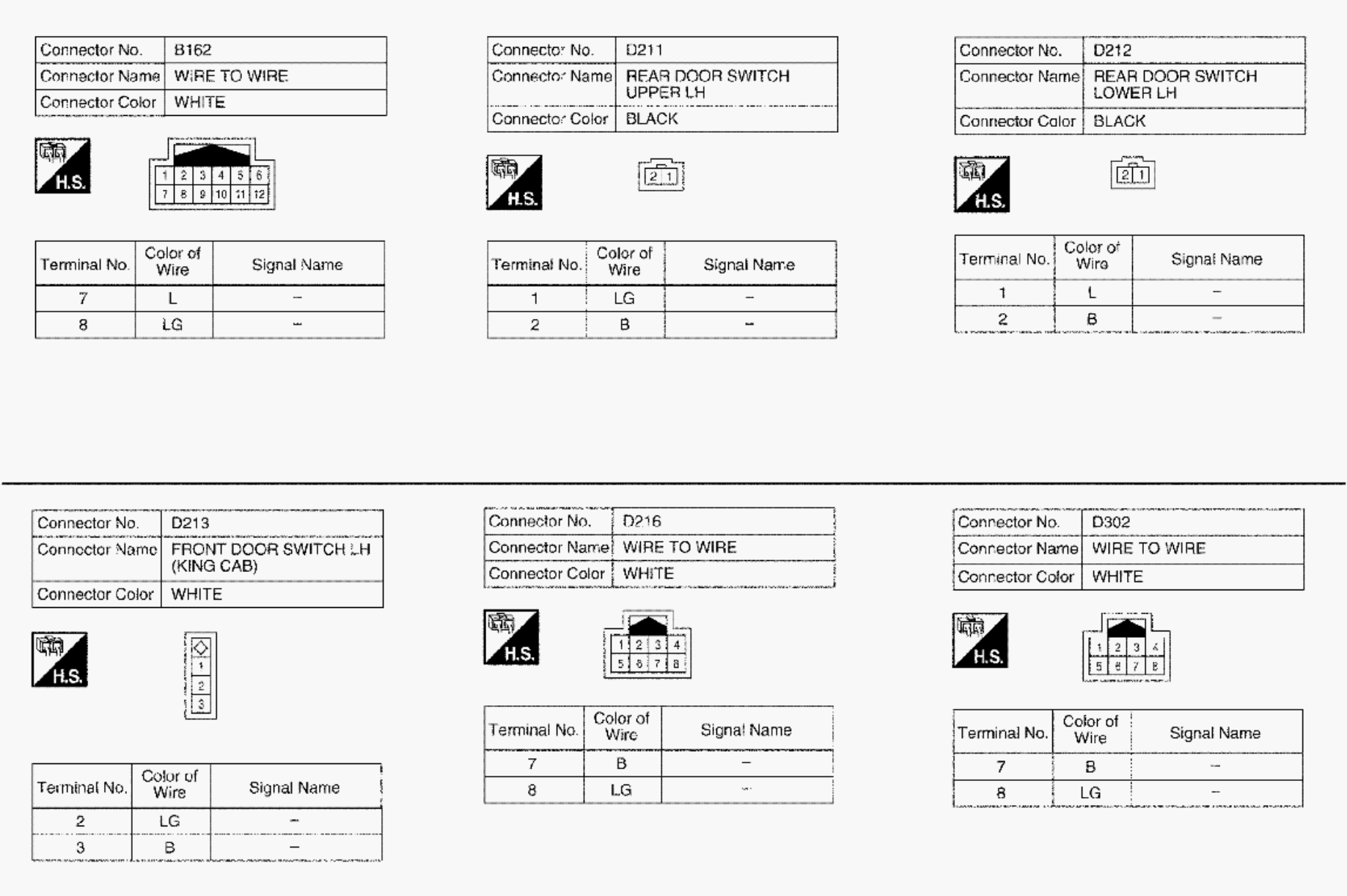

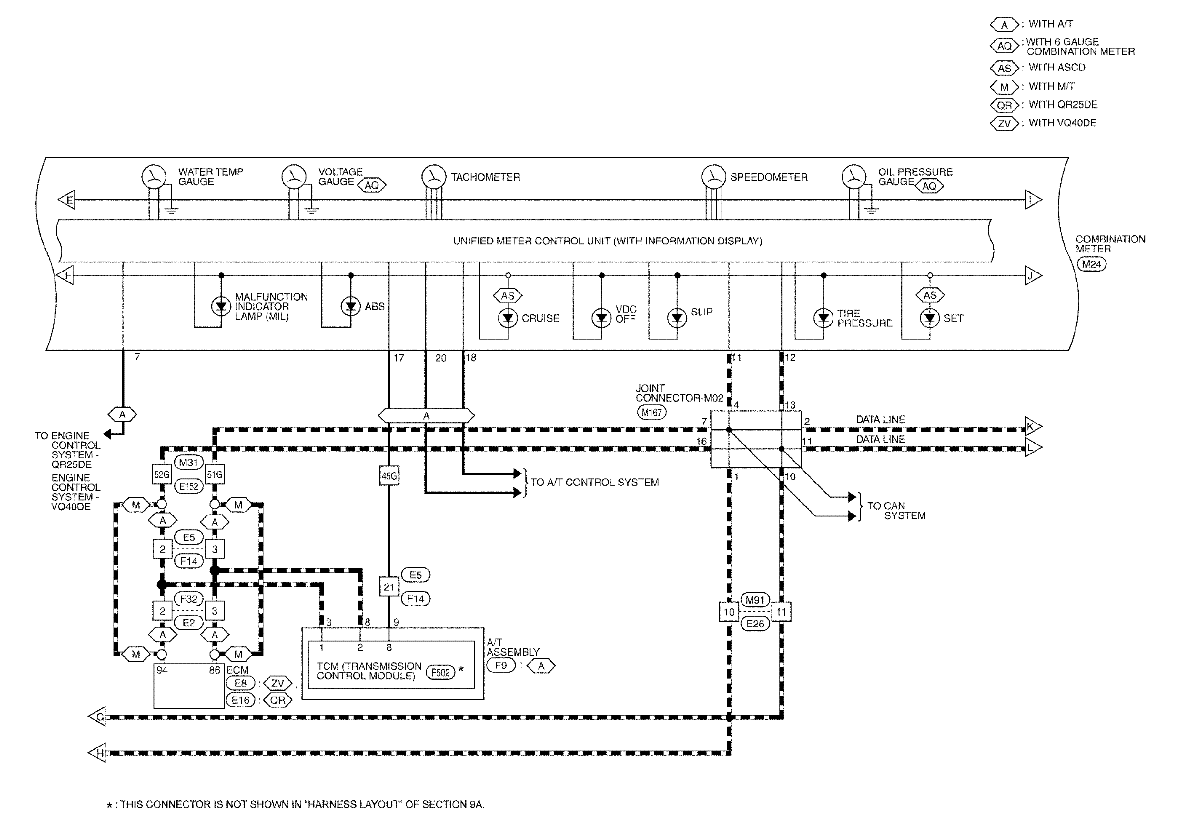

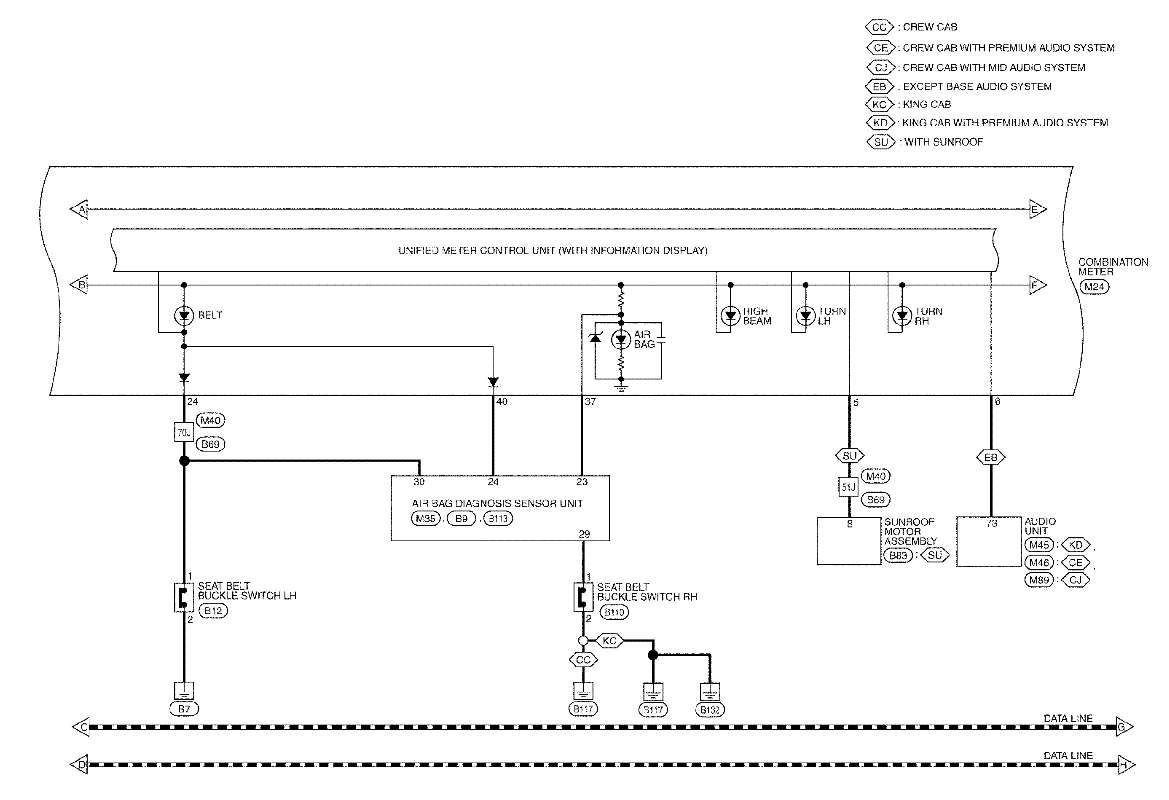

Fig 1: Combination Meter - Wiring Diagram (1 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

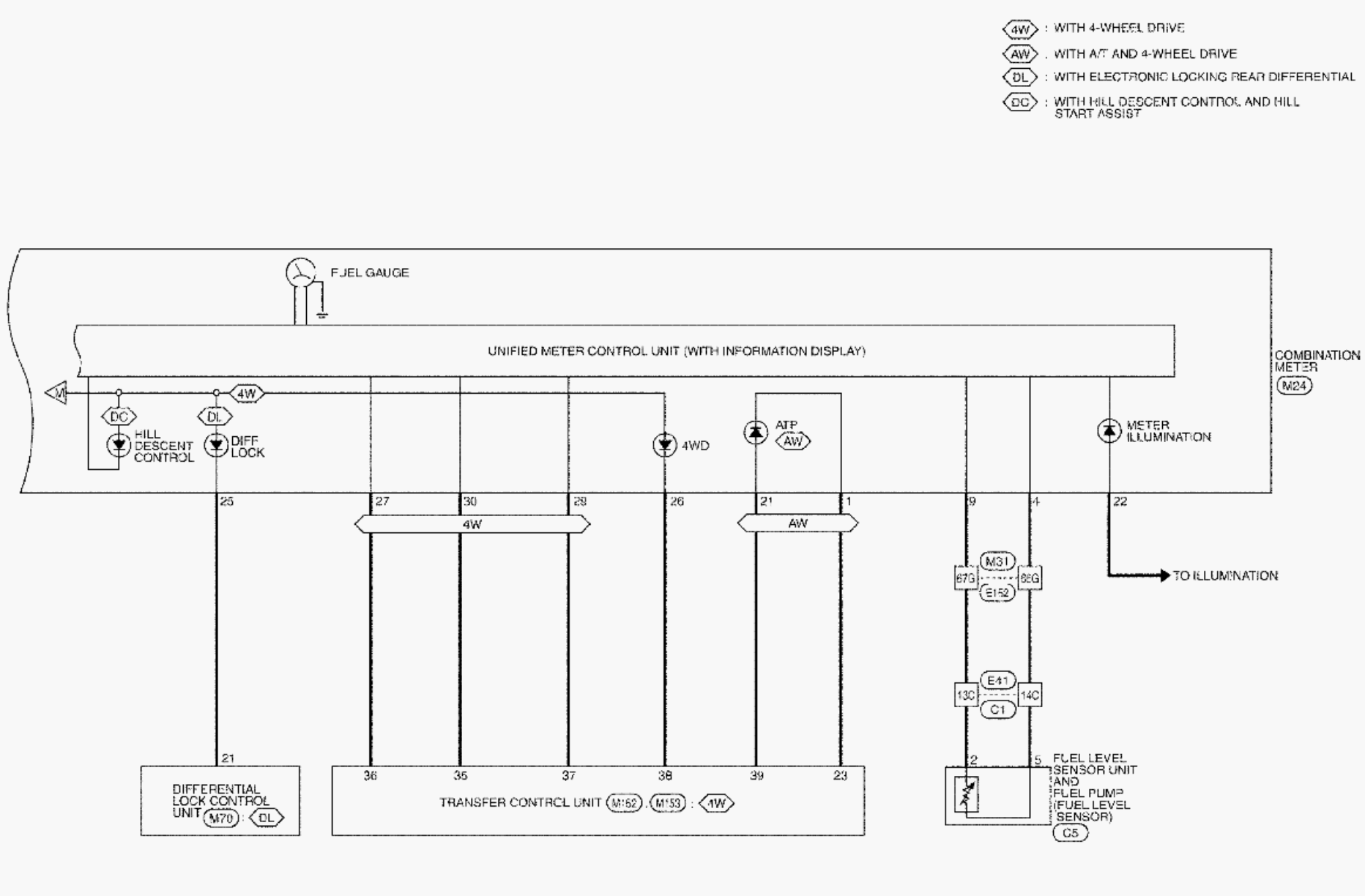

Fig 2: Combination Meter - Wiring Diagram (2 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

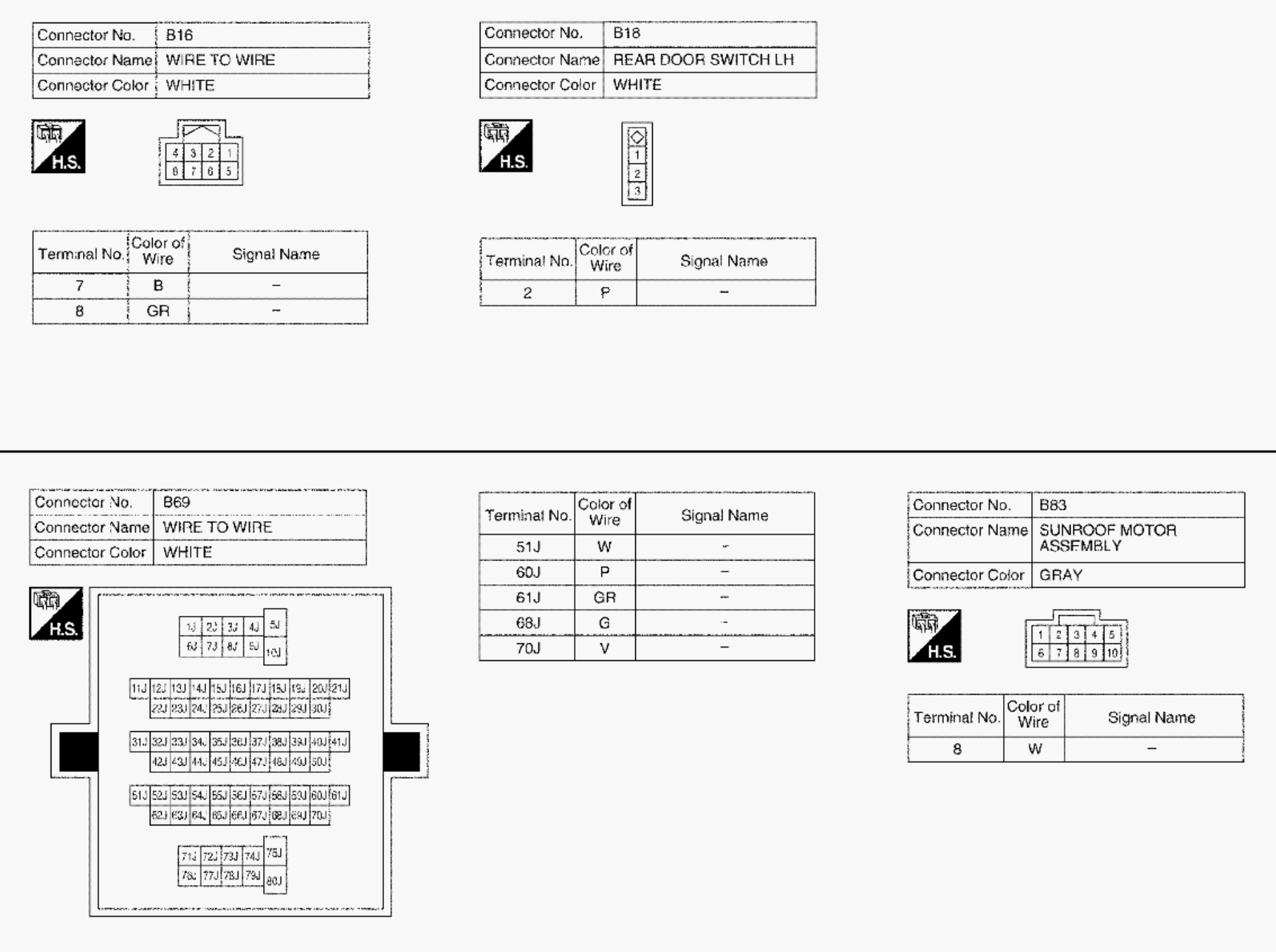

Fig 3: Combination Meter - Wiring Diagram (3 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

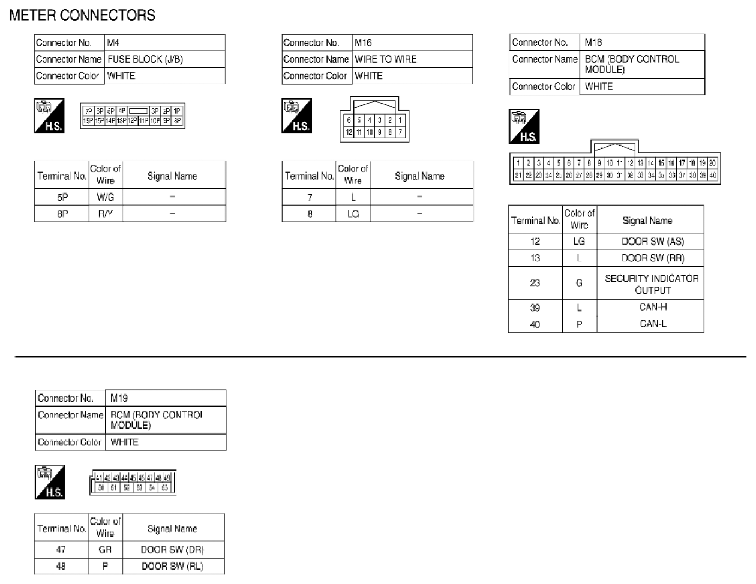

Fig 4: Combination Meter - Wiring Diagram (4 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

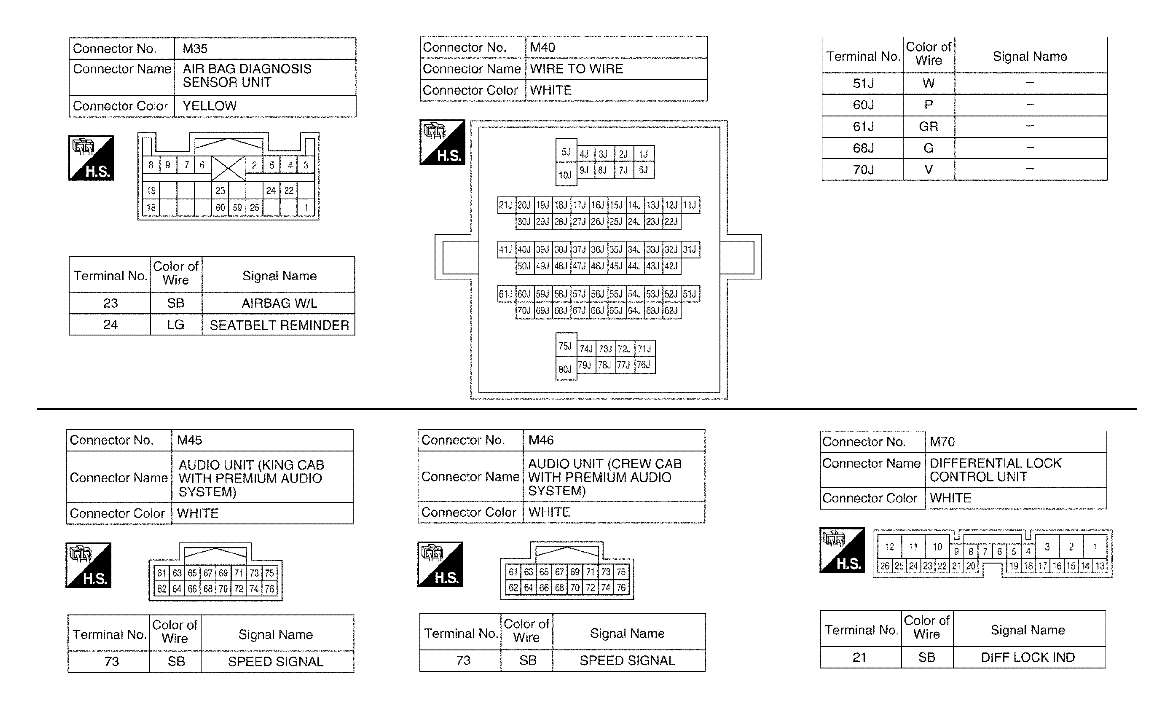

Fig 5: Combination Meter - Wiring Diagram (5 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

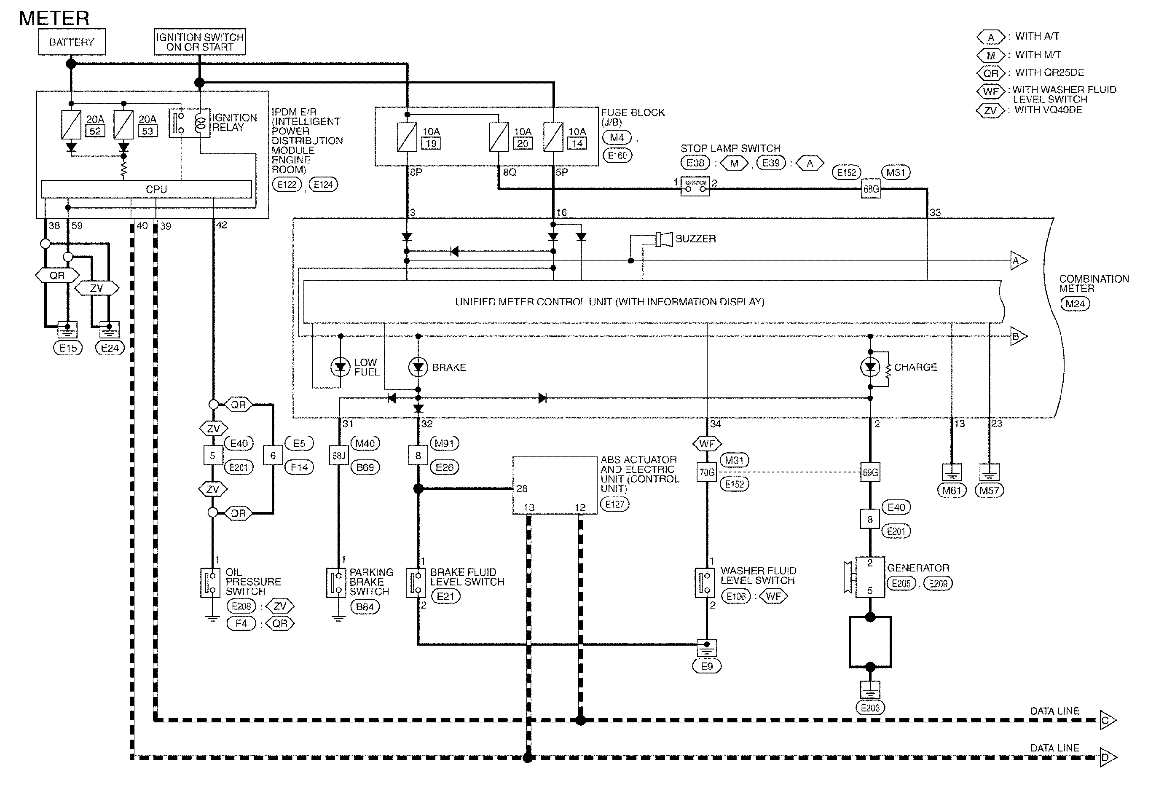

Fig 6: Combination Meter - Wiring Diagram (6 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

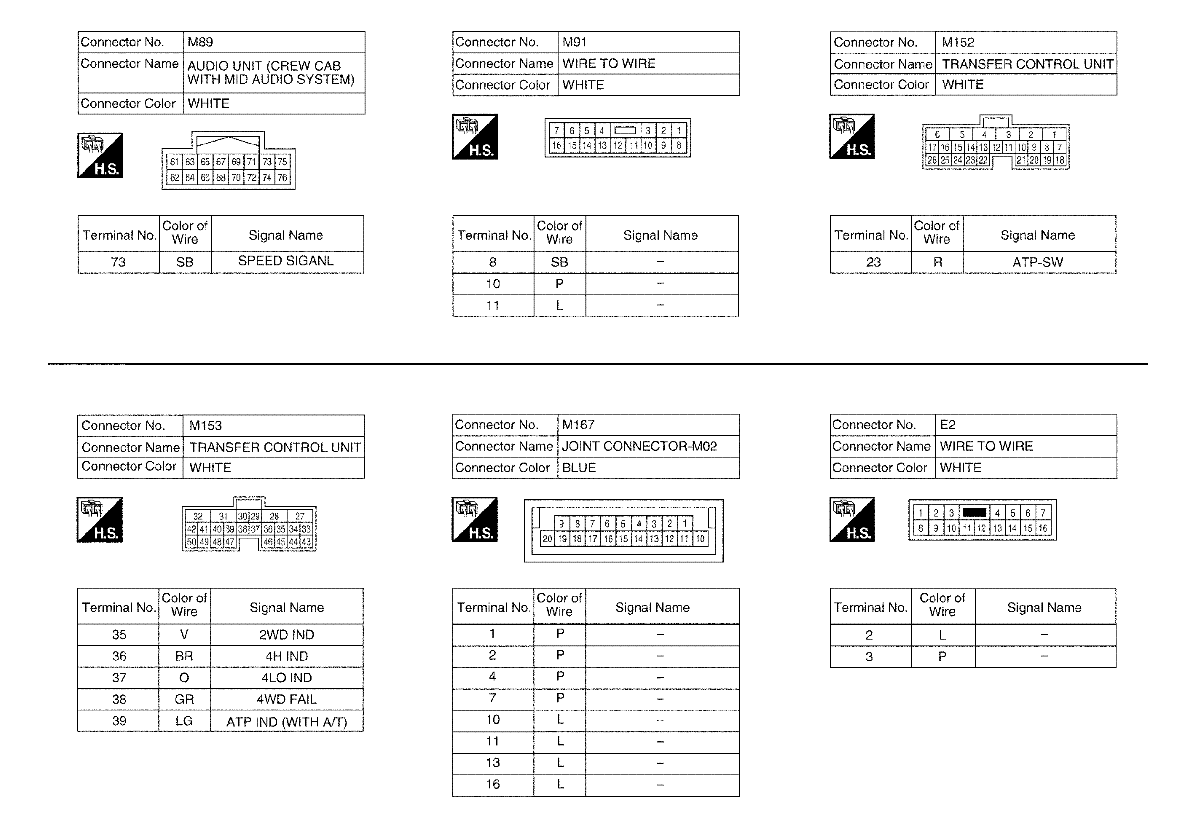

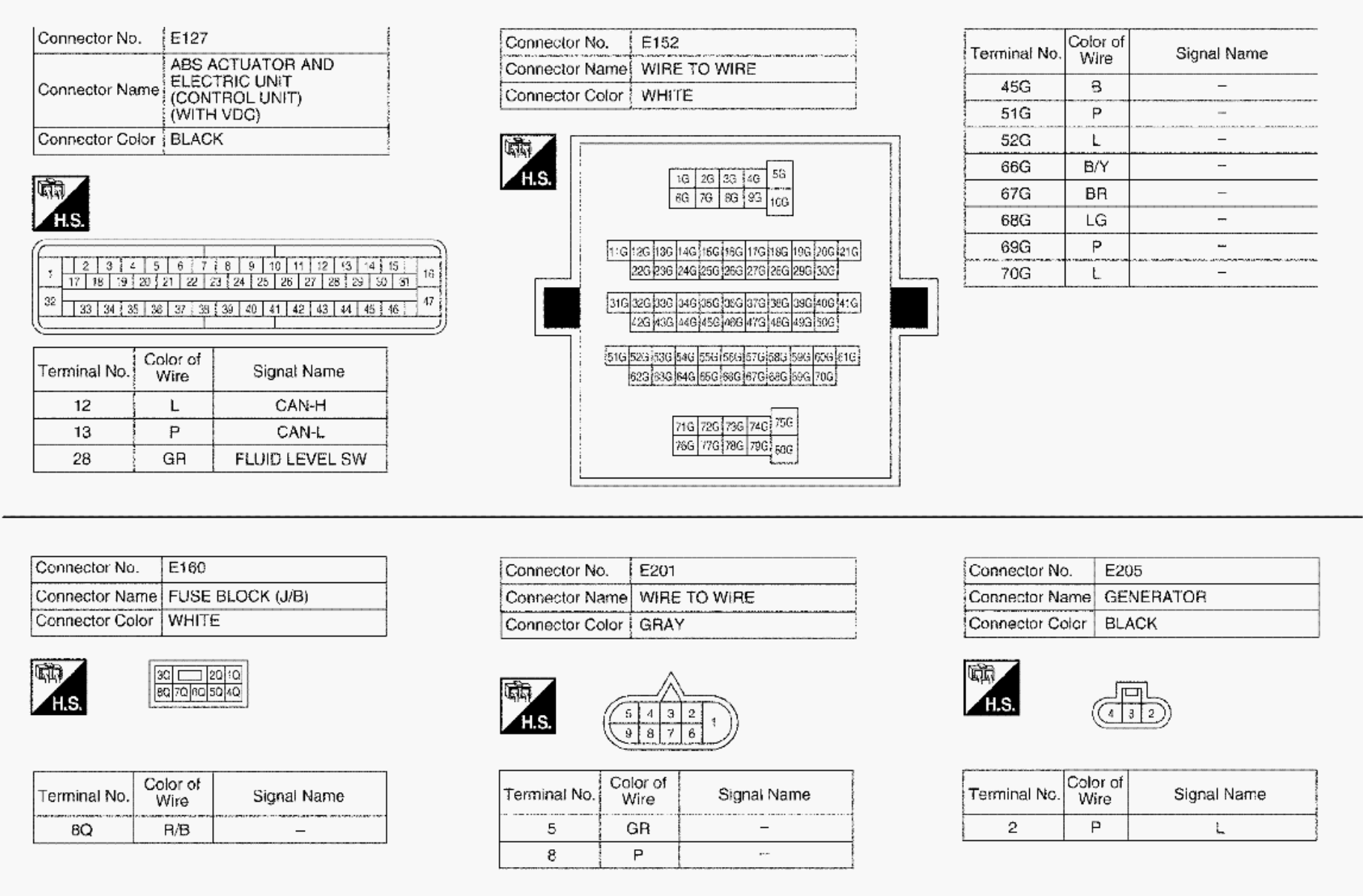

Fig 7: Combination Meter - Wiring Diagram (7 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

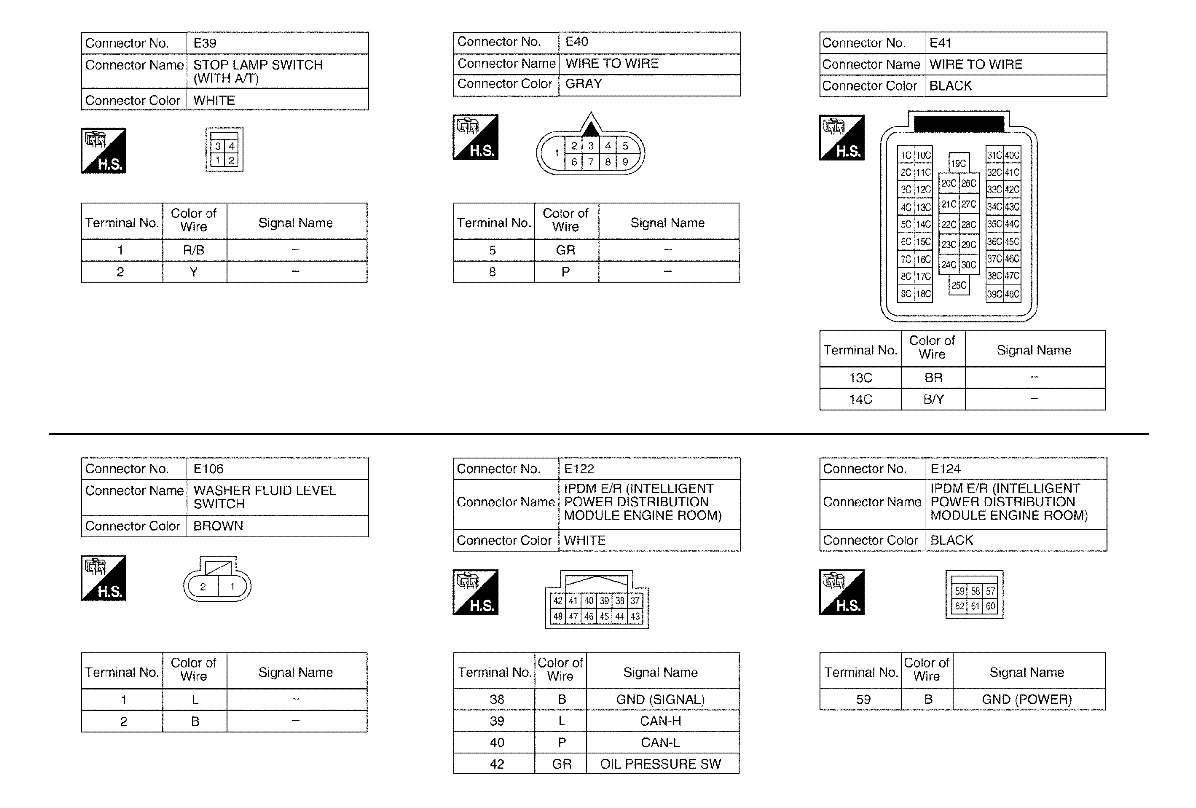

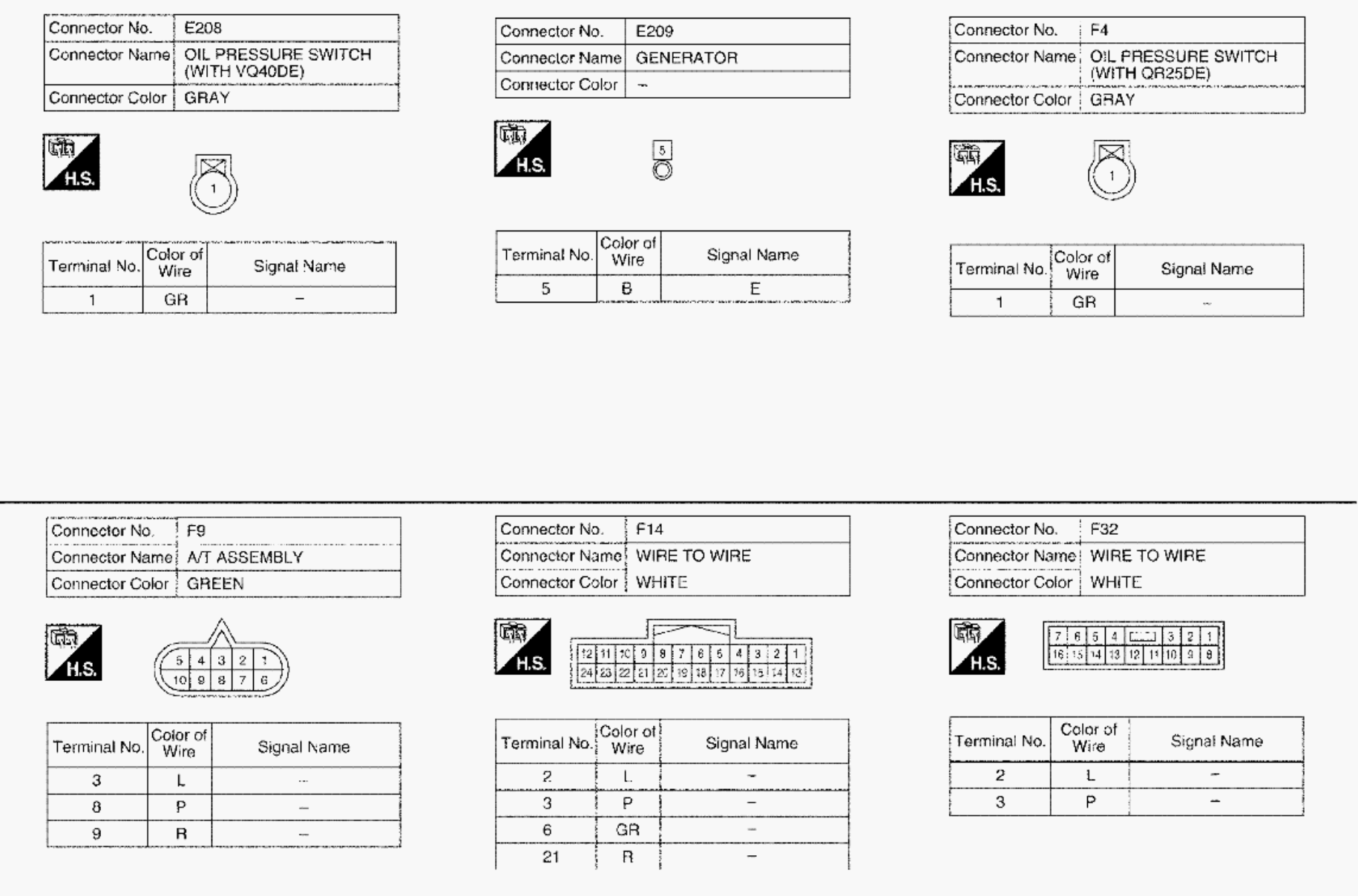

Fig 8: Combination Meter - Wiring Diagram (8 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

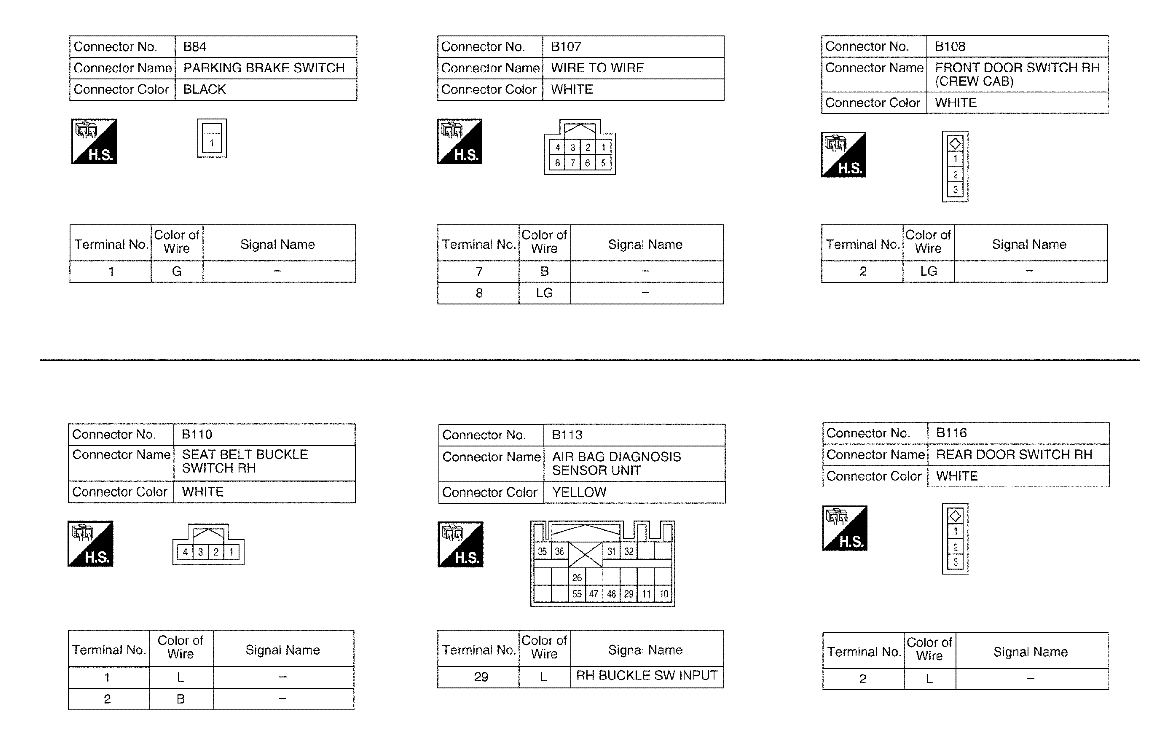

Fig 9: Combination Meter - Wiring Diagram (9 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

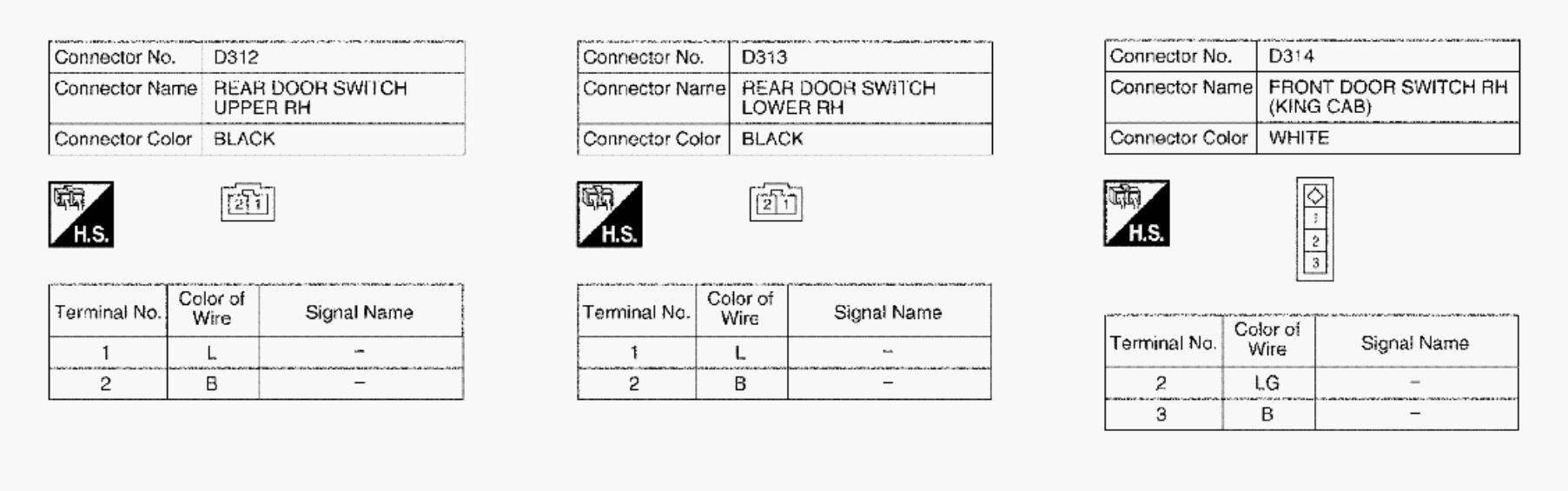

Fig 10: Combination Meter - Wiring Diagram (10 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

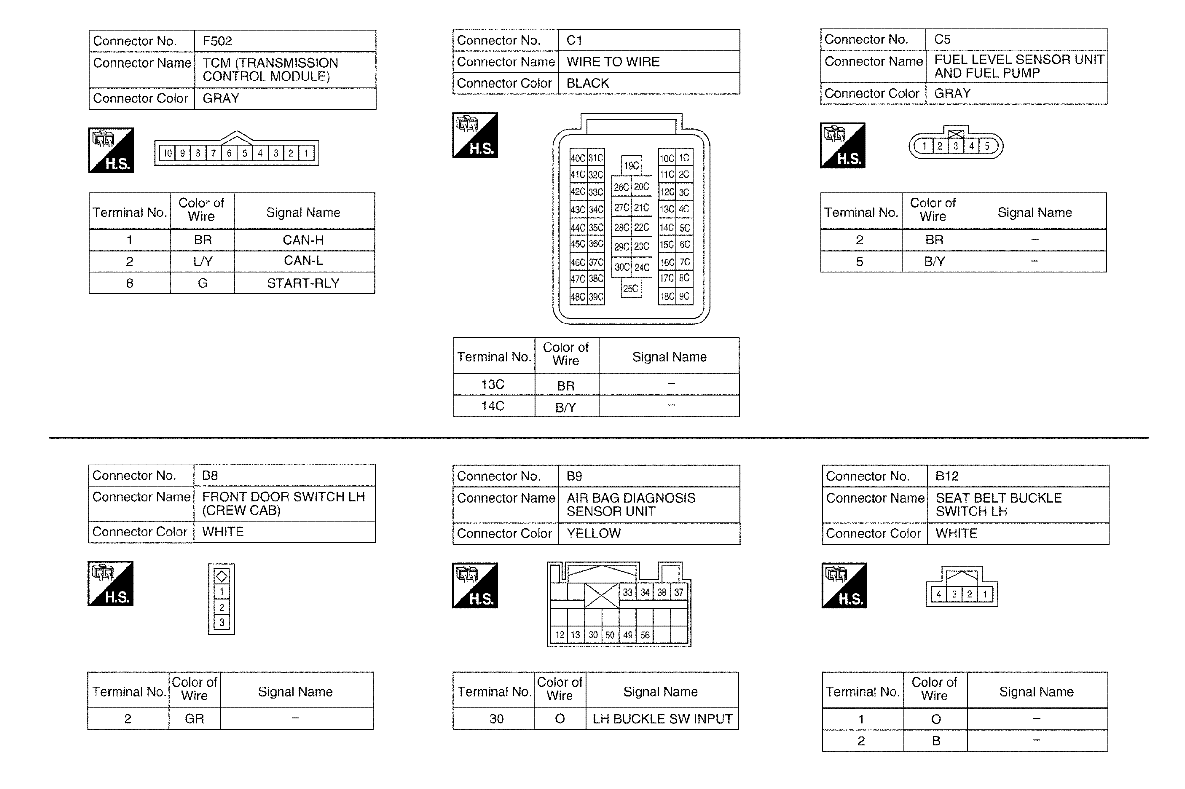

Fig 11: Combination Meter - Wiring Diagram (11 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

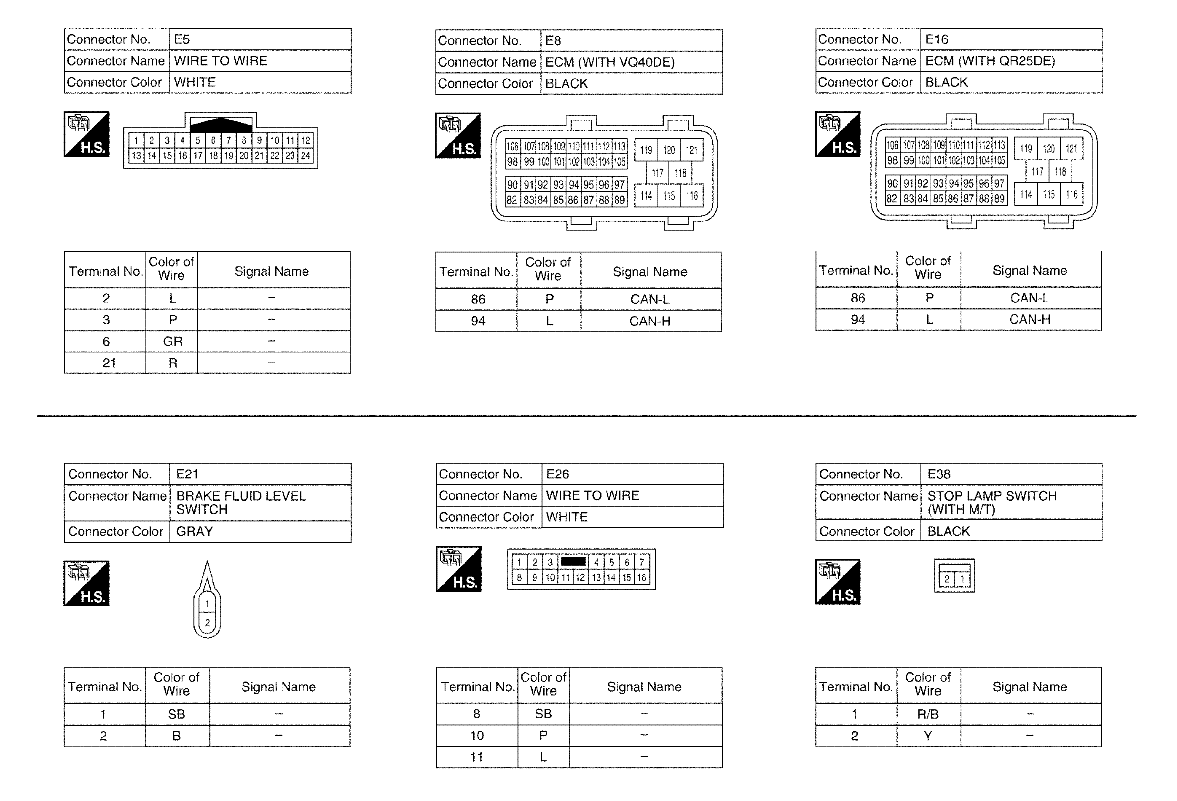

Fig 12: Combination Meter - Wiring Diagram (12 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

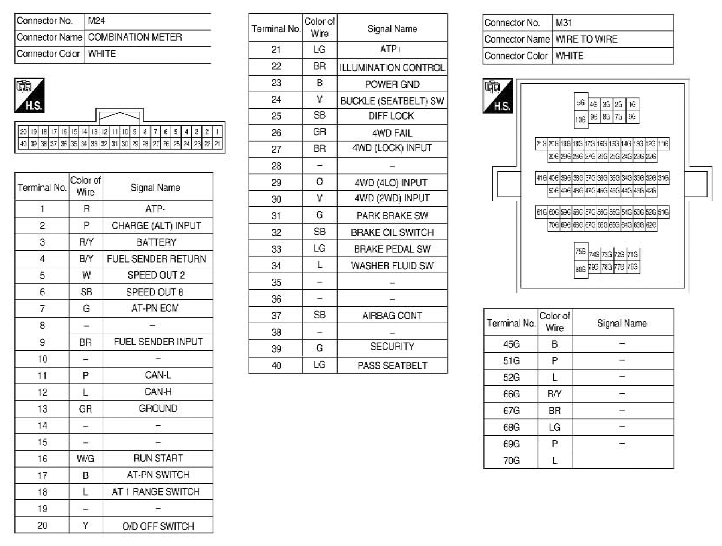

Fig 13: Combination Meter - Wiring Diagram (13 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

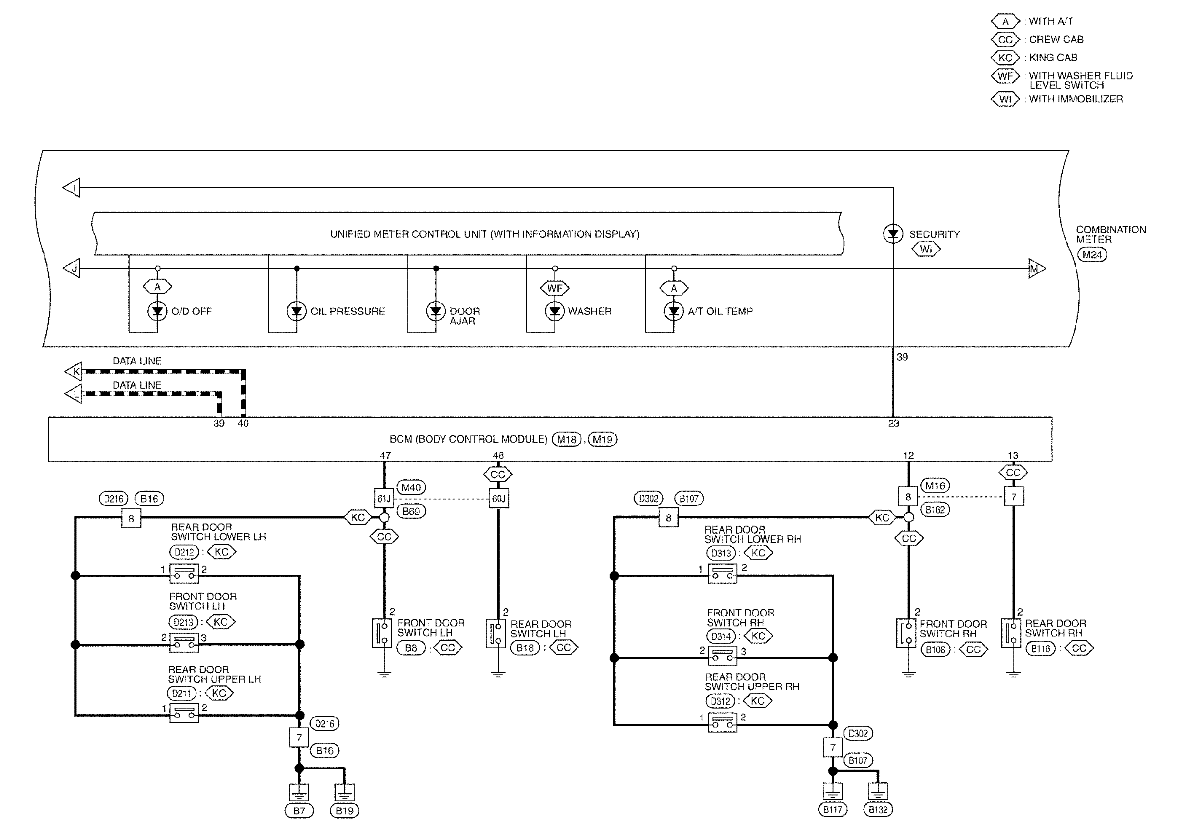

Fig 14: Combination Meter - Wiring Diagram (14 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 15: Combination Meter - Wiring Diagram (15 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 16: Combination Meter - Wiring Diagram (16 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 17: Combination Meter - Wiring Diagram (17 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 18: Combination Meter - Wiring Diagram (18 Of 18)

Courtesy of SUZUKI OF AMERICA CORP.
