Interior Room Lamp Control System: Wiring Diagram [with Power Door Locks]

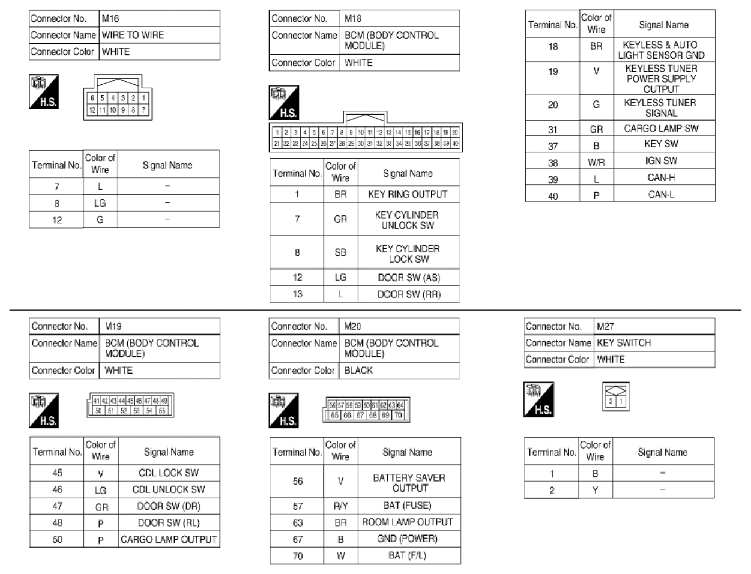

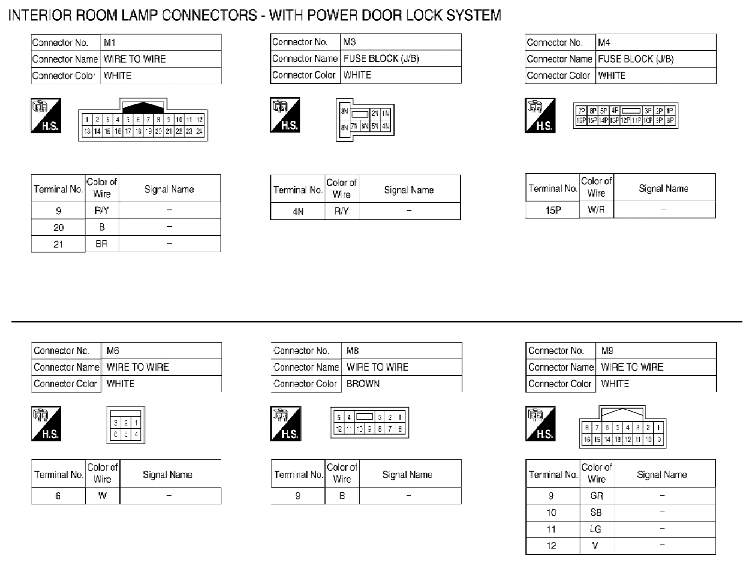

Fig 1: Interior Room Lamp Control System - Wiring Diagram [With Power Door Locks] (1 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

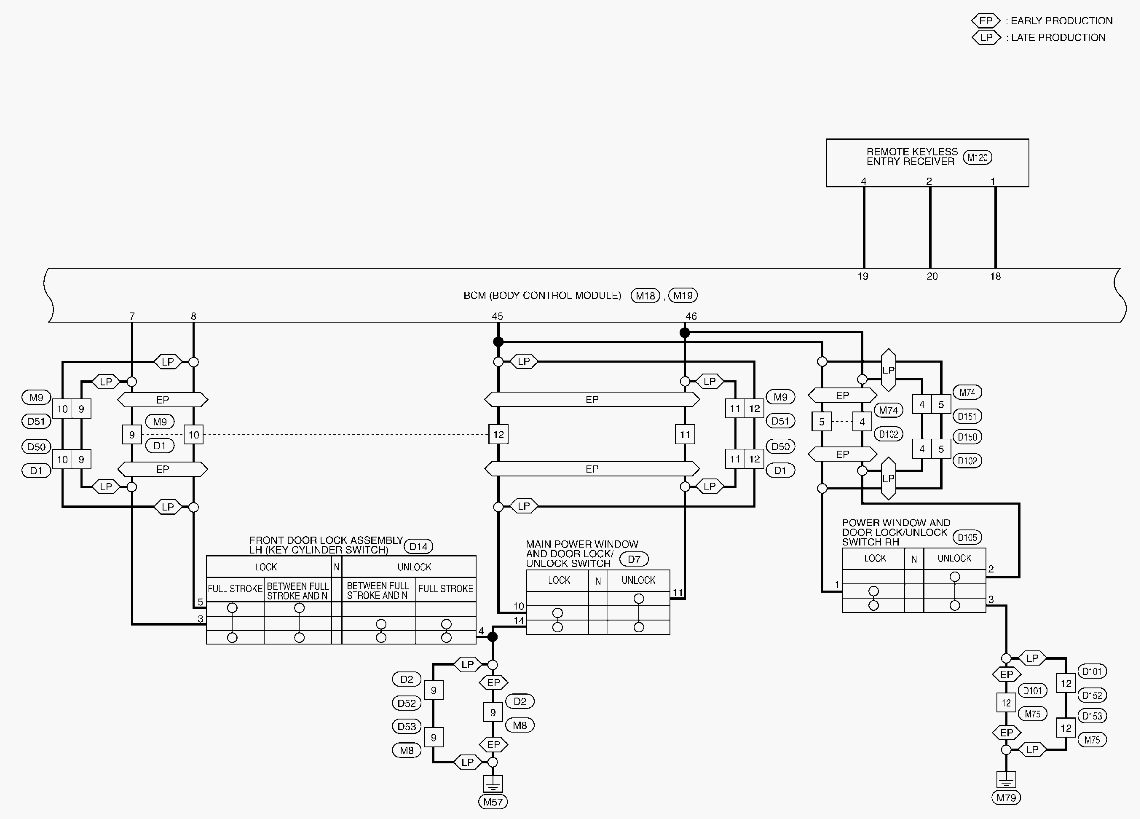

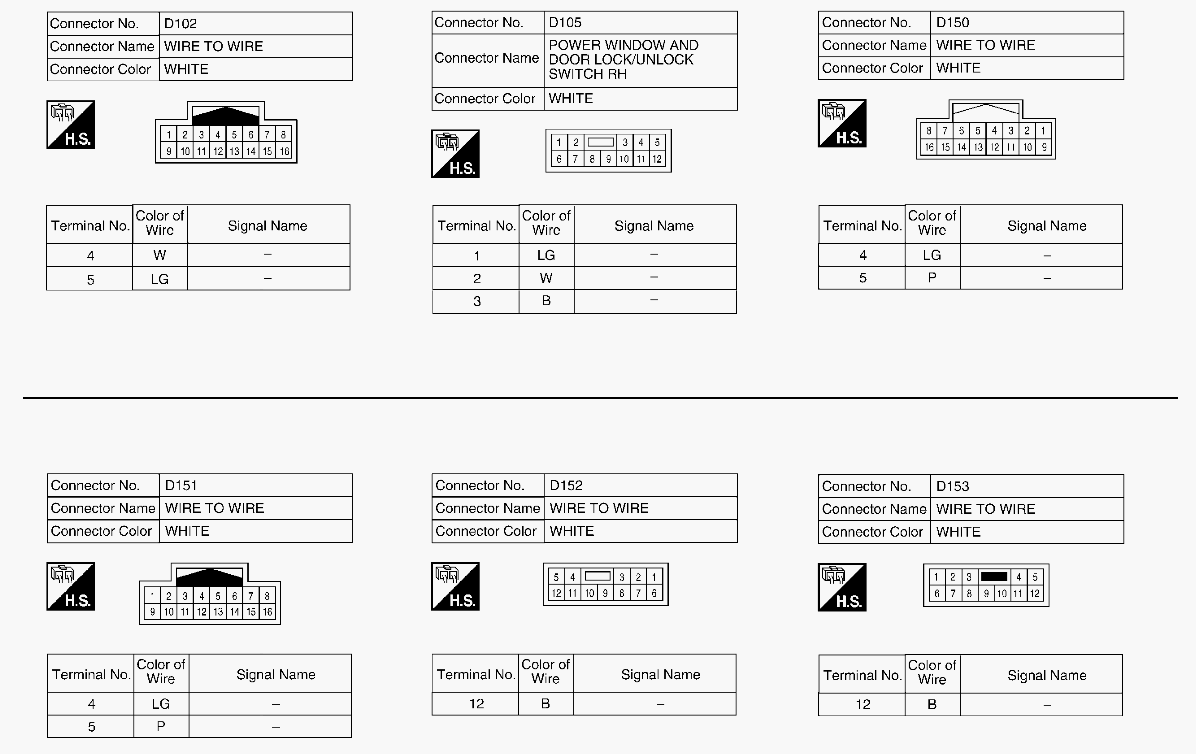

Fig 2: Interior Room Lamp Control System - Wiring Diagram [With Power Door Locks] (2 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

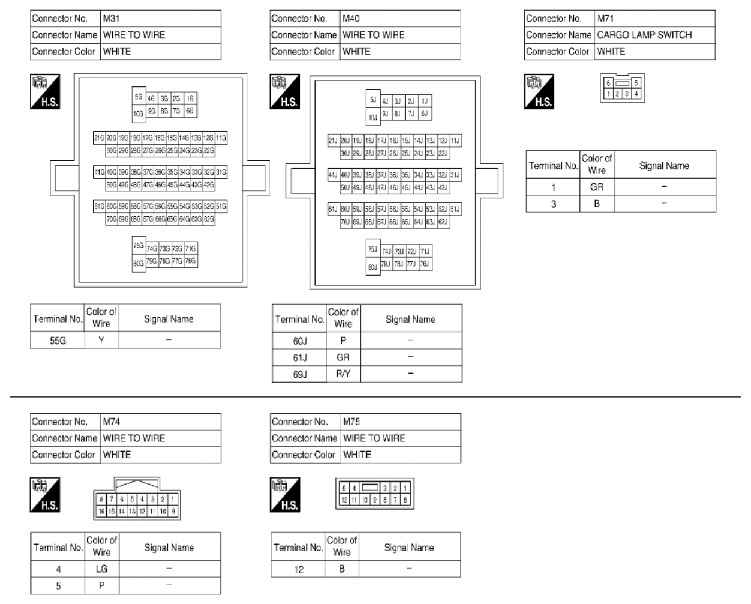

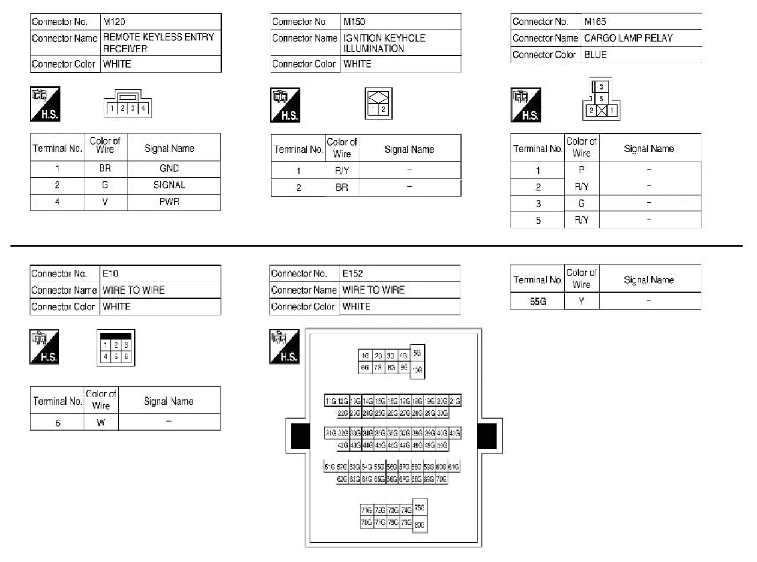

Fig 3: Interior Room Lamp Control System - Wiring Diagram [With Power Door Locks] (3 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

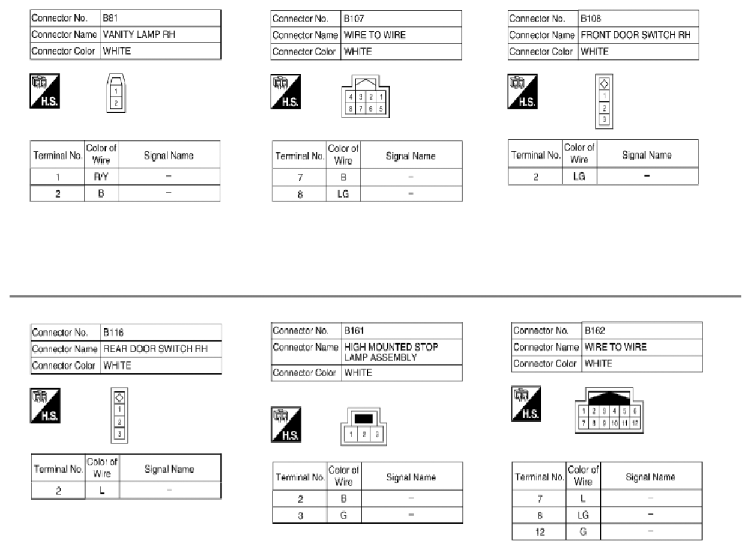

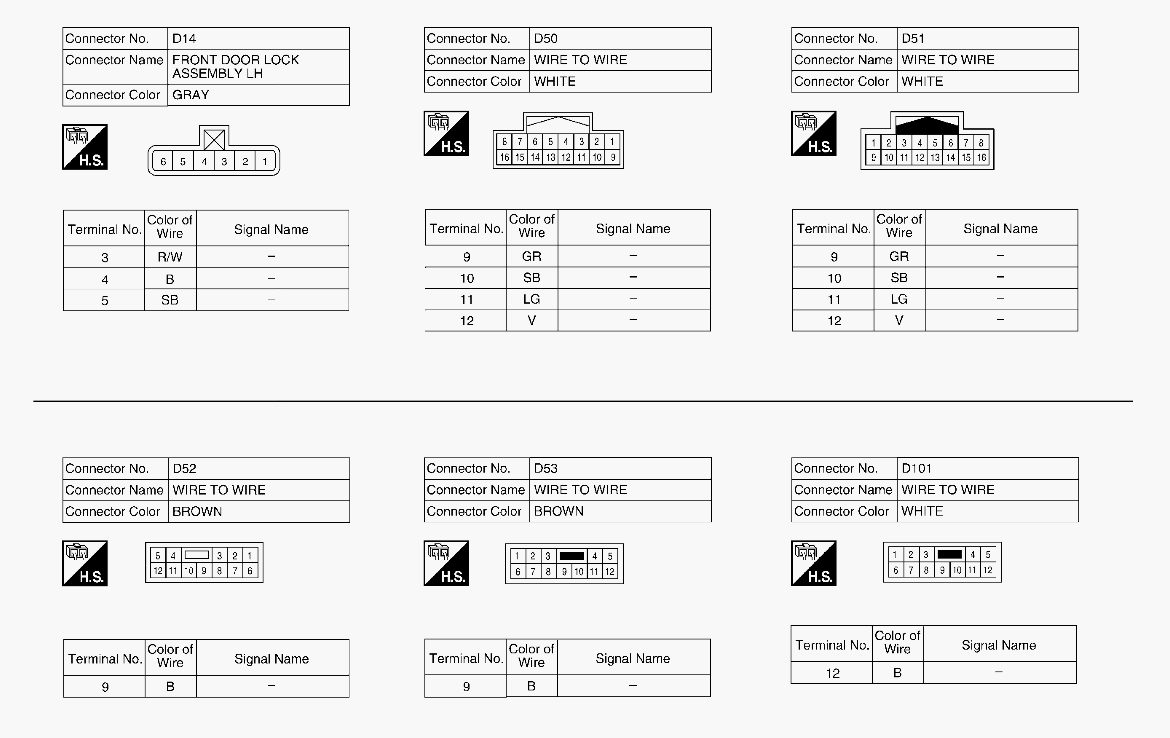

Fig 4: Interior Room Lamp Control System - Wiring Diagram [With Power Door Locks] (4 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

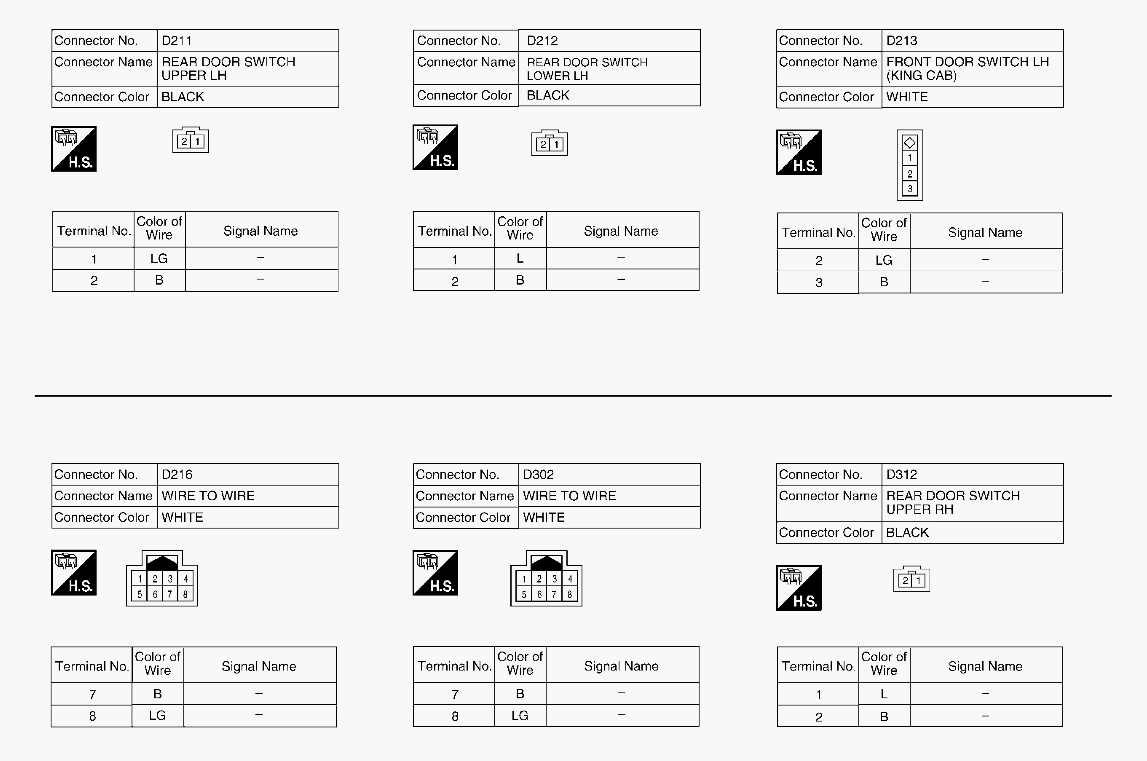

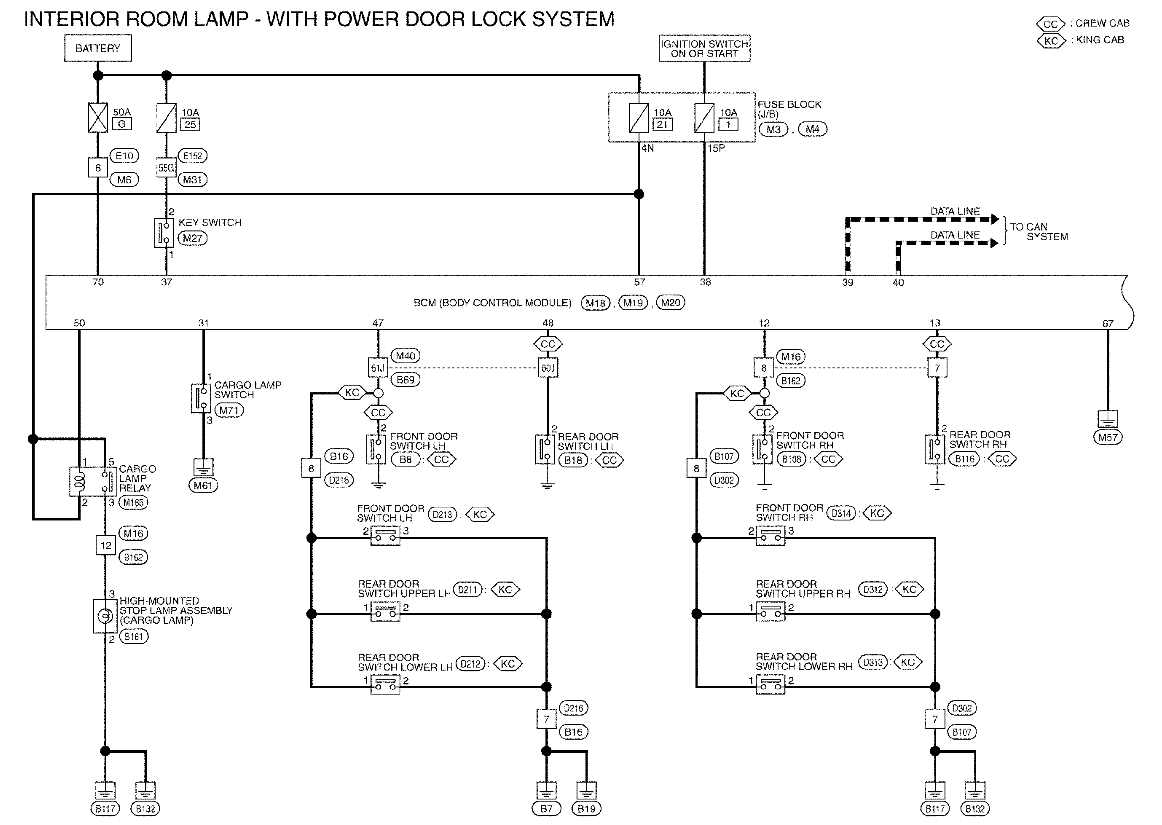

Fig 5: Interior Room Lamp Control System - Wiring Diagram [With Power Door Locks] (5 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

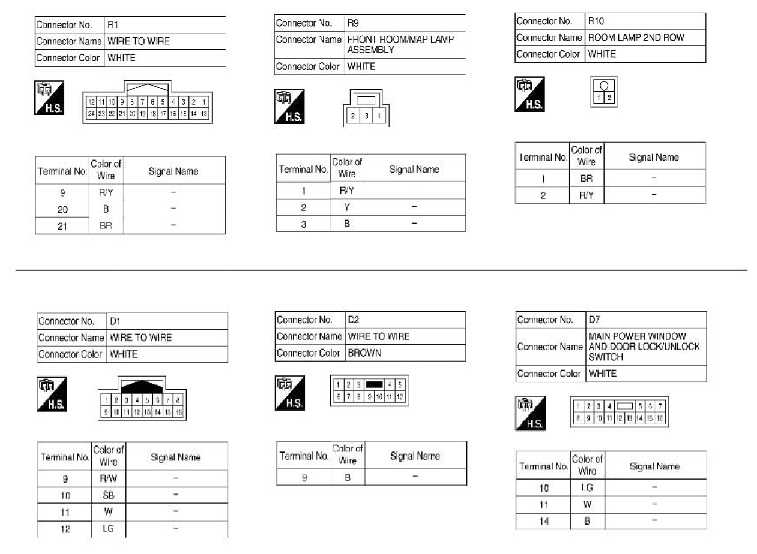

Fig 6: Interior Room Lamp Control System - Wiring Diagram [With Power Door Locks] (6 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

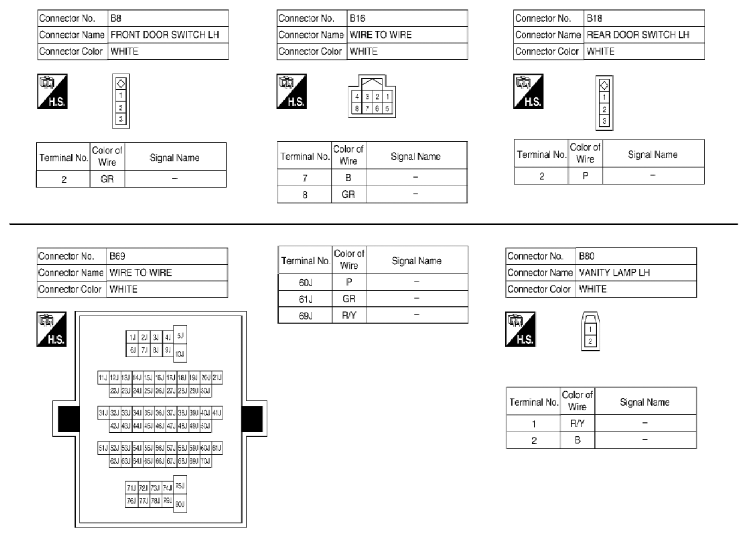

Fig 7: Interior Room Lamp Control System - Wiring Diagram [With Power Door Locks] (7 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

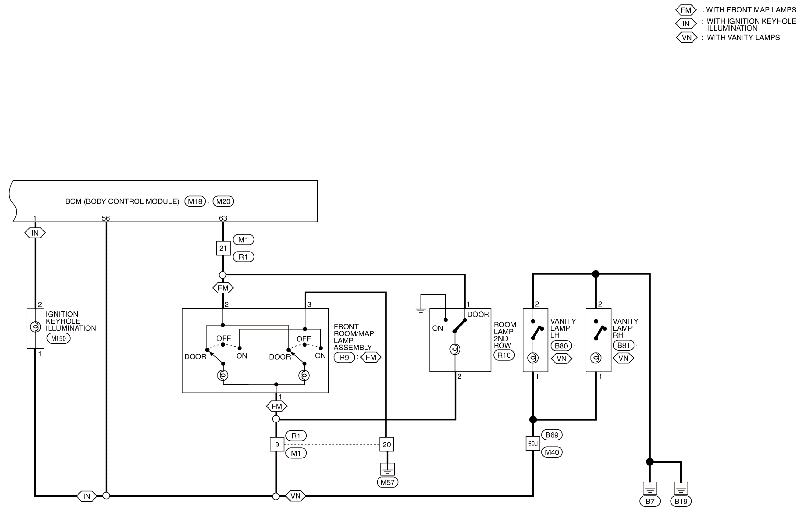

Fig 8: Interior Room Lamp Control System - Wiring Diagram [With Power Door Locks] (8 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 9: Interior Room Lamp Control System - Wiring Diagram [With Power Door Locks] (9 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 10: Interior Room Lamp Control System - Wiring Diagram [With Power Door Locks] (10 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 11: Interior Room Lamp Control System - Wiring Diagram [With Power Door Locks] (11 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 12: Interior Room Lamp Control System - Wiring Diagram [With Power Door Locks] (12 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 13: Interior Room Lamp Control System - Wiring Diagram [With Power Door Locks] (13 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 14: Interior Room Lamp Control System - Wiring Diagram [With Power Door Locks] (14 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.
