Inside Mirror: Wiring Diagram [with Homelink Universal Transceiver]

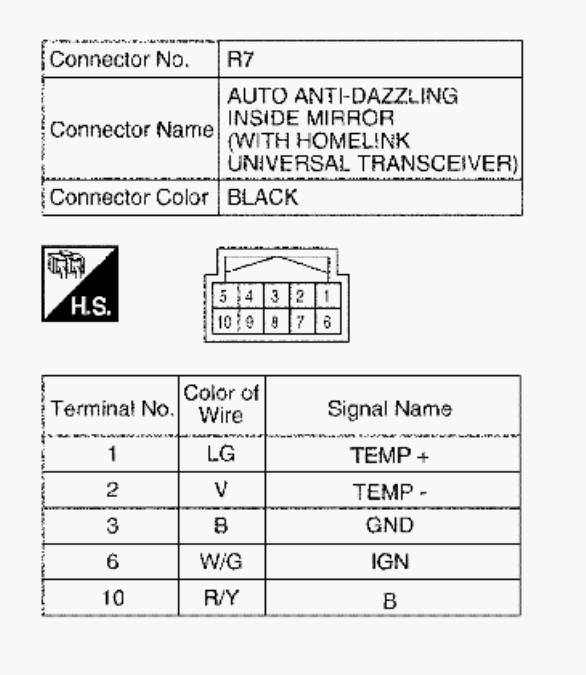

Fig 1: Inside Mirror - Wiring Diagram [With Homelink Universal Transceiver] (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

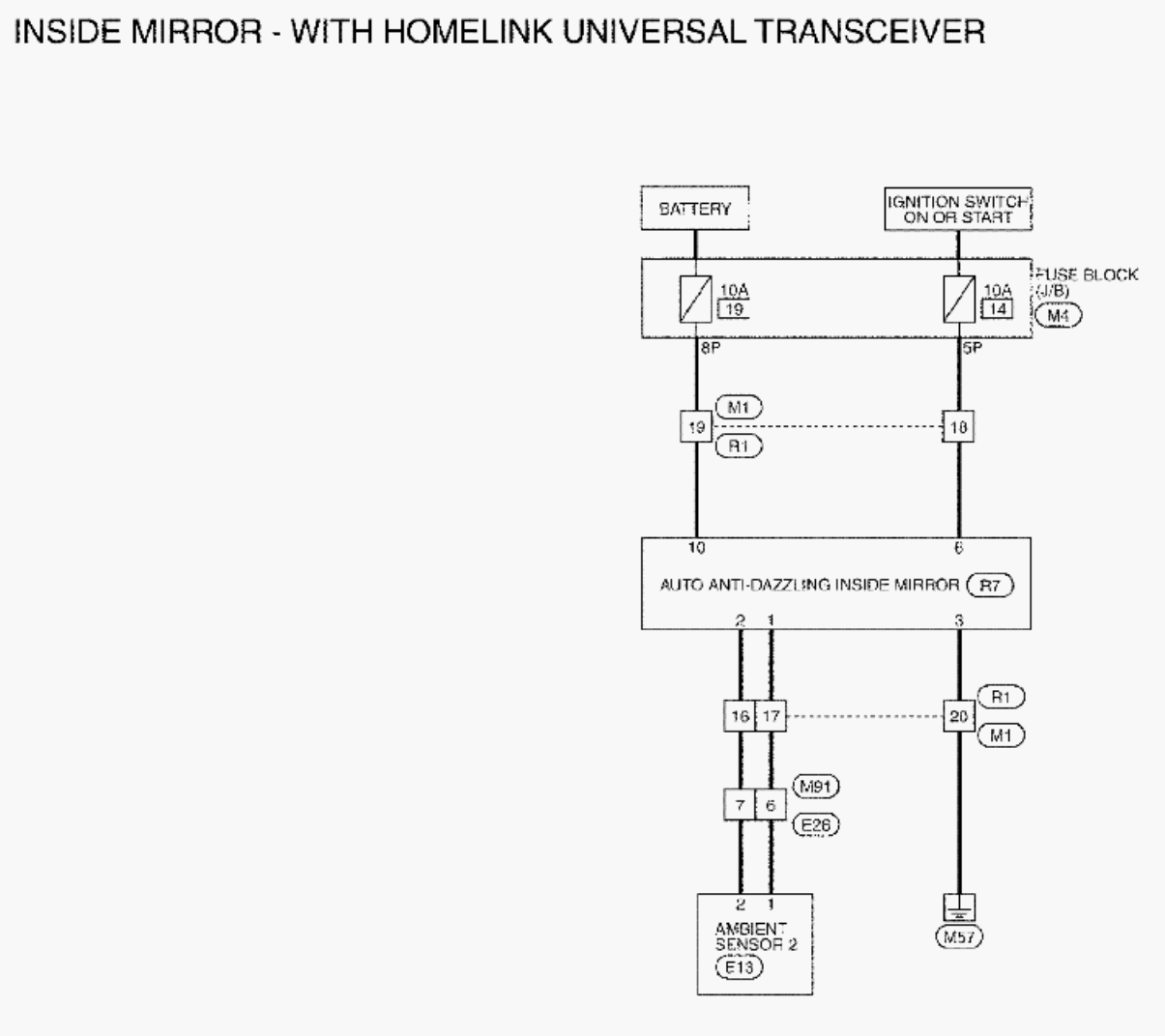

Fig 2: Inside Mirror - Wiring Diagram [With Homelink Universal Transceiver] (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

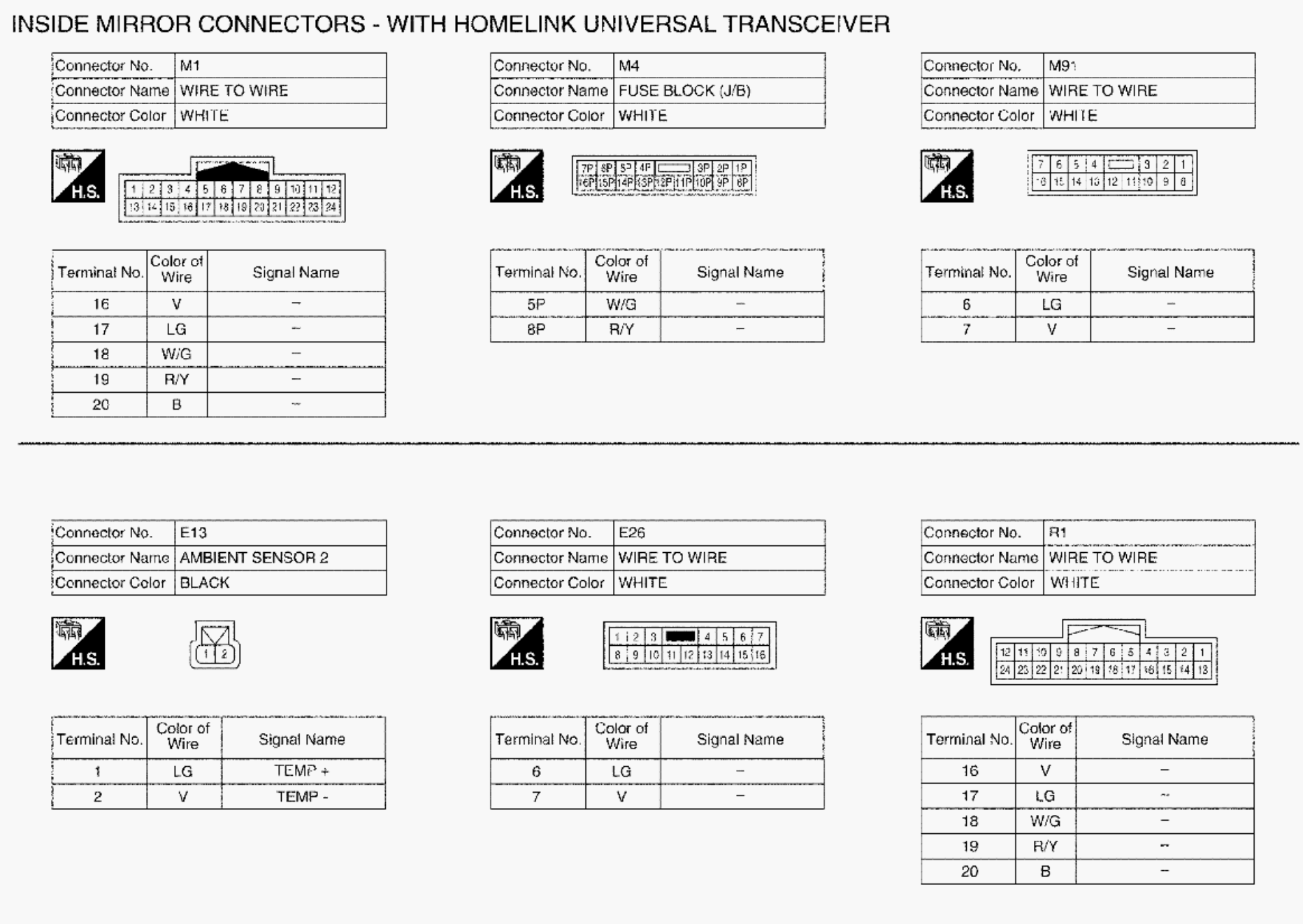

Fig 3: Inside Mirror - Wiring Diagram [With Homelink Universal Transceiver] (3 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
