Heated Seat: Wiring Diagram

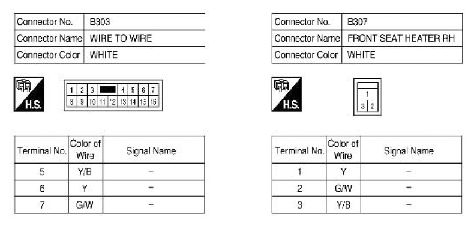

Fig 1: Heated Seat - Wiring Diagram (1 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

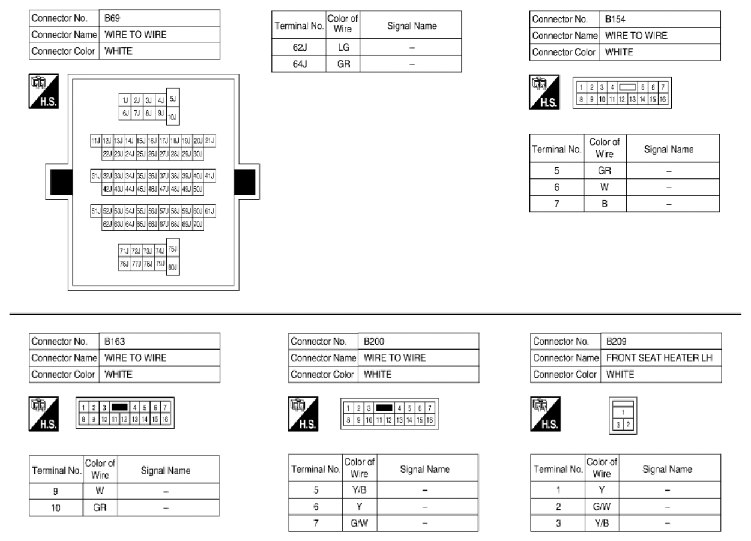

Fig 2: Heated Seat - Wiring Diagram (2 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

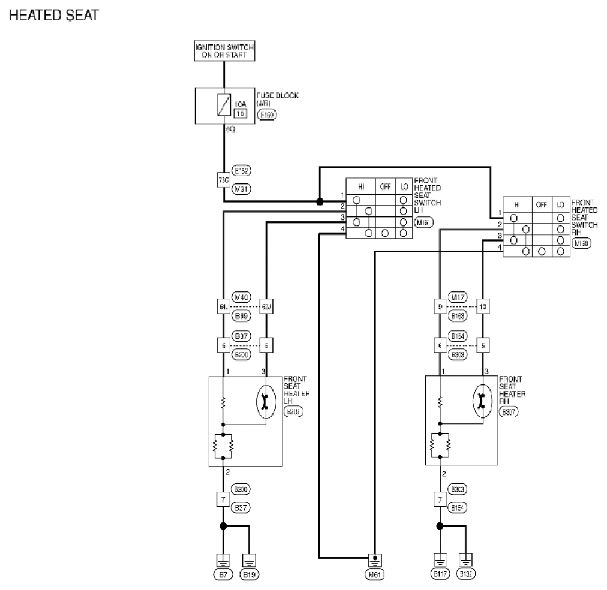

Fig 3: Heated Seat - Wiring Diagram (3 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

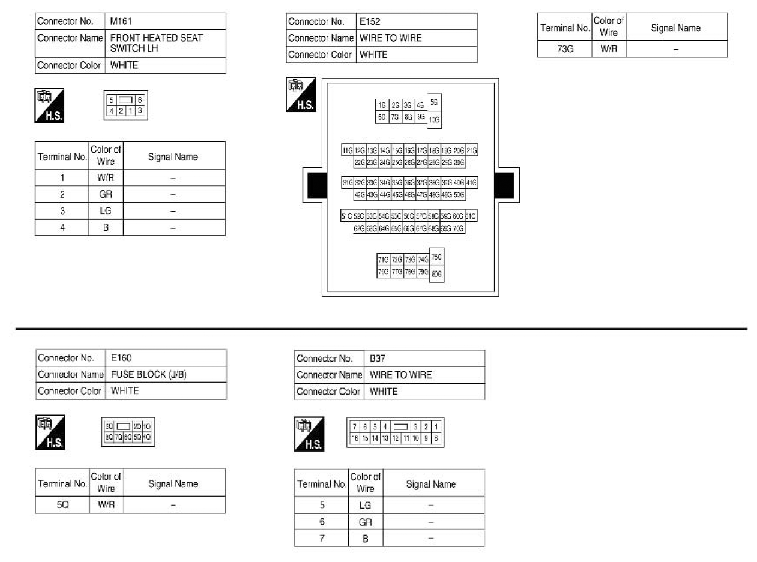

Fig 4: Heated Seat - Wiring Diagram (4 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

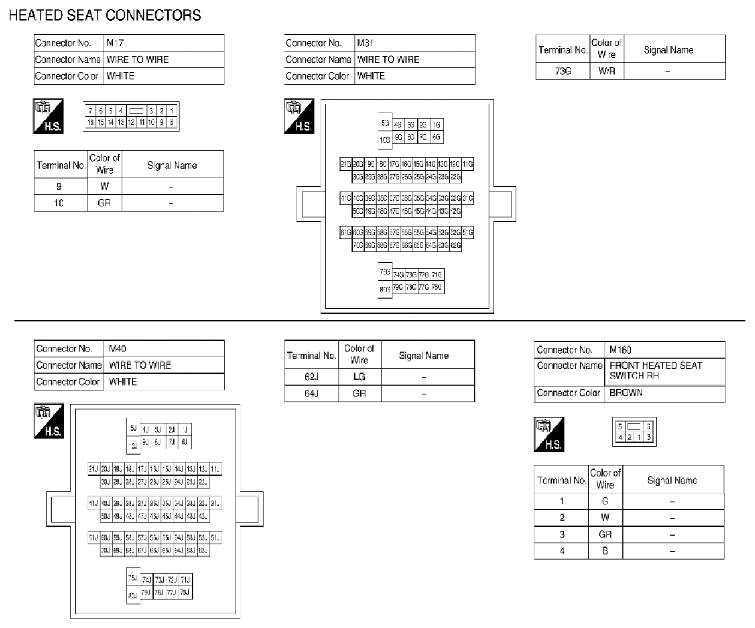

Fig 5: Heated Seat - Wiring Diagram (5 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
