Front Wiper and Washer System: Wiring Diagram

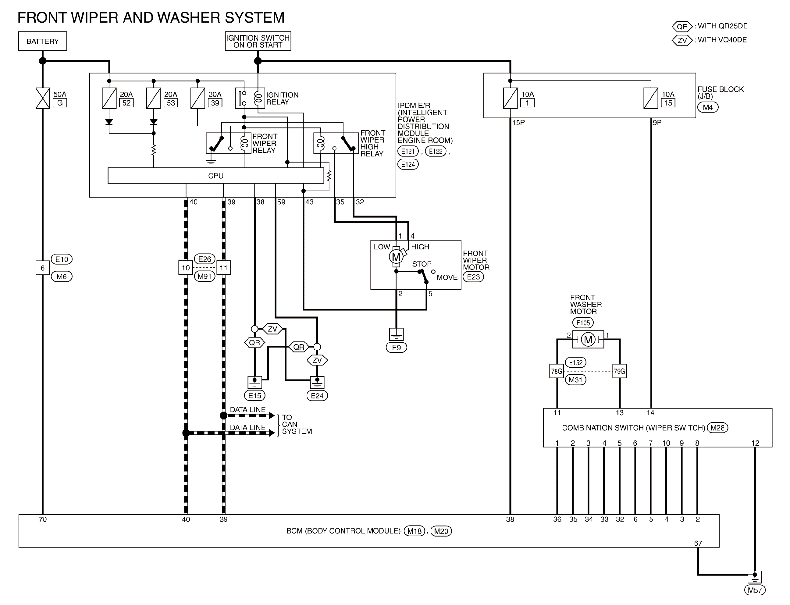

Fig 1: Front Wiper And Washer System - Wiring Diagram (1 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

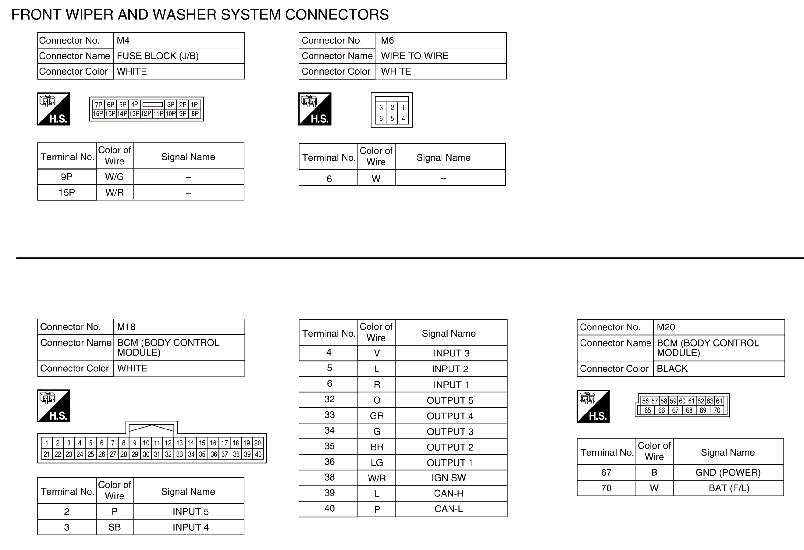

Fig 2: Front Wiper And Washer System - Wiring Diagram (2 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

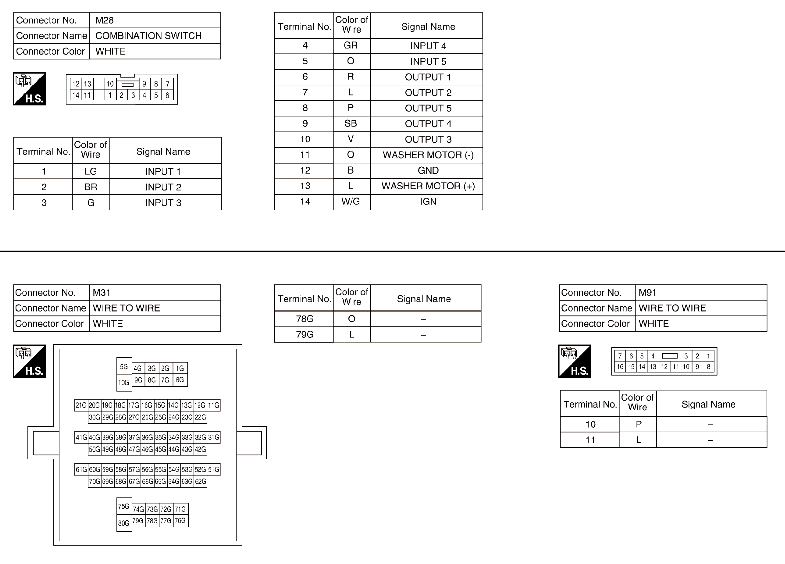

Fig 3: Front Wiper And Washer System - Wiring Diagram (3 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

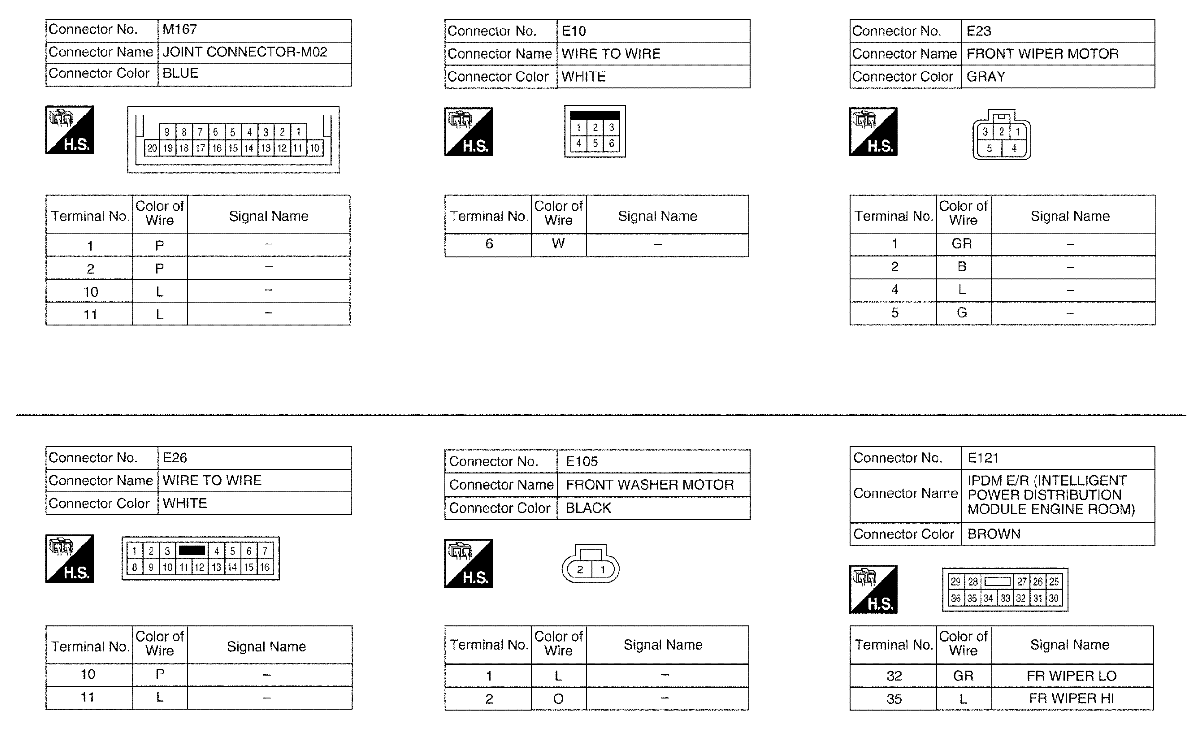

Fig 4: Front Wiper And Washer System - Wiring Diagram (4 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Front Wiper And Washer System - Wiring Diagram (5 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.
