Front Fog Lamp System: Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front Fog Lamp System: Wiring Diagram

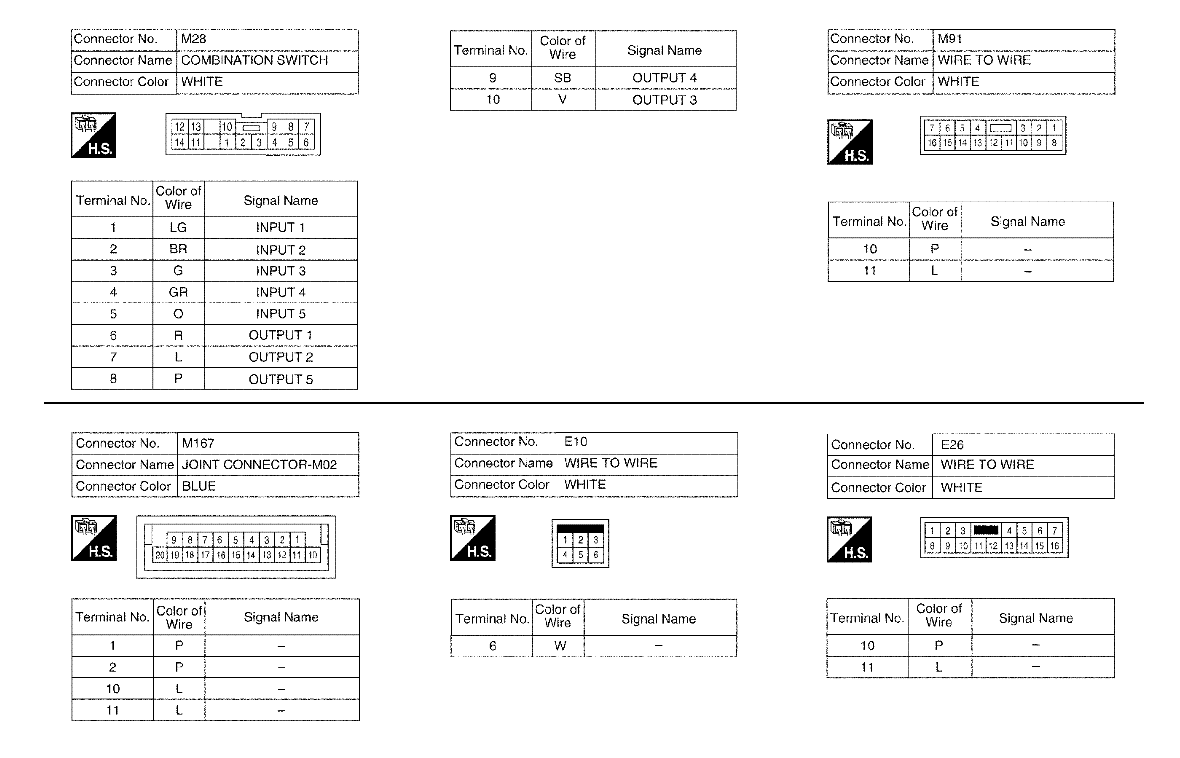

Fig 1: Front Fog Lamp System - Wiring Diagram (1 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

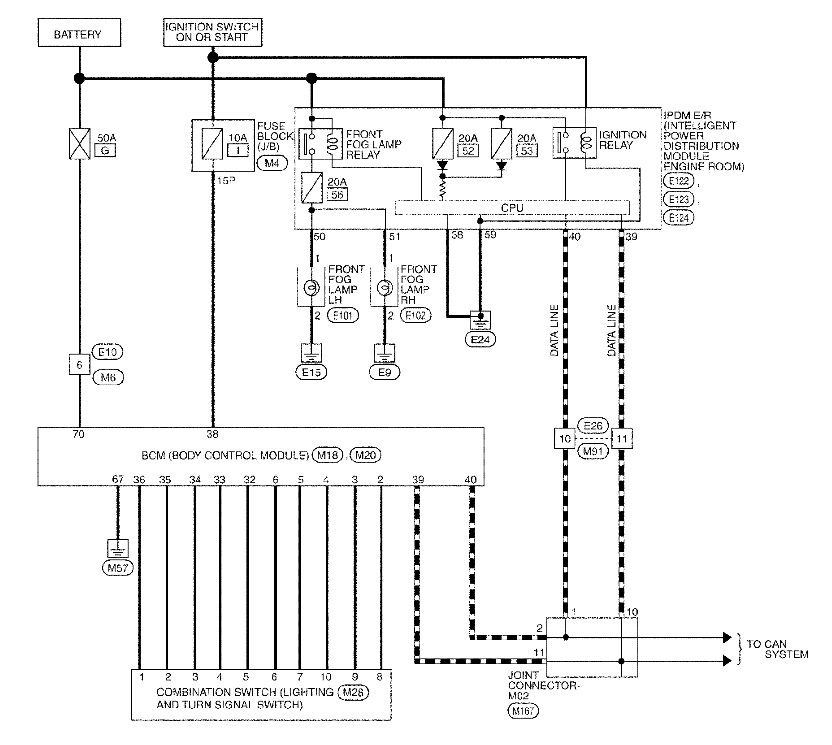

Fig 2: Front Fog Lamp System - Wiring Diagram (2 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

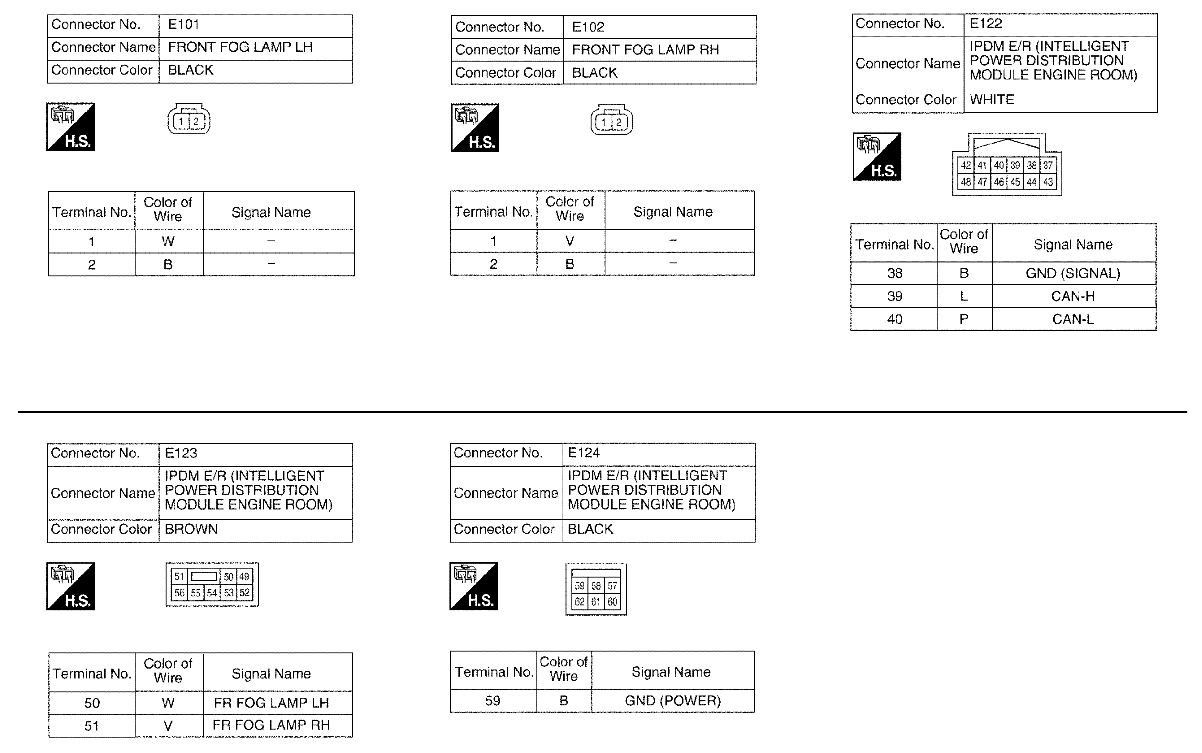

Fig 3: Front Fog Lamp System - Wiring Diagram (3 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 4: Front Fog Lamp System - Wiring Diagram (4 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
