Engine Control System: Wiring Diagram [QR25DE]

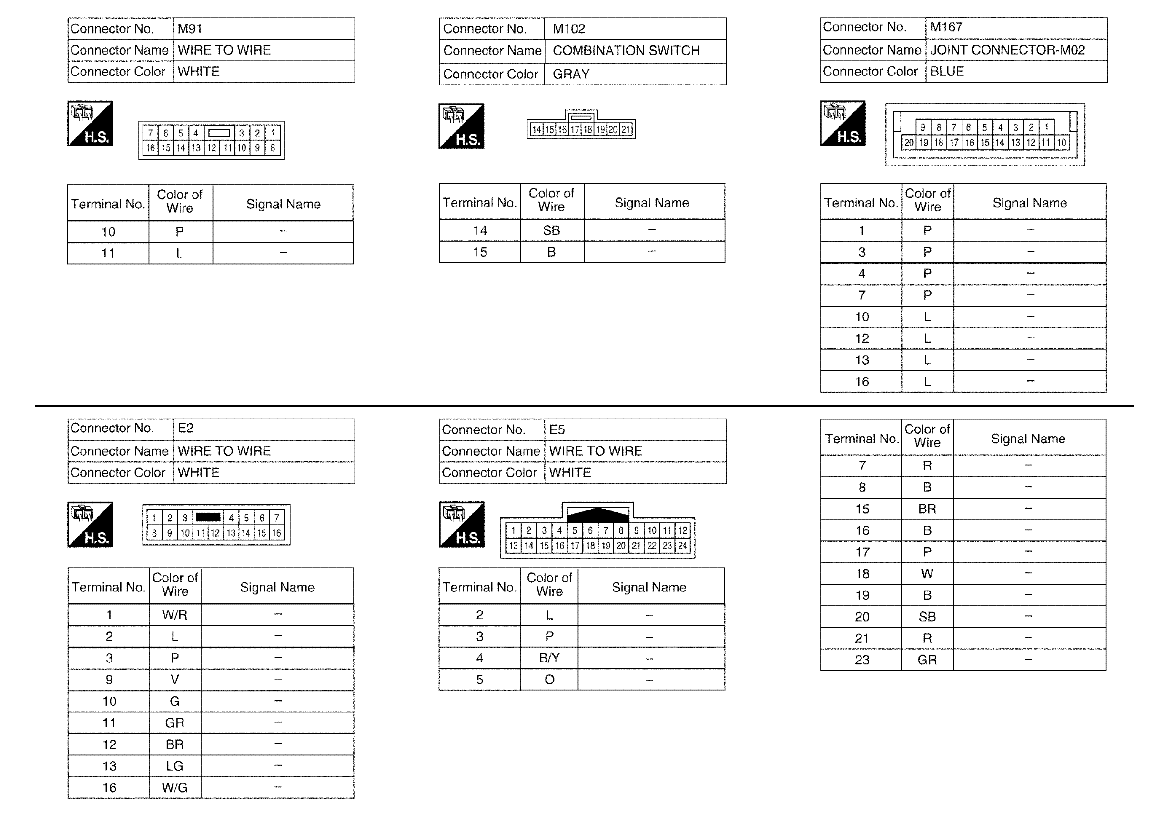

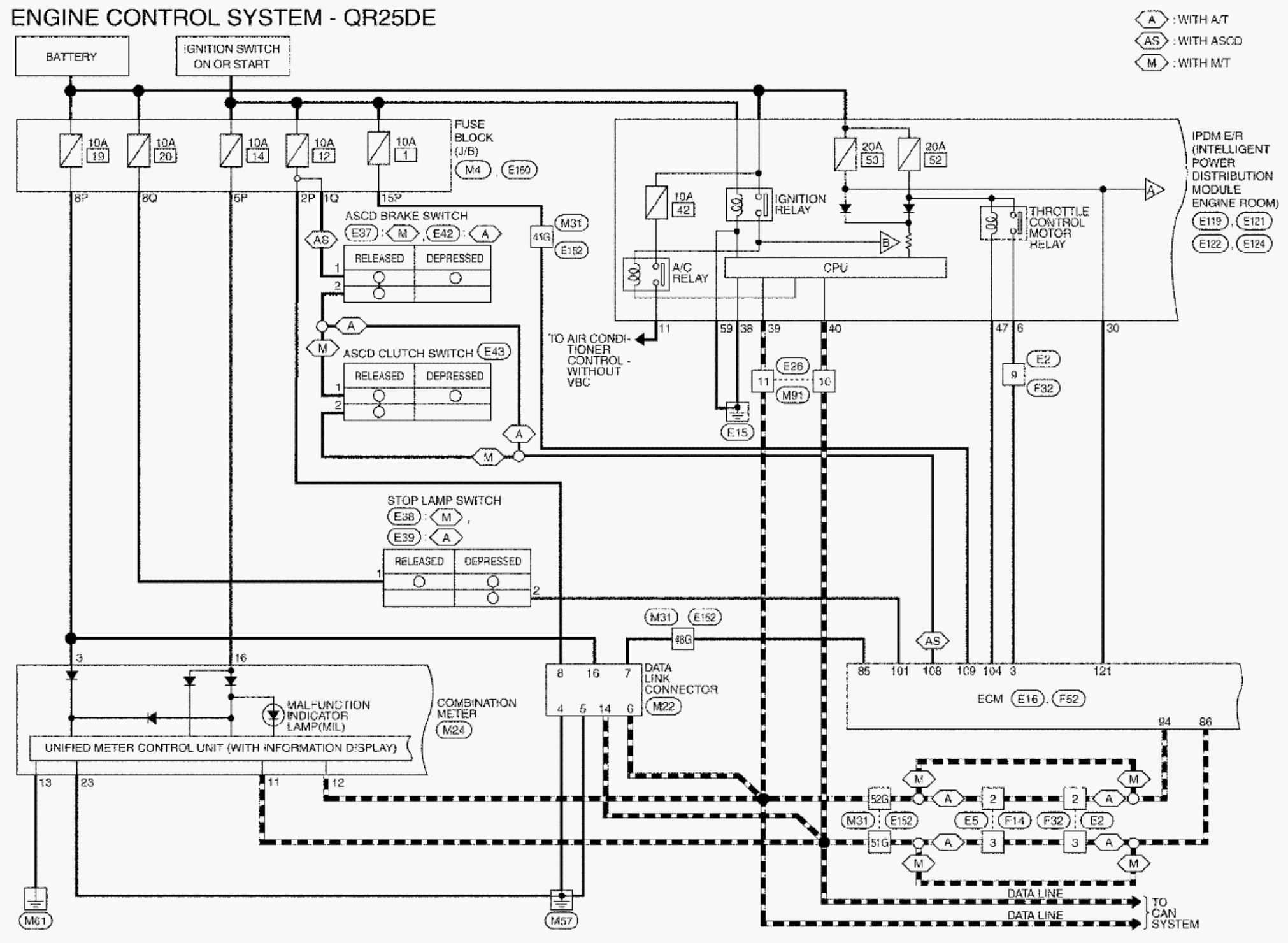

Fig 1: Identifying Engine Control System - Wiring Diagram [QR25DE] (1 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

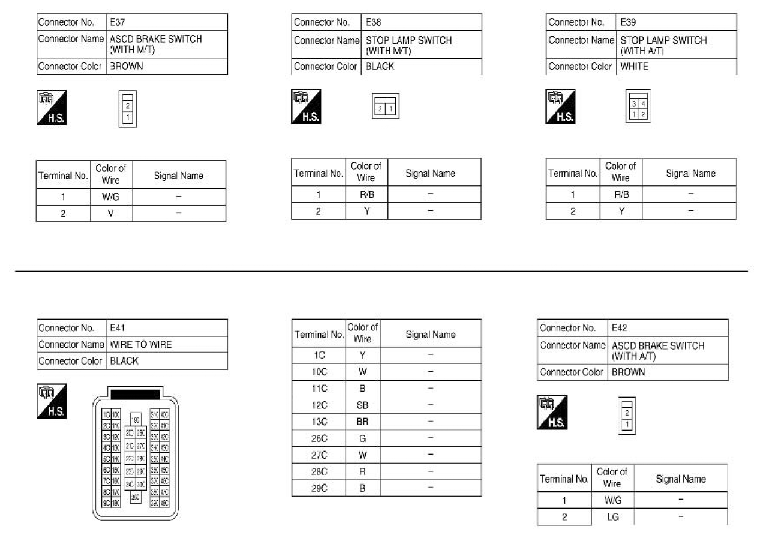

Fig 2: Identifying Engine Control System - Wiring Diagram [QR25DE] (2 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

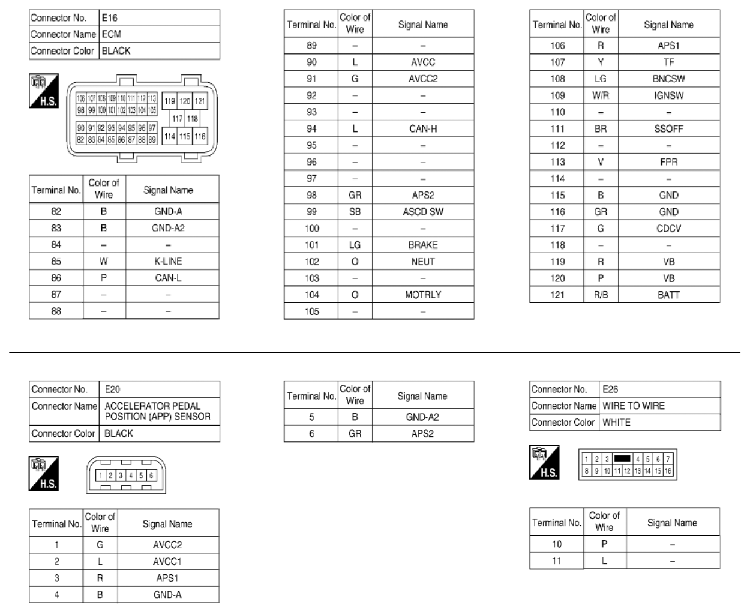

Fig 3: Identifying Engine Control System - Wiring Diagram [QR25DE] (3 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

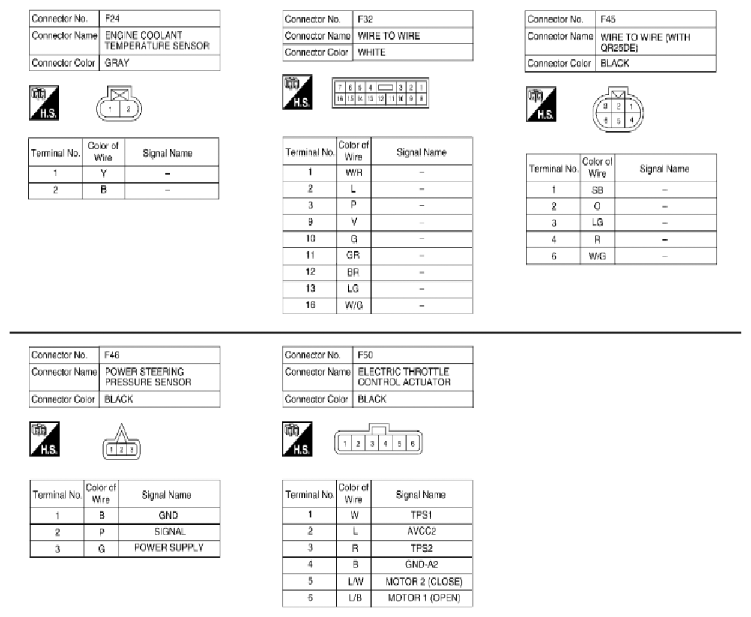

Fig 4: Identifying Engine Control System - Wiring Diagram [QR25DE] (4 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

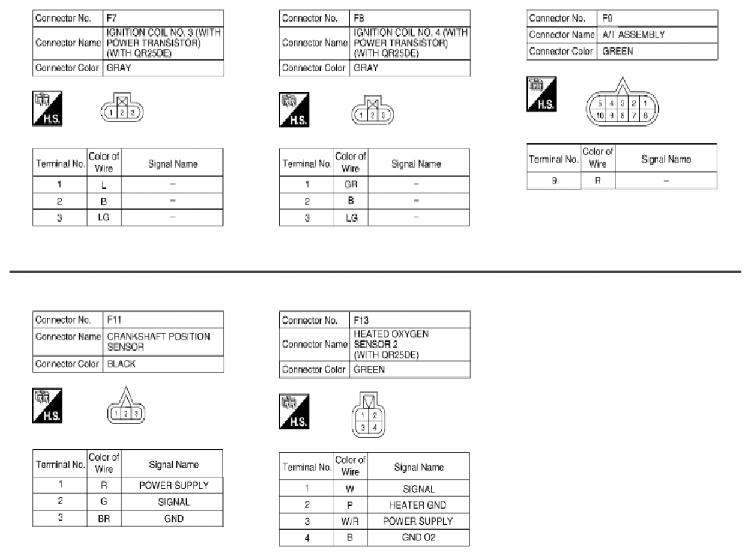

Fig 5: Identifying Engine Control System - Wiring Diagram [QR25DE] (5 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

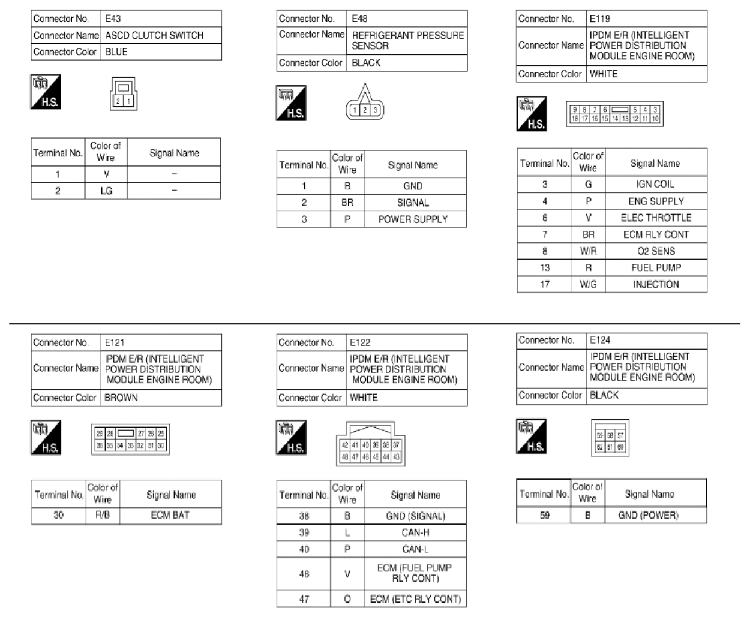

Fig 6: Identifying Engine Control System - Wiring Diagram [QR25DE] (6 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

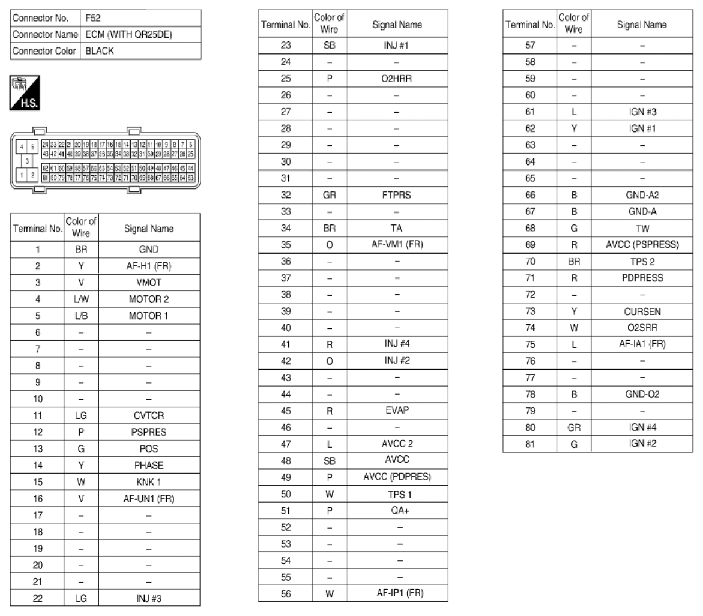

Fig 7: Identifying Engine Control System - Wiring Diagram [QR25DE] (7 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

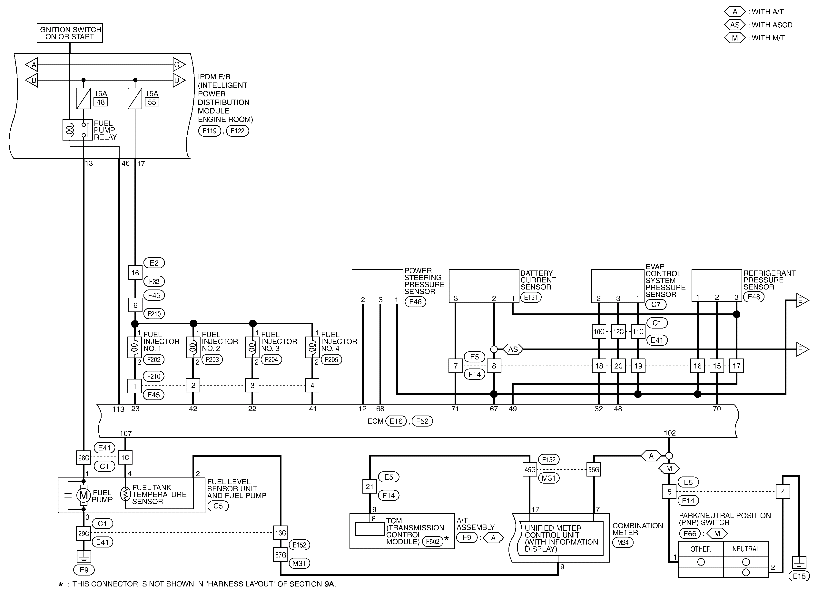

Fig 8: Identifying Engine Control System - Wiring Diagram [QR25DE] (8 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

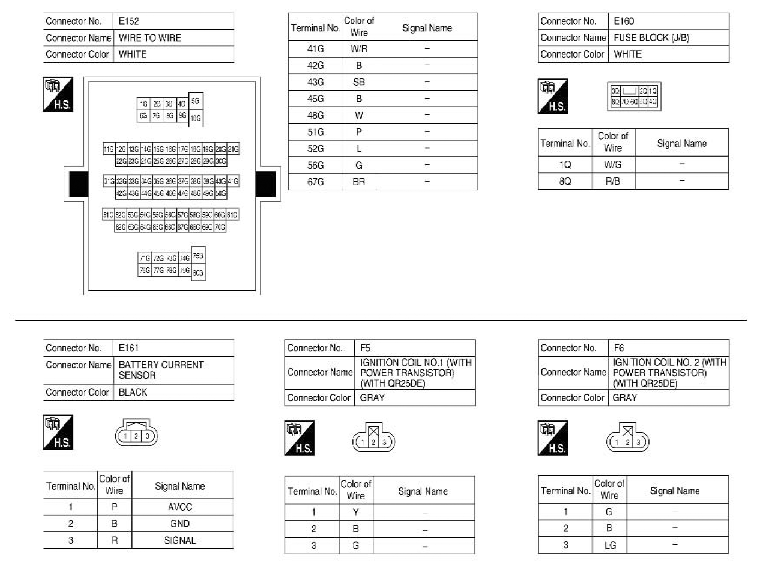

Fig 9: Identifying Engine Control System - Wiring Diagram [QR25DE] (9 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

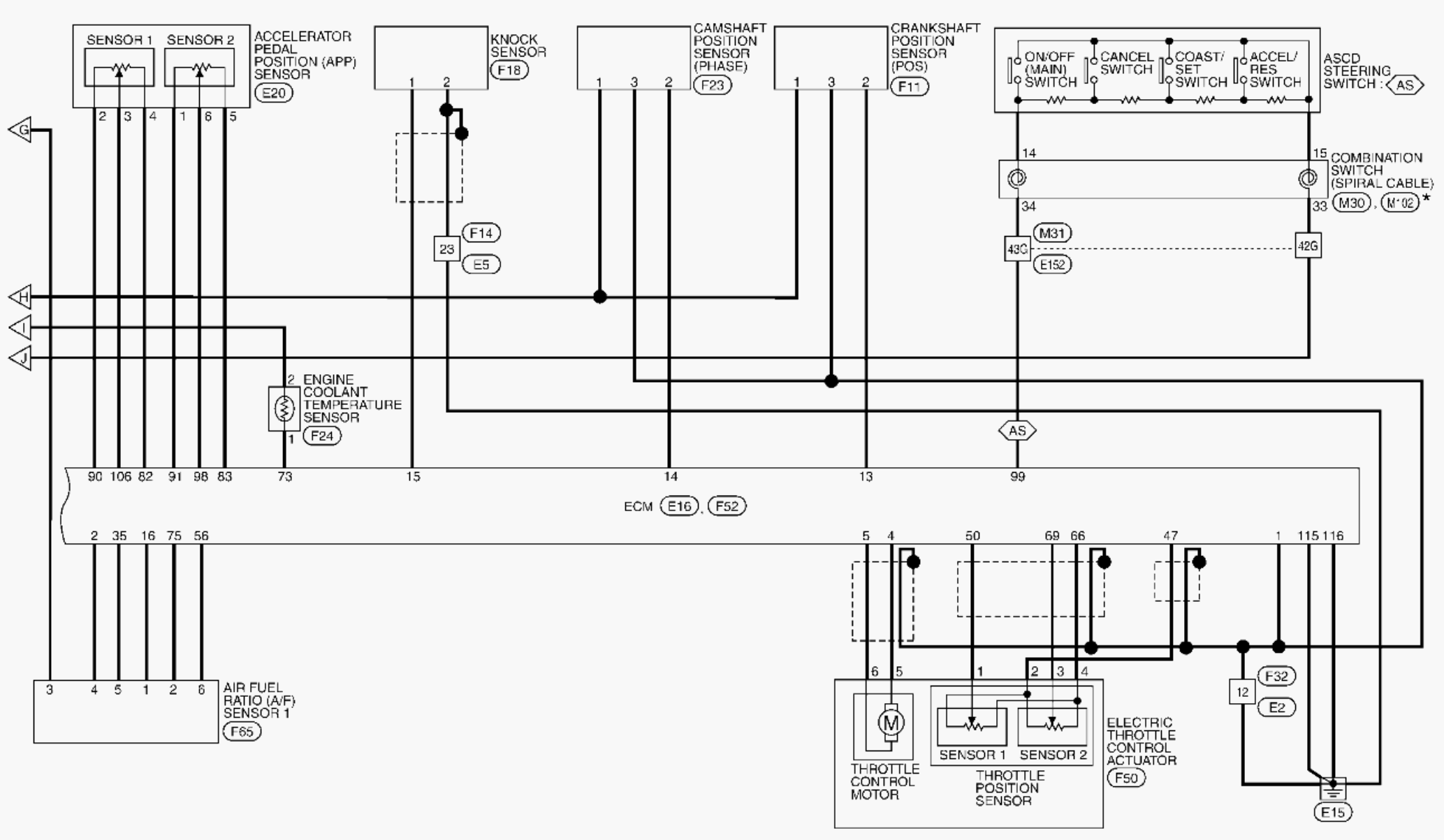

Fig 10: Identifying Engine Control System - Wiring Diagram [QR25DE] (10 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

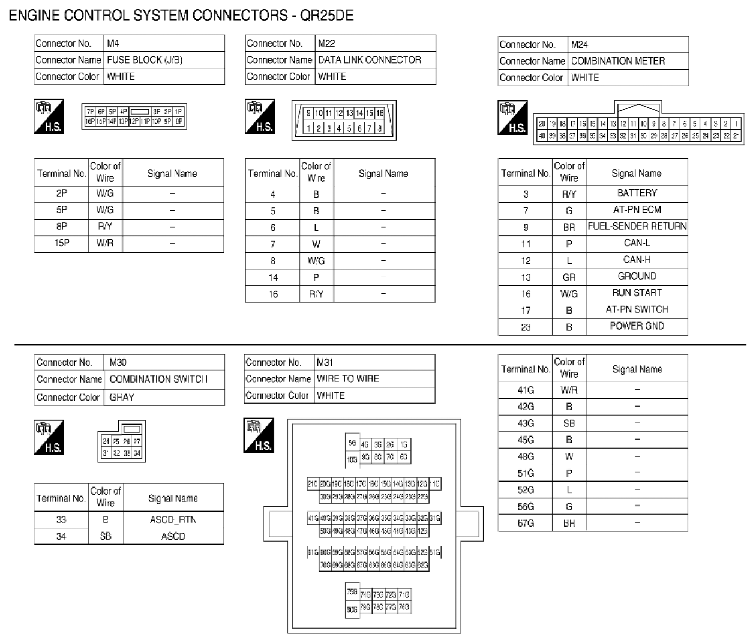

Fig 11: Identifying Engine Control System - Wiring Diagram [QR25DE] (11 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

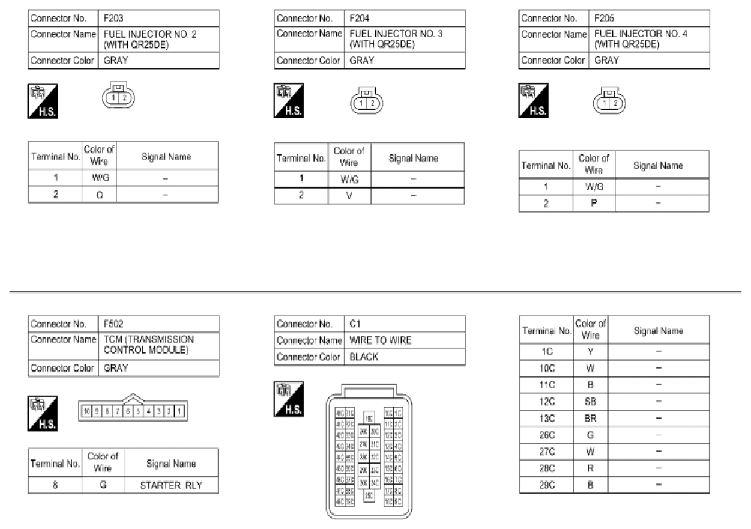

Fig 12: Identifying Engine Control System - Wiring Diagram [QR25DE] (12 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

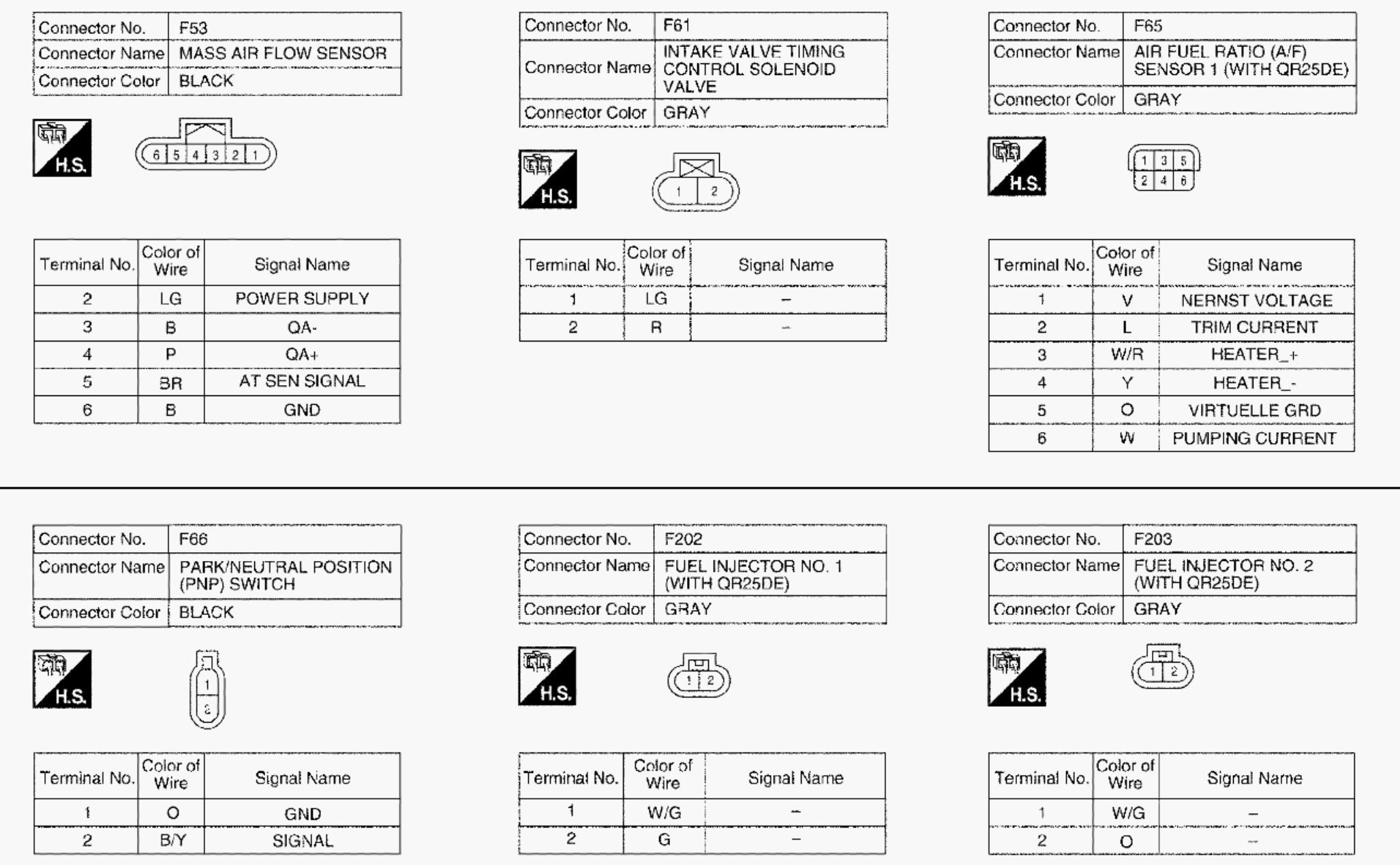

Fig 13: Identifying Engine Control System - Wiring Diagram [QR25DE] (13 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

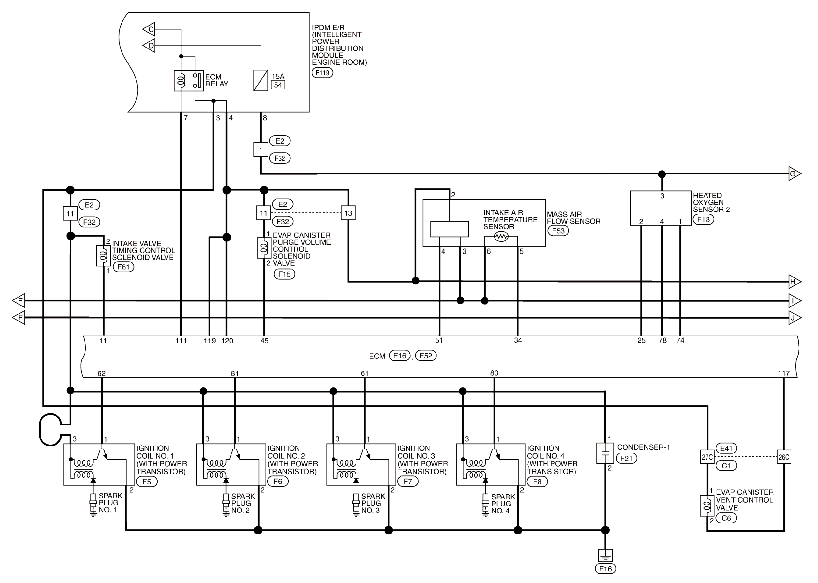

Fig 14: Identifying Engine Control System - Wiring Diagram [QR25DE] (14 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

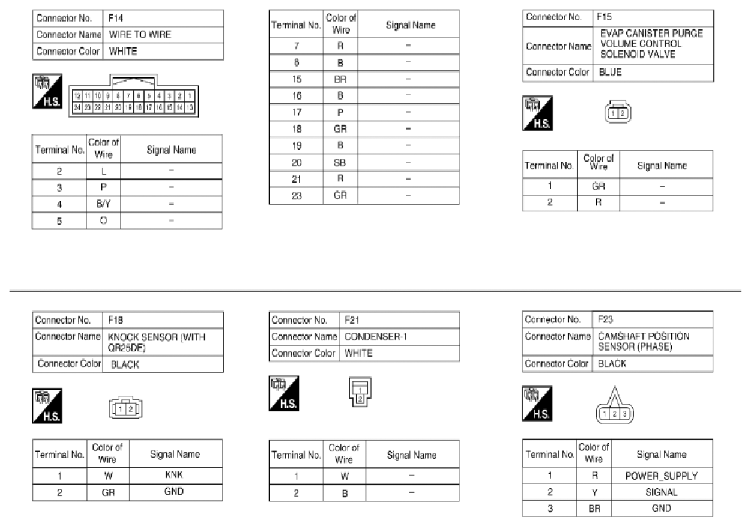

Fig 15: Identifying Engine Control System - Wiring Diagram [QR25DE] (15 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

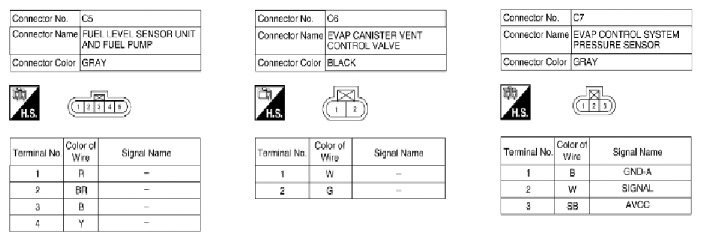

Fig 16: Identifying Engine Control System - Wiring Diagram [QR25DE] (16 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 17: Identifying Engine Control System - Wiring Diagram [QR25DE] (17 Of 17)

Courtesy of SUZUKI OF AMERICA CORP.
