Daytime Light System: Wiring Diagram

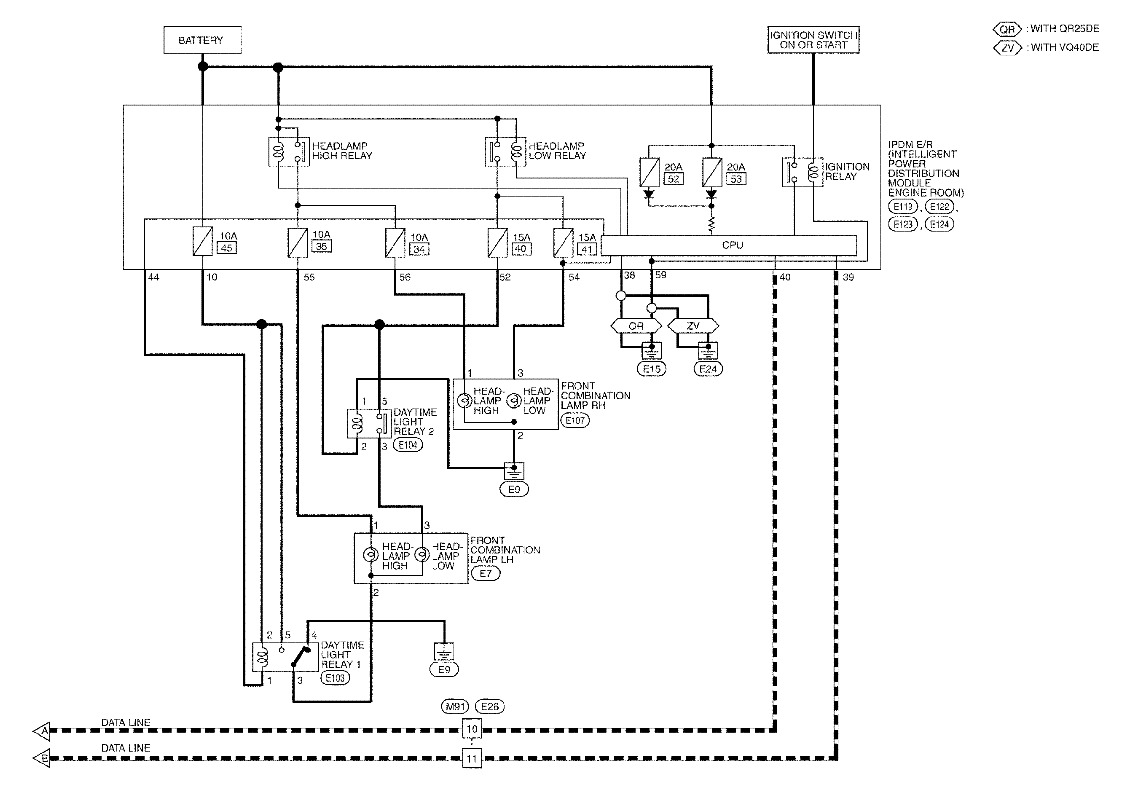

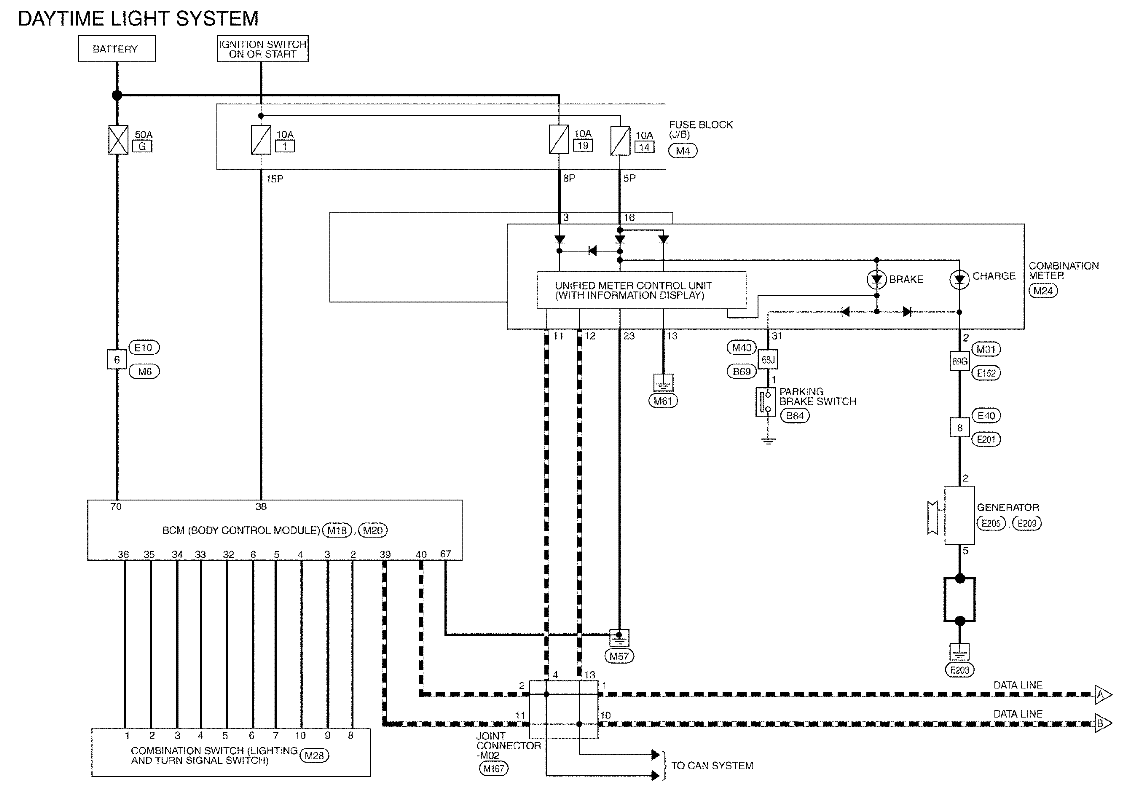

Fig 1: Daytime Light System - Wiring Diagram (1 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

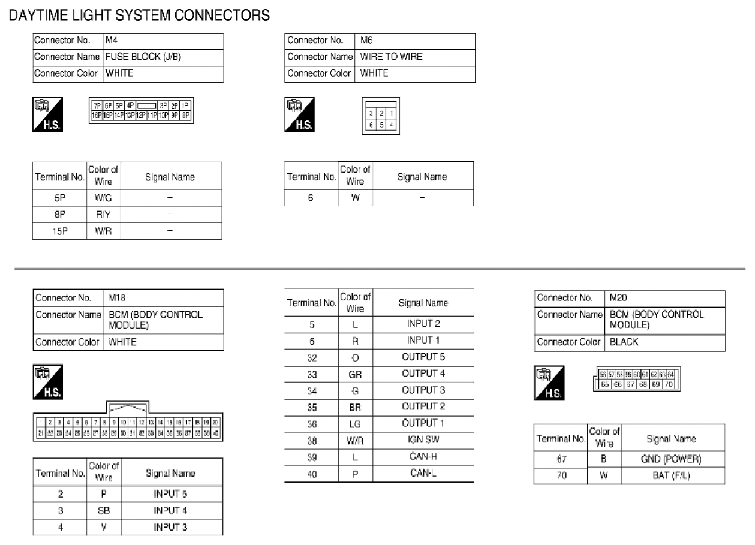

Fig 2: Daytime Light System - Wiring Diagram (2 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

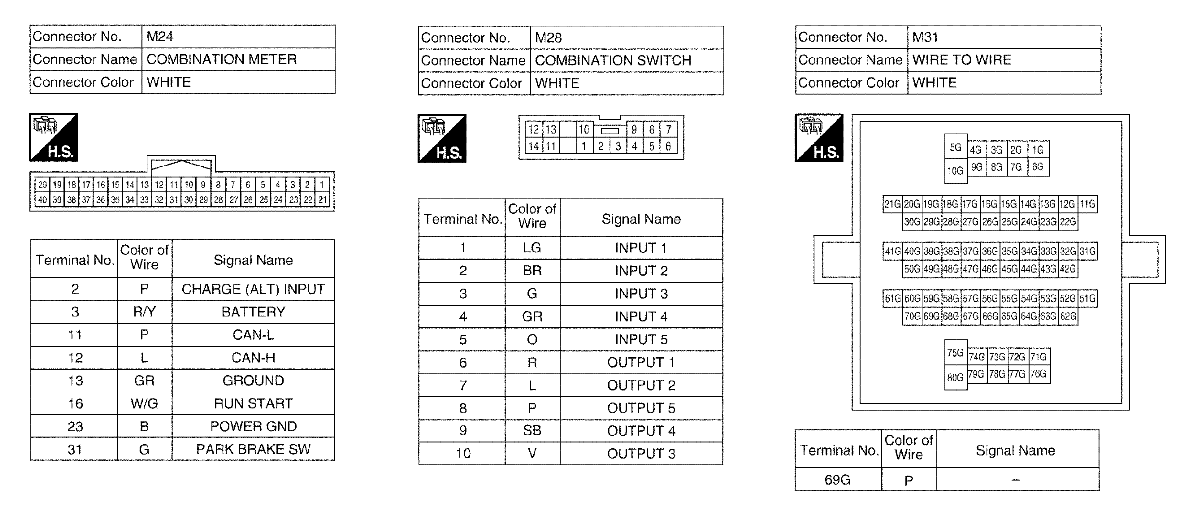

Fig 3: Daytime Light System - Wiring Diagram (3 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

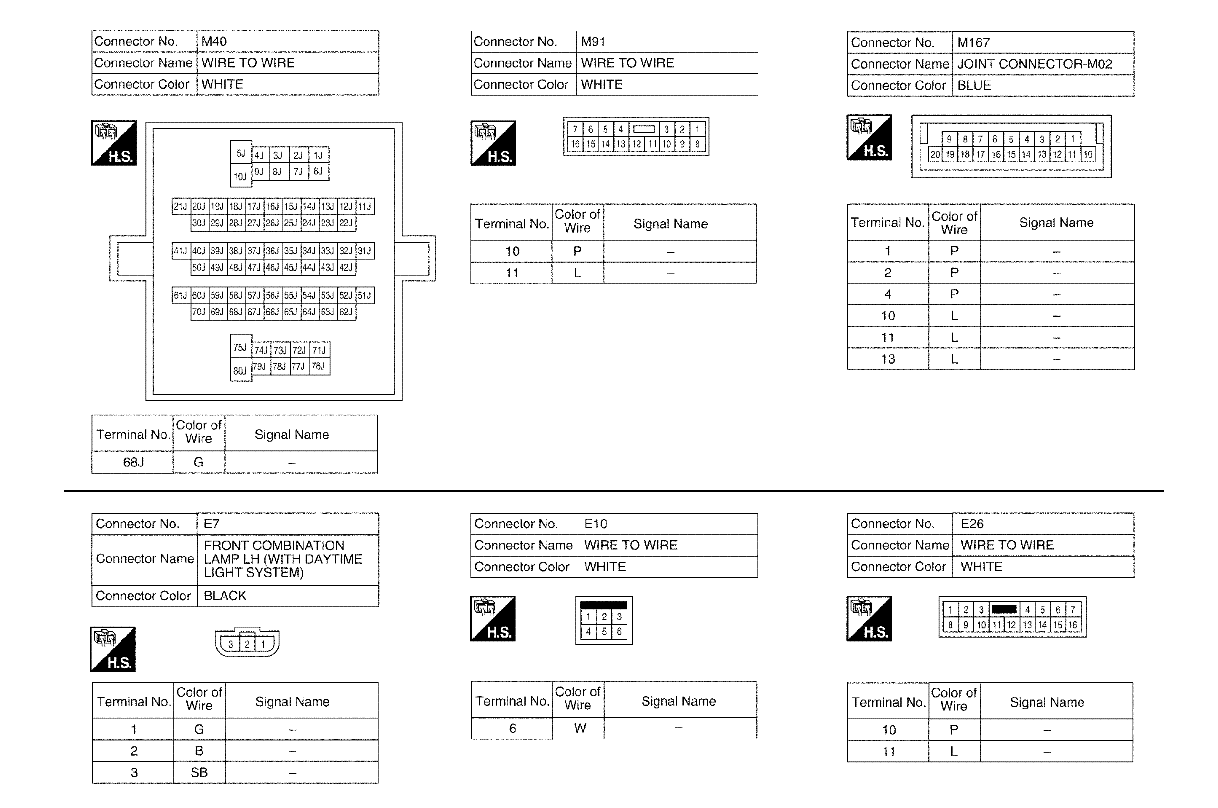

Fig 4: Daytime Light System - Wiring Diagram (4 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

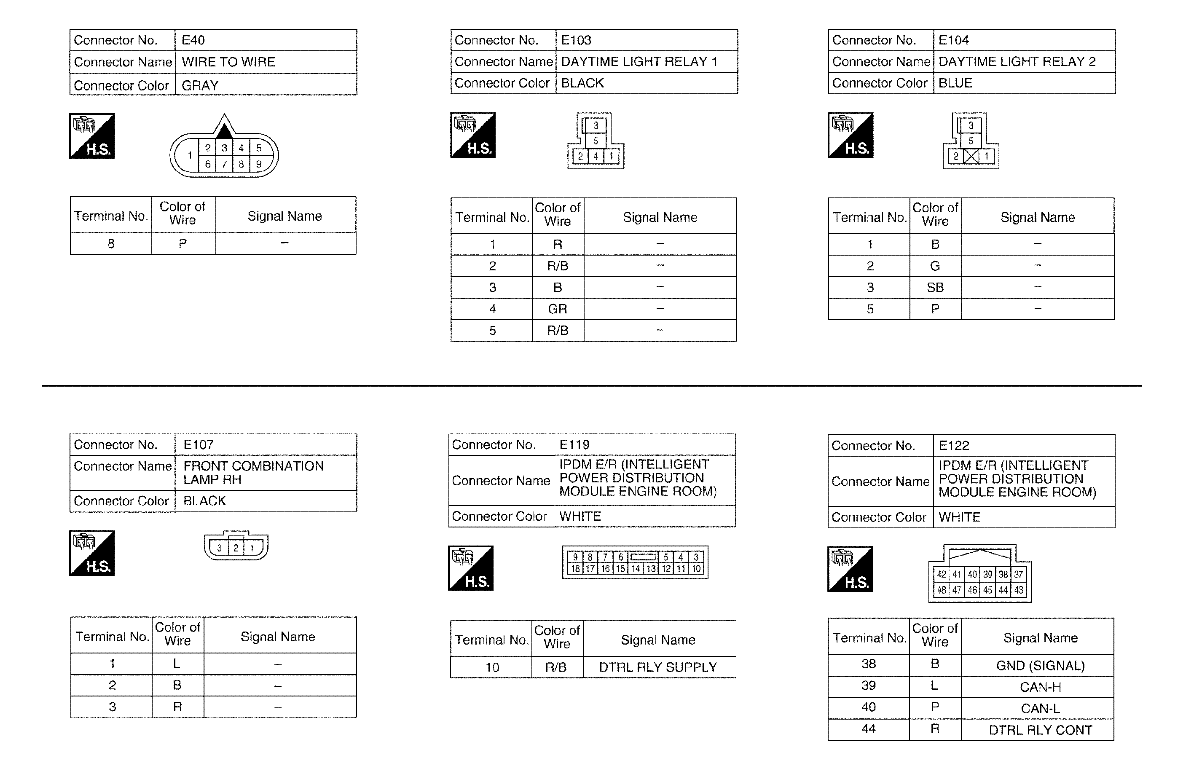

Fig 5: Daytime Light System - Wiring Diagram (5 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

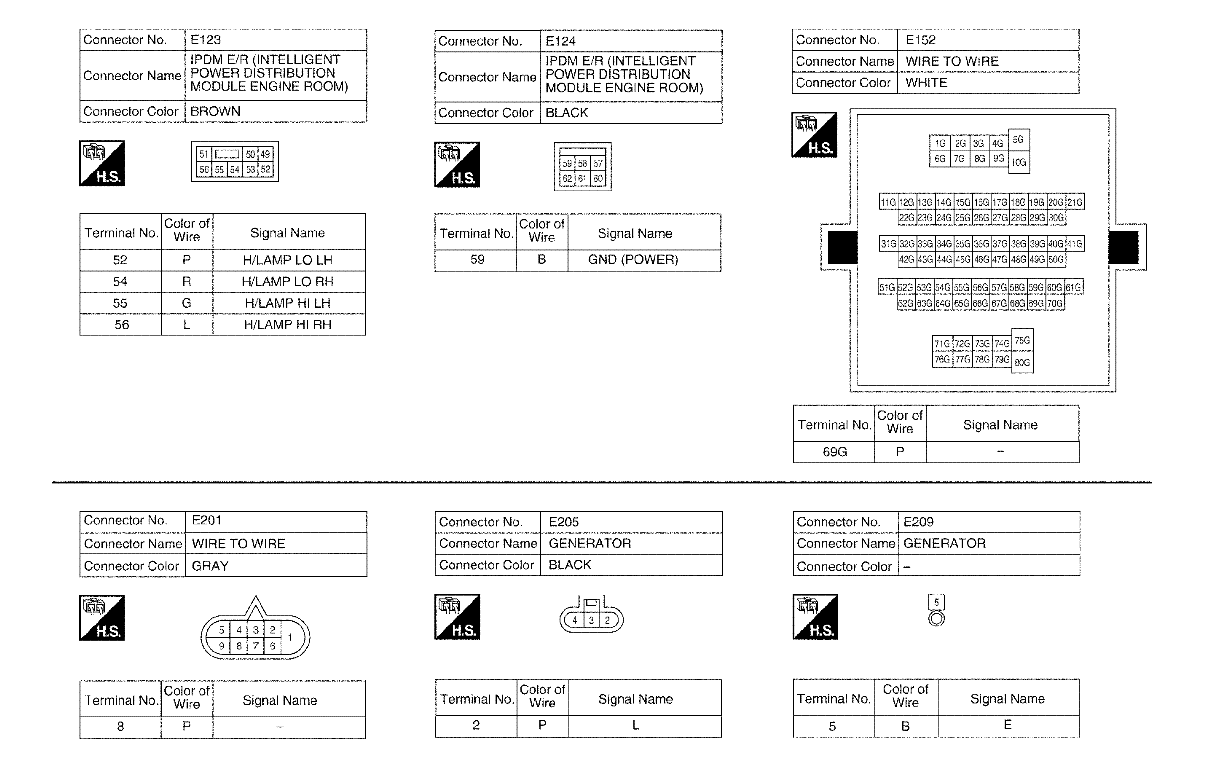

Fig 6: Daytime Light System - Wiring Diagram (6 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

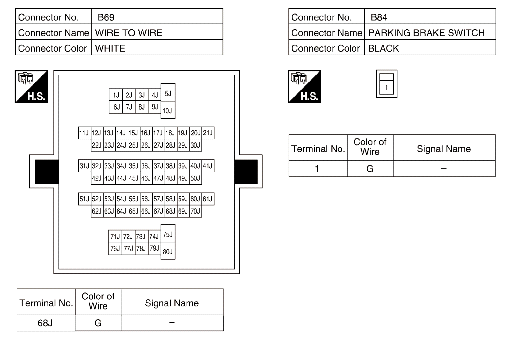

Fig 7: Daytime Light System - Wiring Diagram (7 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 8: Daytime Light System - Wiring Diagram (8 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.
