Base Audio System: Wiring Diagram [Base Audio]

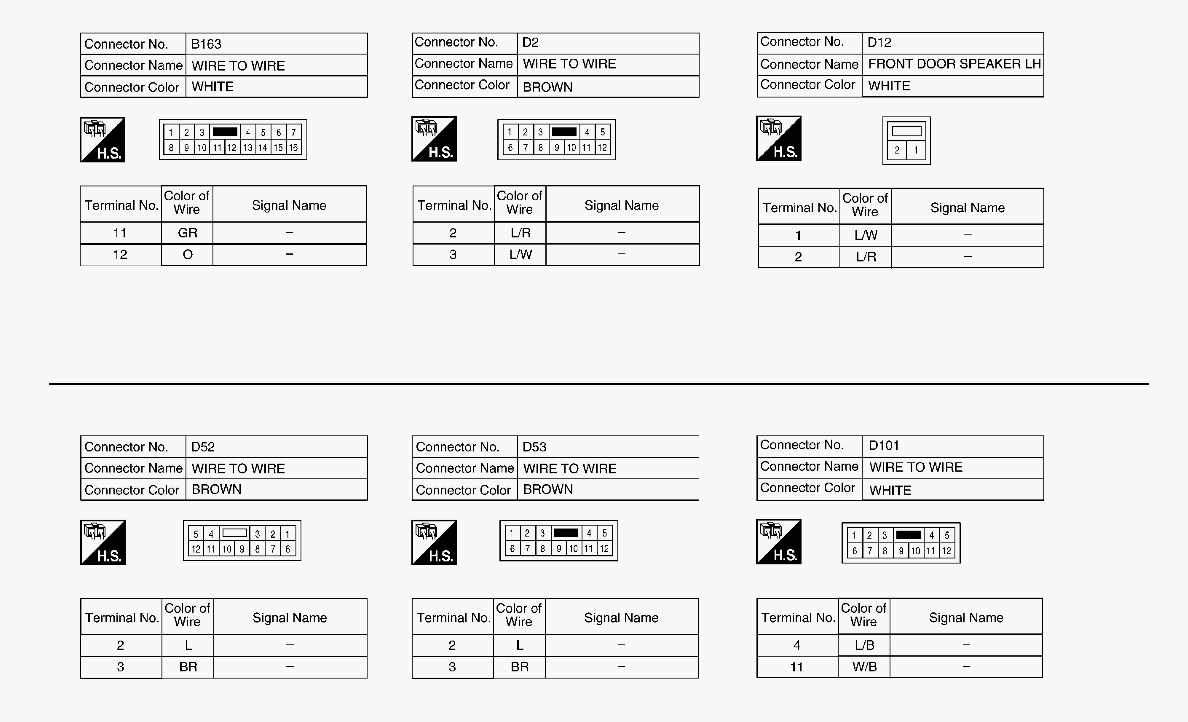

Fig 1: Audio Unit - Wiring Diagram [Base Audio] (1 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

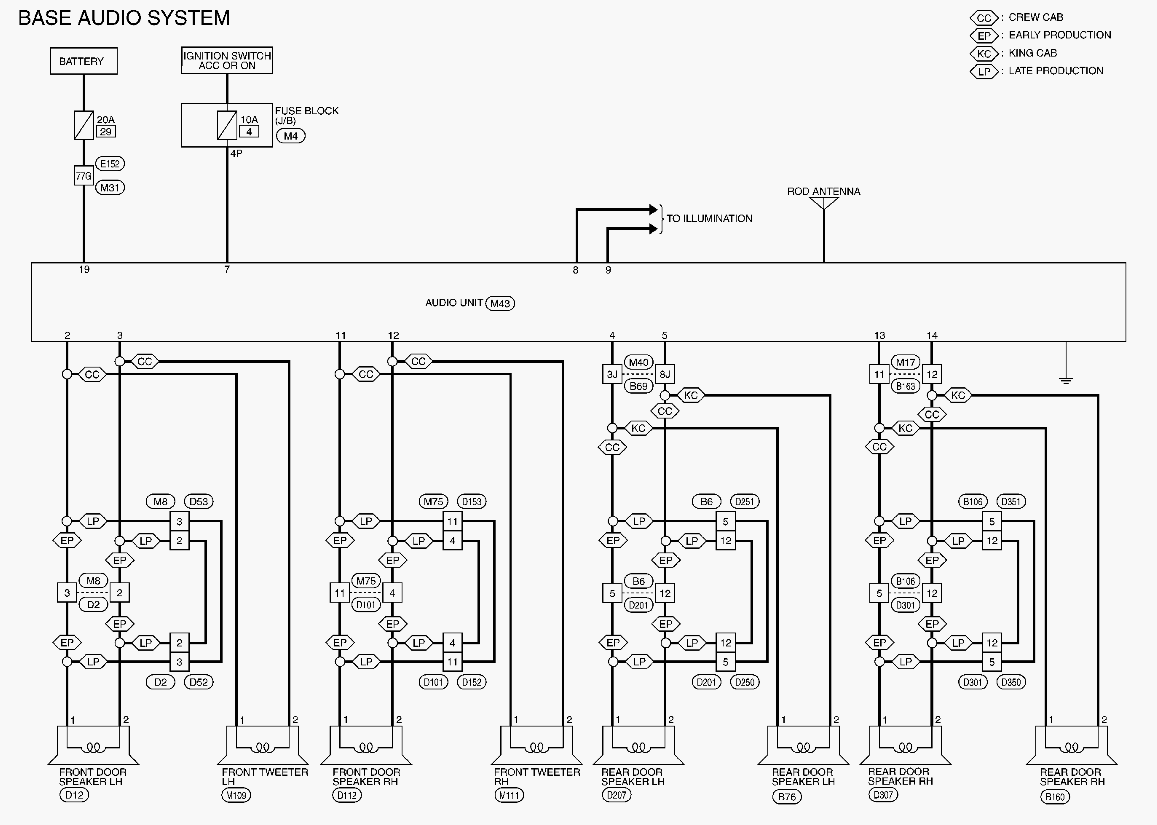

Fig 2: Audio Unit - Wiring Diagram [Base Audio] (2 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

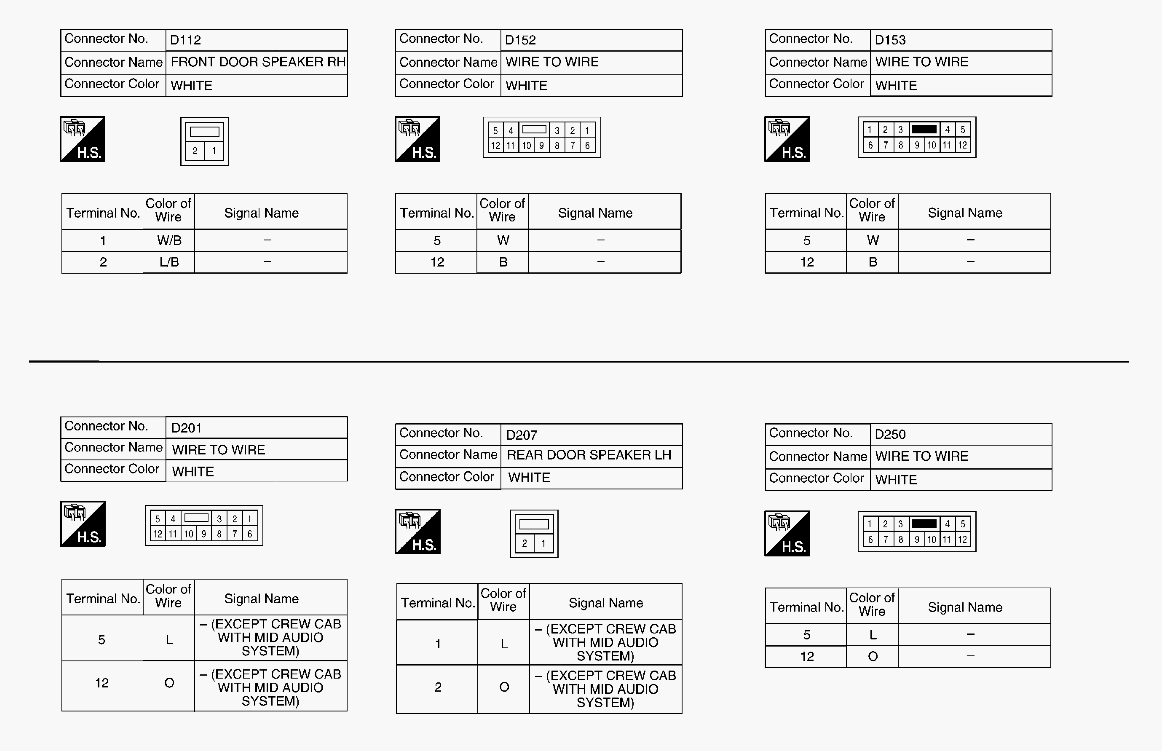

Fig 3: Audio Unit - Wiring Diagram [Base Audio] (3 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

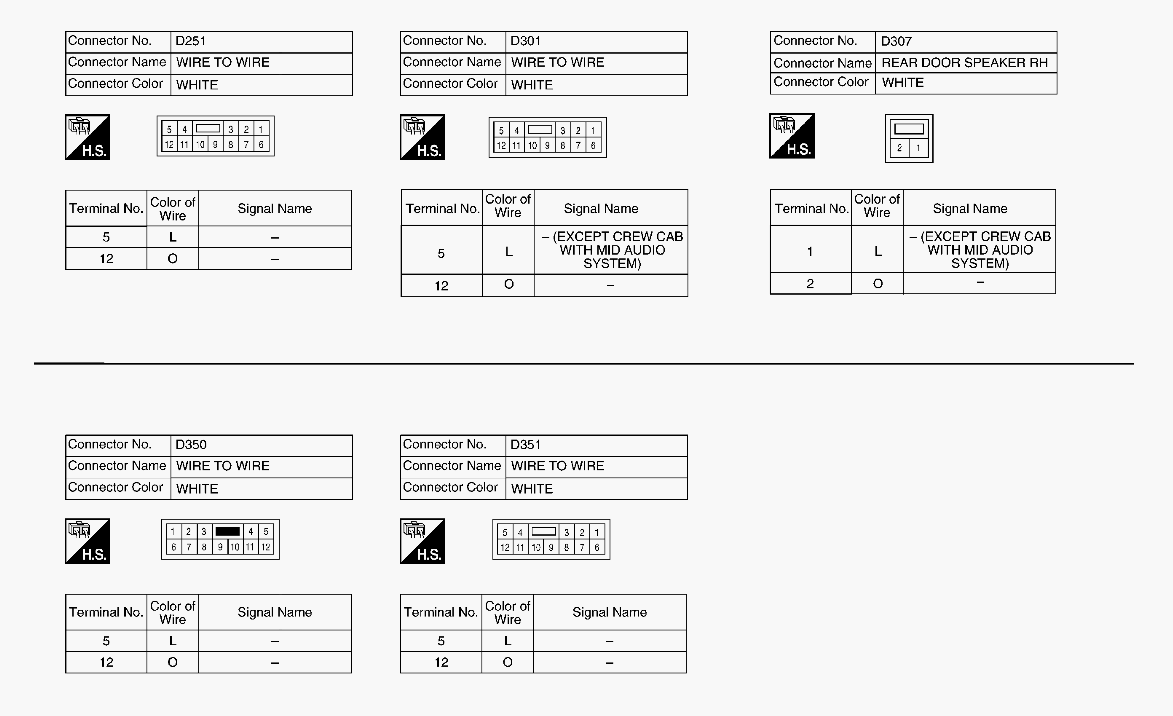

Fig 4: Audio Unit - Wiring Diagram [Base Audio] (4 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Audio Unit - Wiring Diagram [Base Audio] (5 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: Audio Unit - Wiring Diagram [Base Audio] (6 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: Audio Unit - Wiring Diagram [Base Audio] (7 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.
