Back-Up Lamp: Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Back-Up Lamp: Wiring Diagram

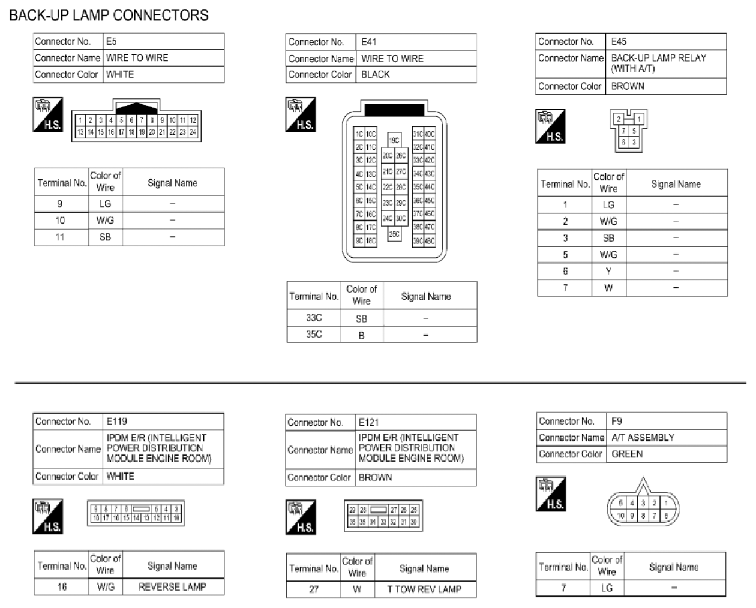

Fig 1: Back-Up Lamp - Wiring Diagram (1 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

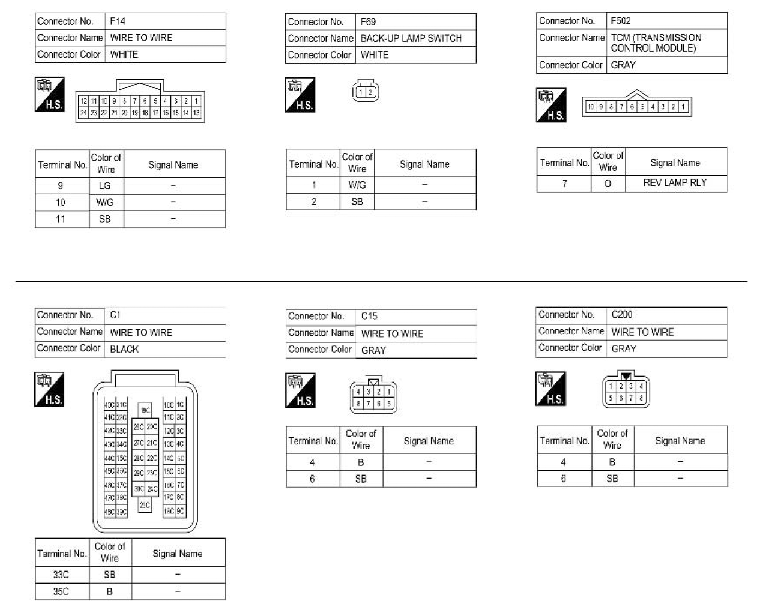

Fig 2: Back-Up Lamp - Wiring Diagram (2 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

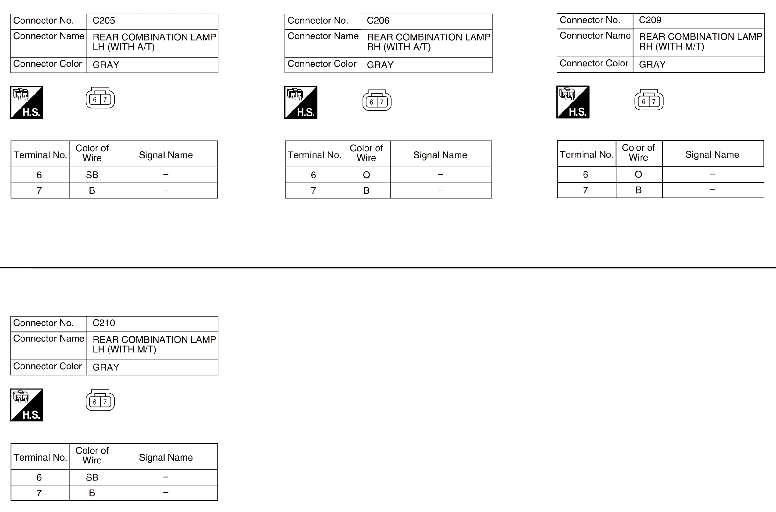

Fig 3: Back-Up Lamp - Wiring Diagram (3 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

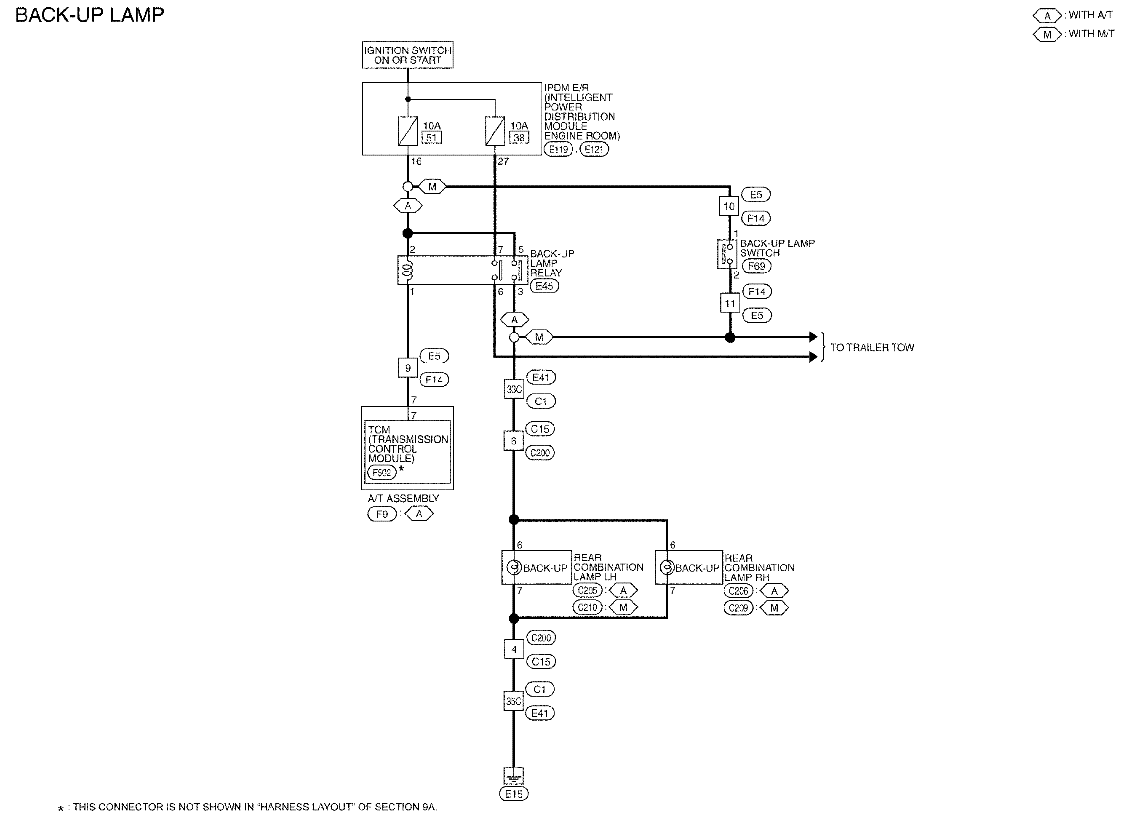

Fig 4: Back-Up Lamp - Wiring Diagram (4 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
