BCM: Wiring Diagram

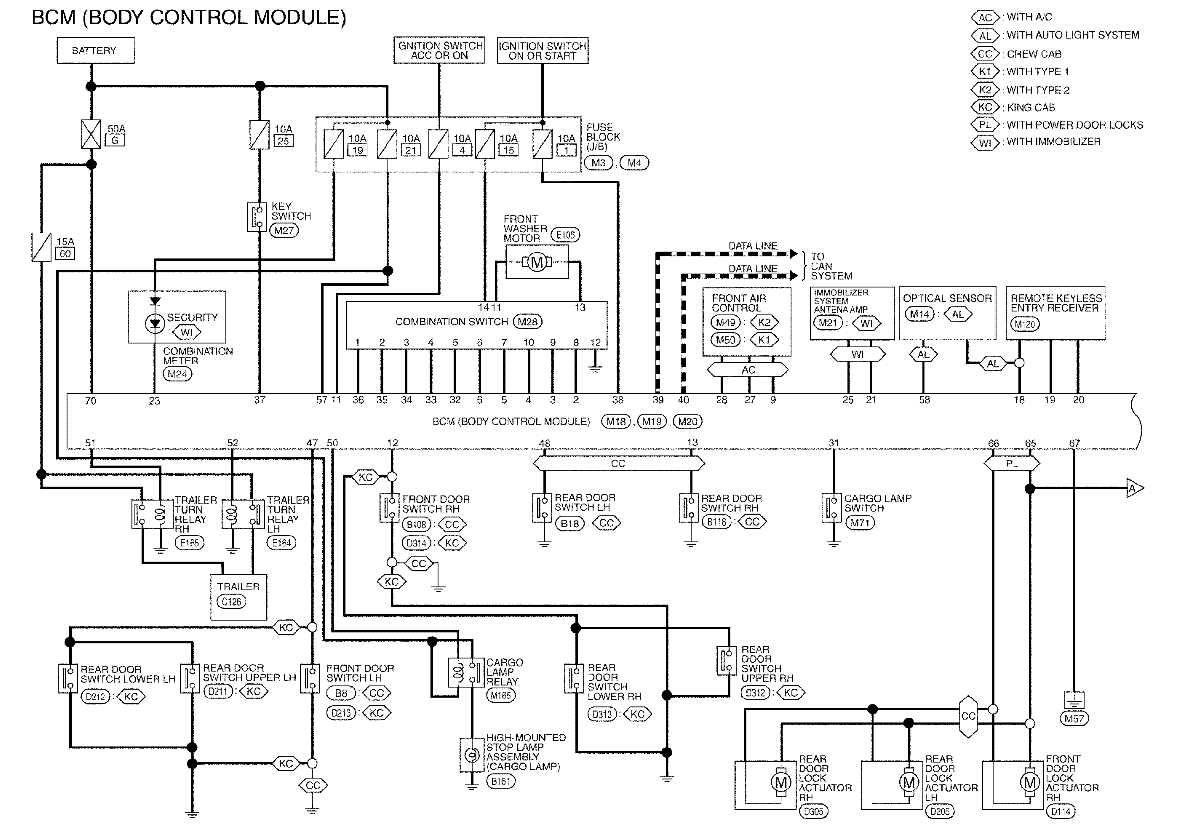

Fig 1: BCM (Body Control Module) - Wiring Diagram (1 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

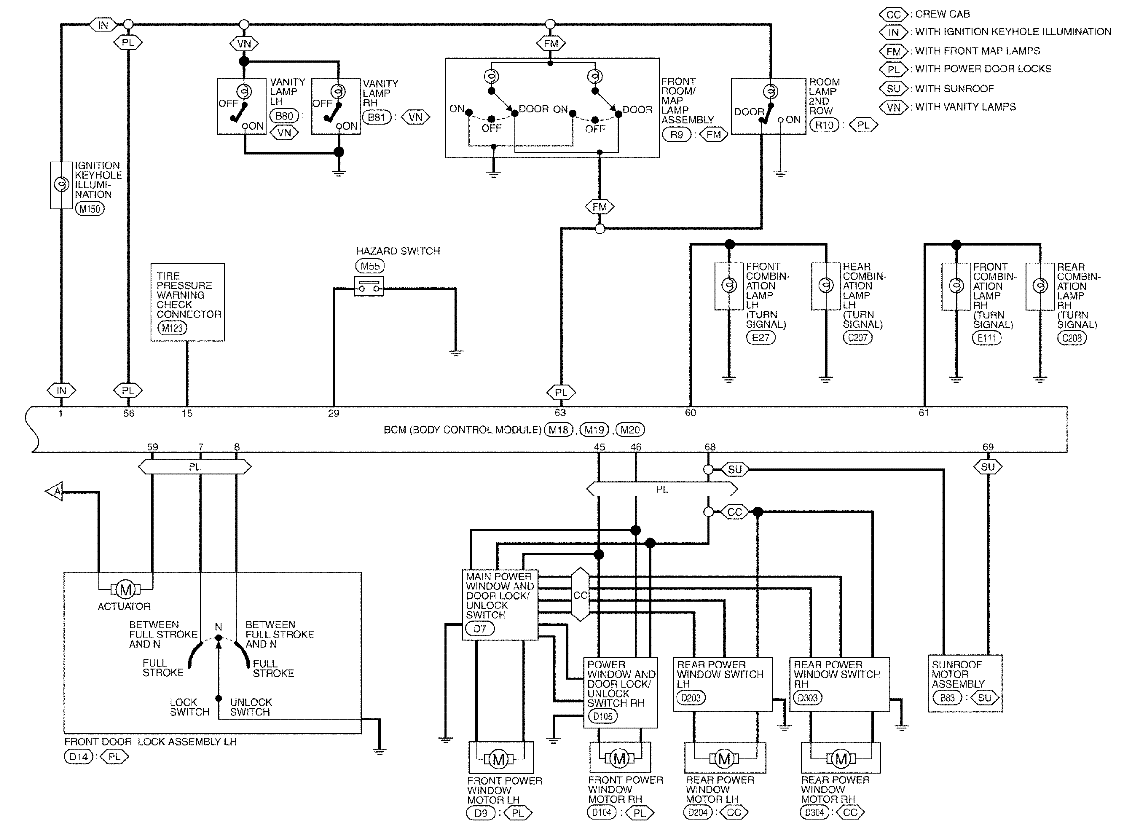

Fig 2: BCM (Body Control Module) - Wiring Diagram (2 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

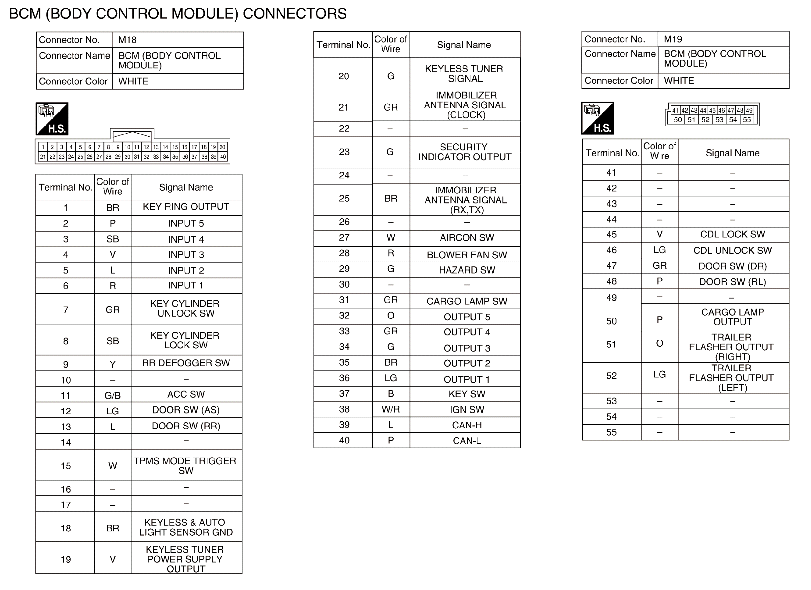

Fig 3: BCM (Body Control Module) - Wiring Diagram (3 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

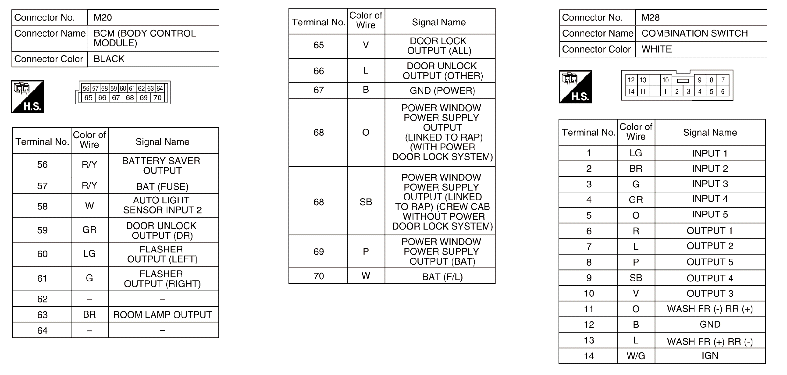

Fig 4: BCM (Body Control Module) - Wiring Diagram (4 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.
