Auto Light System: Wiring Diagram

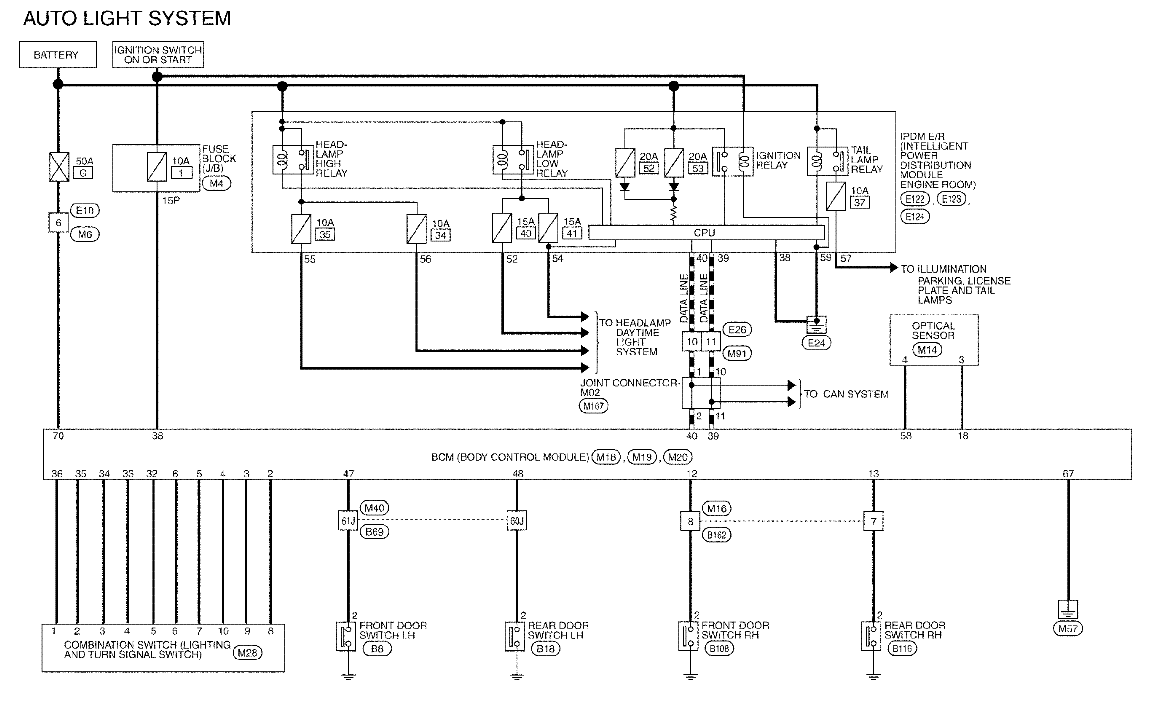

Fig 1: Auto Light System - Wiring Diagram (1 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Auto Light System - Wiring Diagram (2 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 3: Auto Light System - Wiring Diagram (3 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 4: Auto Light System - Wiring Diagram (4 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 5: Auto Light System - Wiring Diagram (5 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

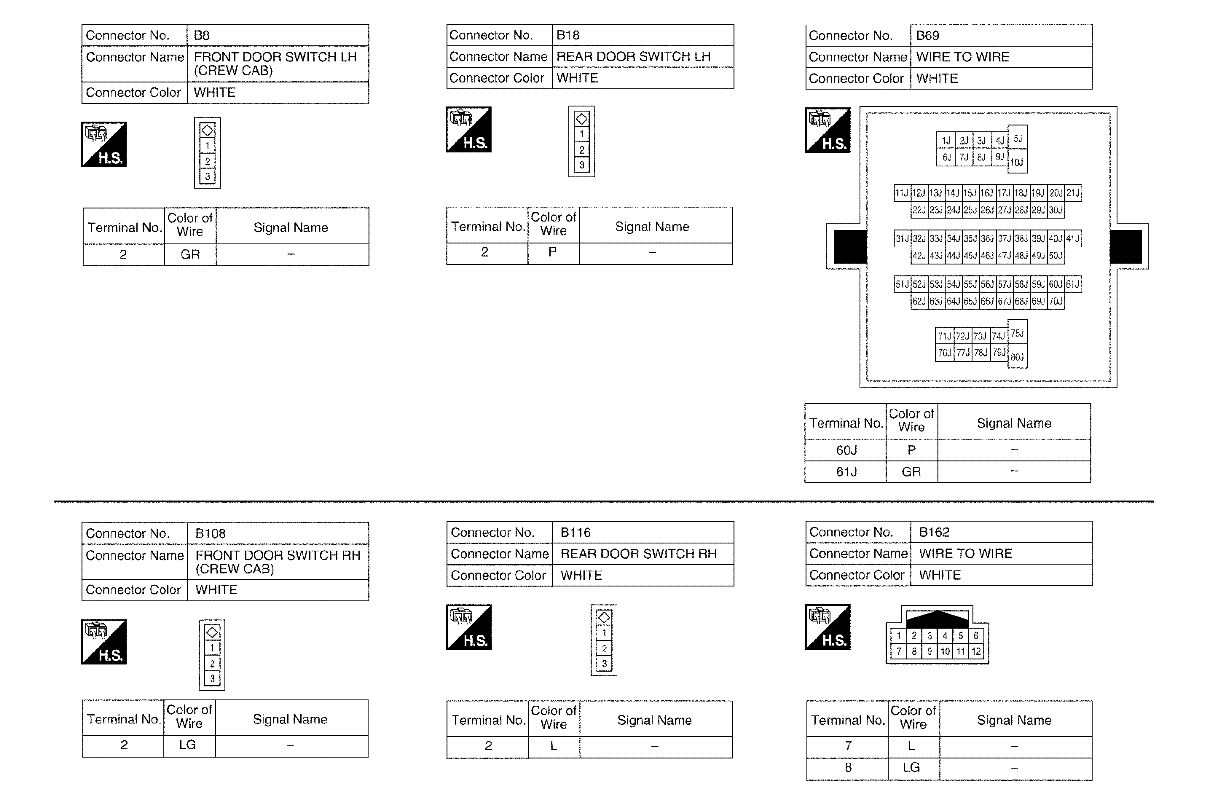

Courtesy of SUZUKI OF AMERICA CORP.

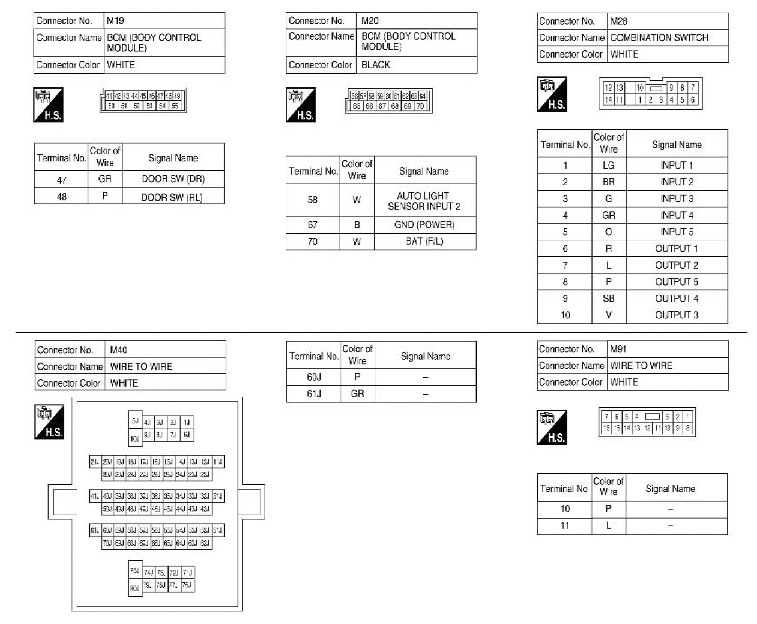

Courtesy of SUZUKI OF AMERICA CORP.

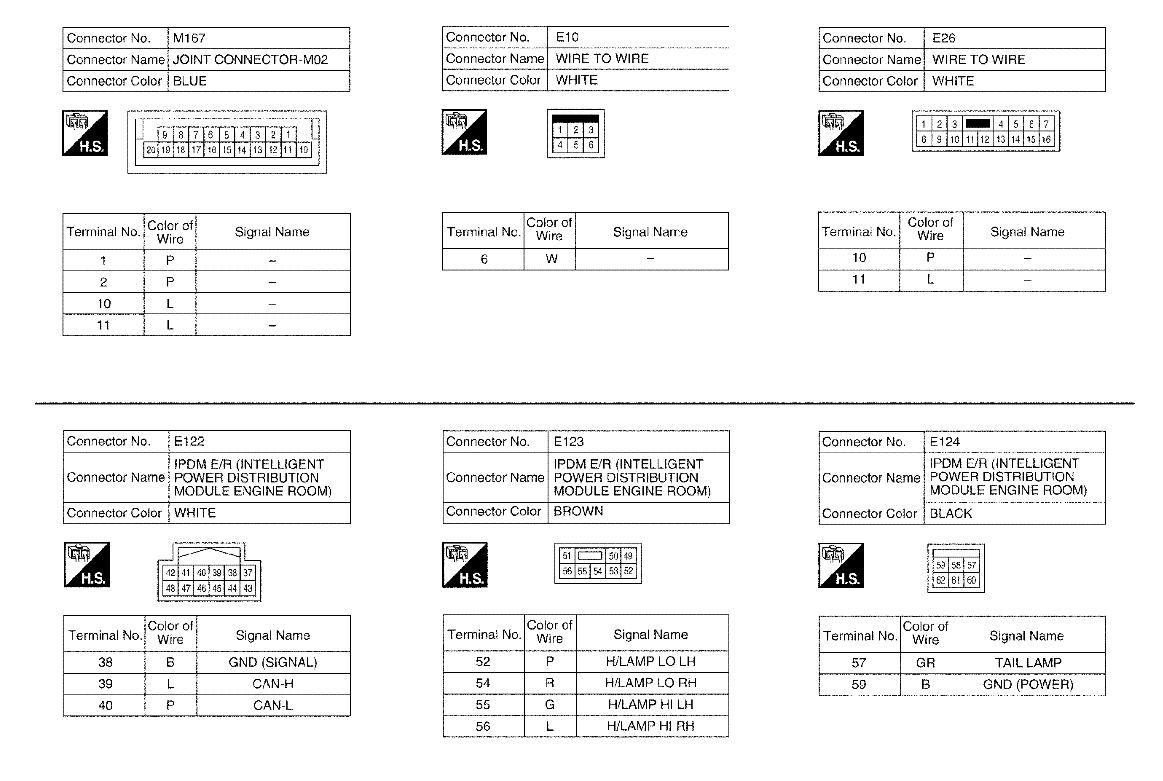

Courtesy of SUZUKI OF AMERICA CORP.

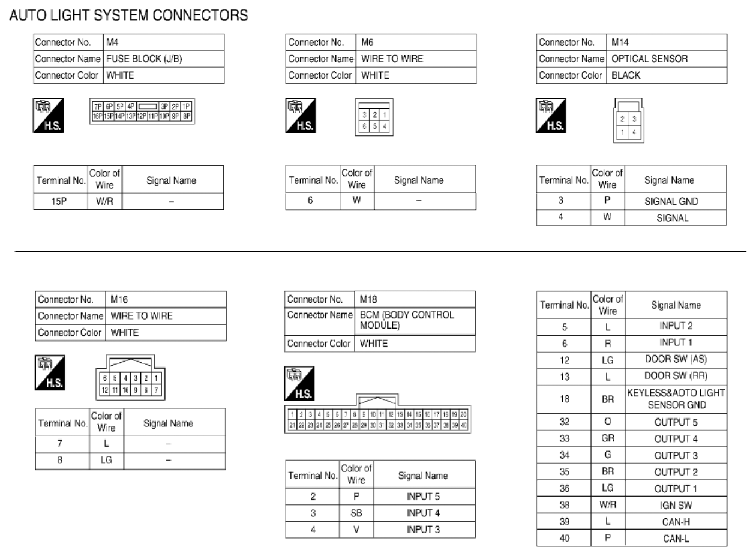

Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
