Ignition Power Supply: Wiring Diagram

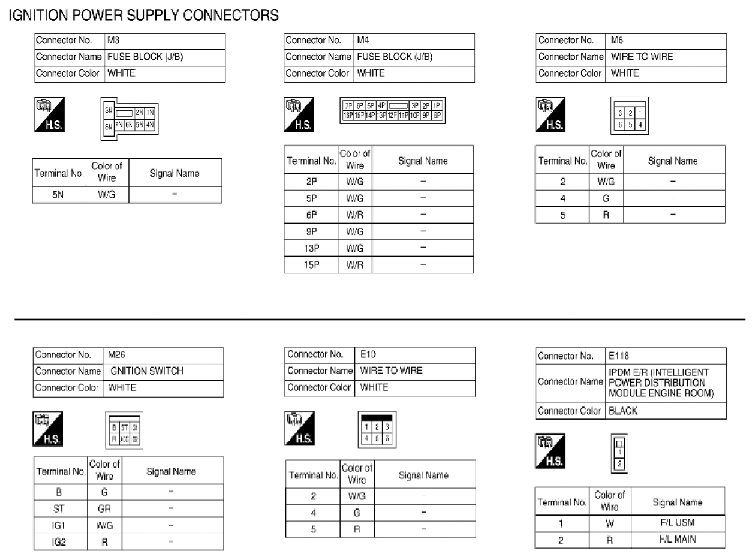

Fig 1: Ignition Power Supply - Wiring Diagram (1 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

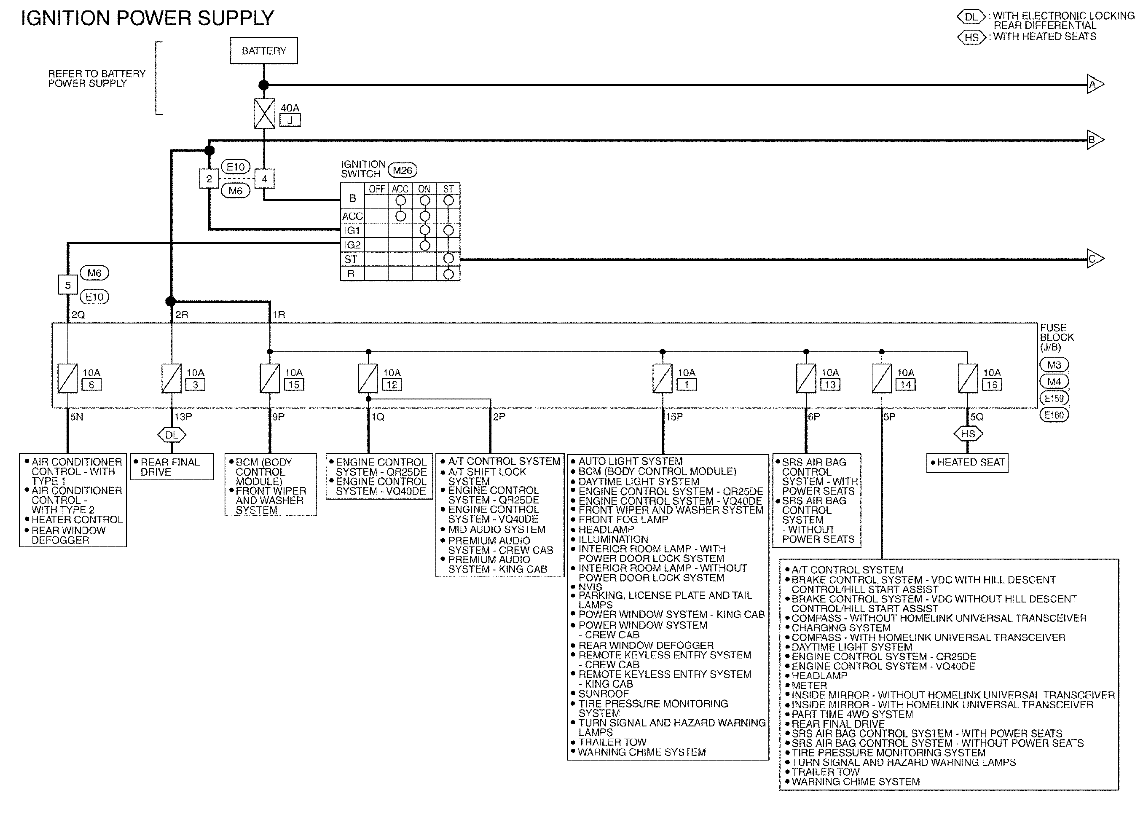

Fig 2: Ignition Power Supply - Wiring Diagram (2 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

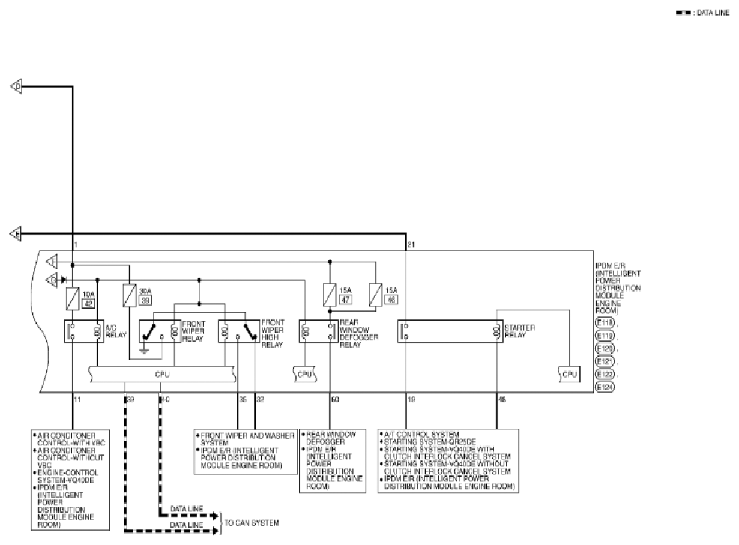

Fig 3: Ignition Power Supply - Wiring Diagram (3 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

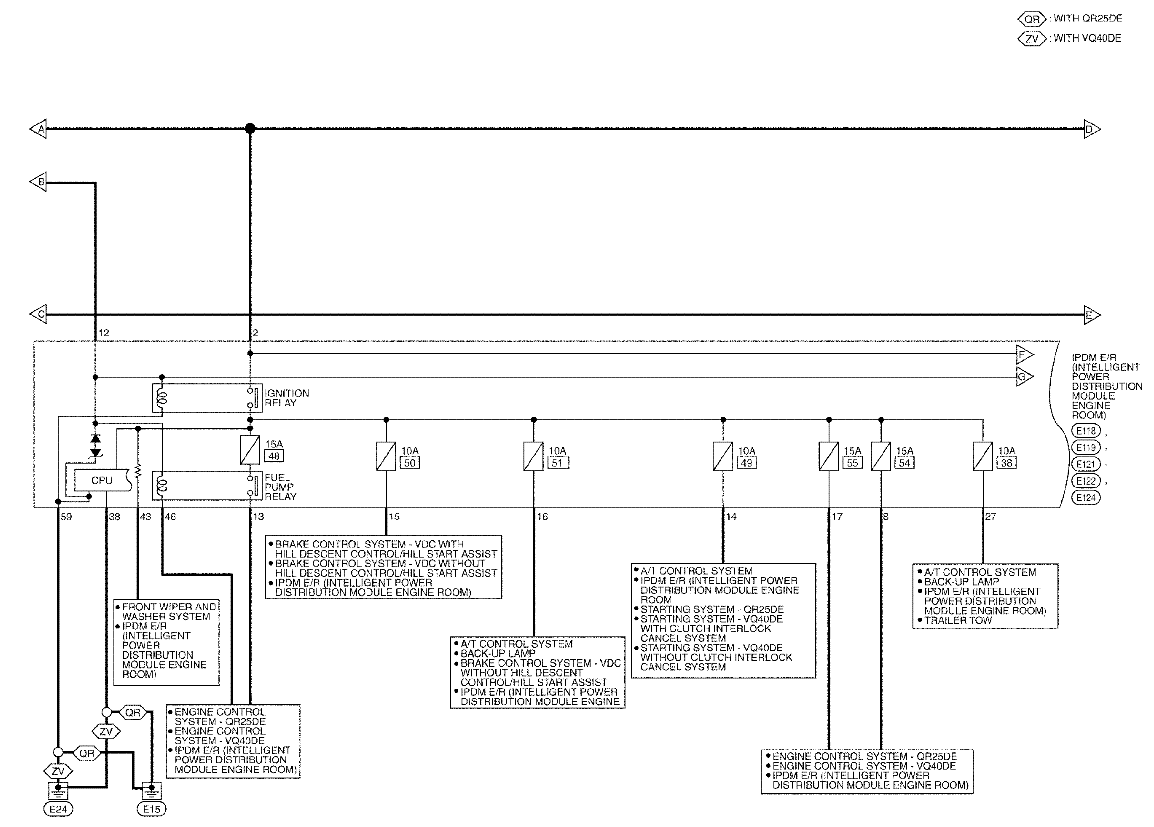

Fig 4: Ignition Power Supply - Wiring Diagram (4 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

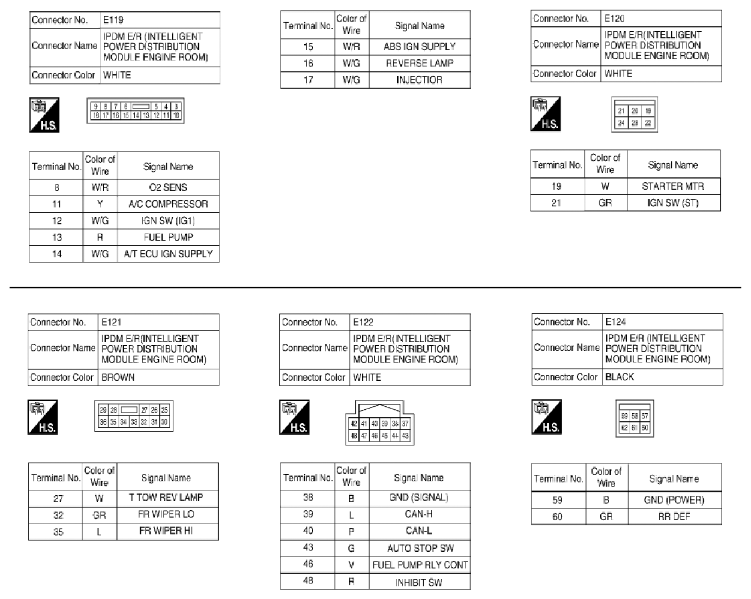

Fig 5: Ignition Power Supply - Wiring Diagram (5 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

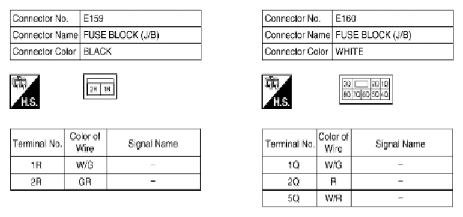

Fig 6: Ignition Power Supply - Wiring Diagram (6 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.
