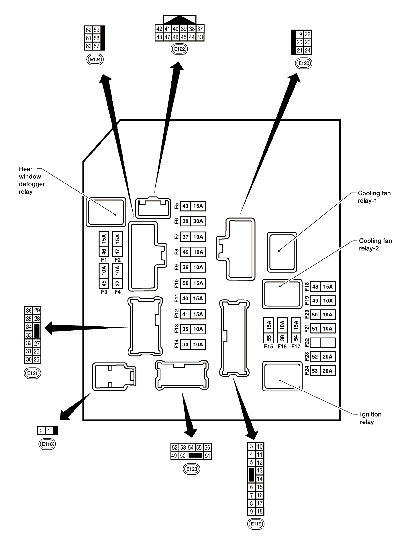

IPDM E/R Terminal Arrangement
IPDM E/R RELAY IDENTIFICATION - TYPE B
| RELAY DESCRIPTION |
|---|
| Rear Window Defogger Relay |
| Cooling Fan Relay - 1 |
| Cooling Fan Relay - 2 |
| Ignition Relay |
|
CAUTION:
IPDM E/R Integrated Relays Cannot Be Removed.
|
NOTE:
Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R. The other numbers represent the fuse numbers as they appear in the wiring diagrams.
