Equator Base
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Wiring Systems
>>
Power Supply Diagram
>>
Fuse, Fusible Link and Relay Box: Terminal Arrangement
>>
Fuse And Fusible Link Box
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuse And Fusible Link Box

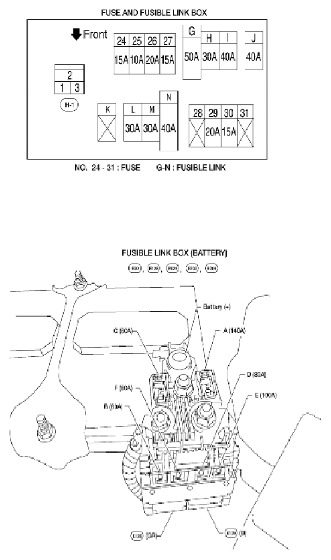

Fig 1: Identifying Fuse And Fusible Link Box - Terminal Arrangement
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
