Front Door RH Harness

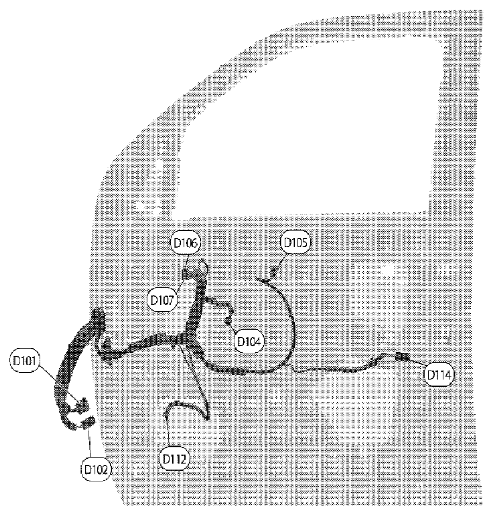

Fig 1: Identifying Front Door RH Harness
G06446074Courtesy of SUZUKI OF AMERICA CORP.
FRONT DOOR RH HARNESS REFERENCE CHART

D101 W/12 : To M75 D107 B/10 Door mirror RH (without heated mirror)
D102 W/16 : To M74 D110 W/2 : Front door speaker RH (crew cab with premium audio system)
D104 BR/2 : Front power window motor RH D111 W/2 : Front door speaker RH (king cab with premium audio system)
D105 W/12 : Power window and door lock/unlock switch RH D112 W/2 : Front door speaker RH (with base audio system)
D106 B/3 Door mirror RH (without heated mirror) D114 BR/2 : Front door lock actuator RH
