Engine Room Harness (Passenger Compartment)

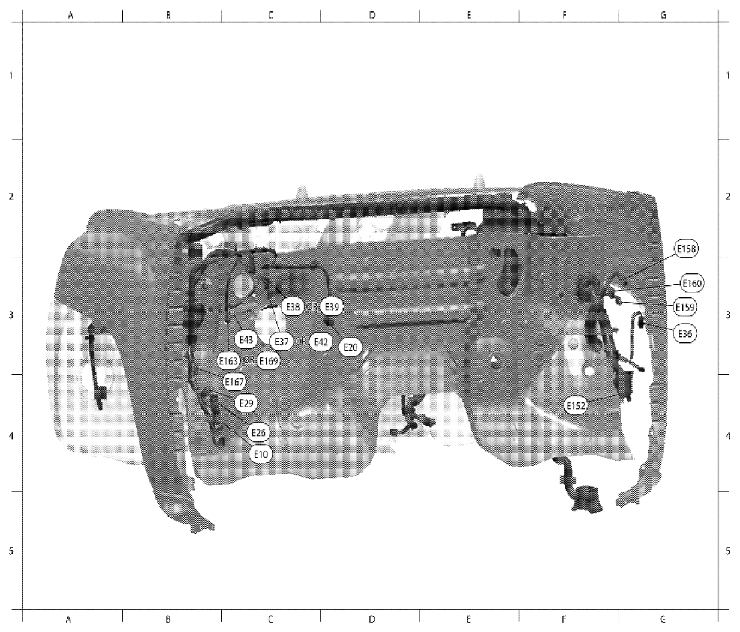

Fig 1: Identifying Engine Room Harness (Passenger Compartment)

Courtesy of SUZUKI OF AMERICA CORP.

Refer to "ENGINE ROOM HARNESS (LH VIEW) " for continuation of engine room harness.

ENGINE ROOM HARNESS REFERENCE CHART

C4	E10	W/6	: To M6	C3	E43	L/2	: ASCD clutch switch
D3	E20	B/6	: Accelerator pedal position (APP) sensor	F4	E152	SMJ	: To M31
C4	E26	W/16	: To M91	G2	E158	B/1	: Fuse block (J/B)
C4	E29	Y/4	: To M10	G3	E159	B/2	: Fuse block (J/B)
G3	E36	W/2	: To B102	G3	E160	W/8	: Fuse block (J/B)
C3	E37	BR/2	: ASCD brake switch (with M/T)	C3	E163	L/2	: Clutch interlock switch (with clutch interlock cancel system)
C3	E38	B/2	: Stop lamp switch (with M/T)	C4	E167	B/2	: Diode-3
D3	E39	W/4	: Stop lamp switch (with A/T)	C4	E169	L/2	: Clutch interlock switch (without clutch interlock cancel system)
C3	E42	BR/2	: ASCD clutch switch (with A/T)
