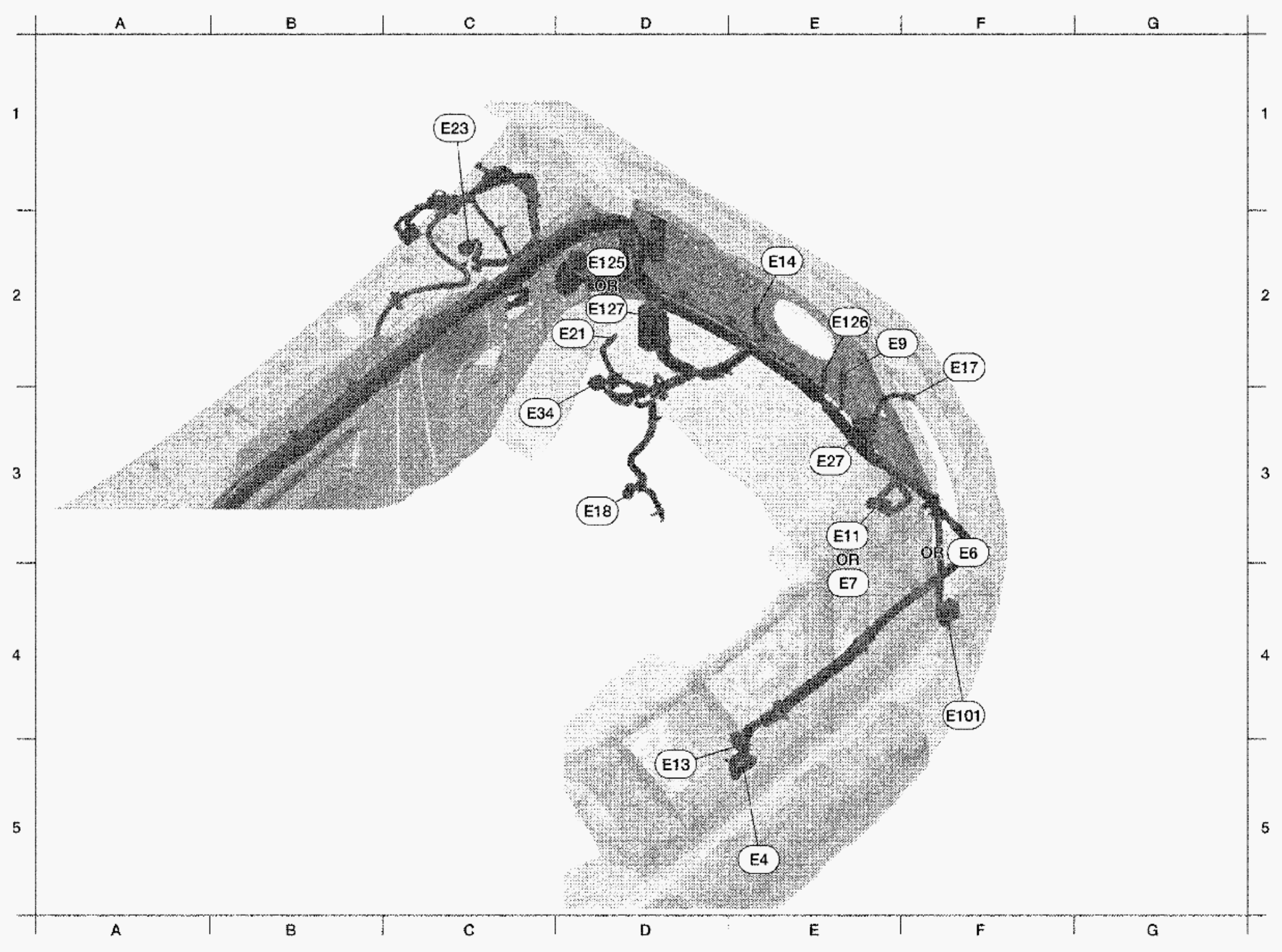

Engine Room Harness (LH View)
Refer to "ENGINE ROOM HARNESS (RH VIEW) " for continuation of engine room harness.
ENGINE ROOM HARNESS REFERENCE CHART
| E3 | E3 | B/1 | : Horn (with single note horn) | D2 | E21 | GR/2 | : Brake fluid level switch |
| E5 | E4 | Y/2 | : Crash zone sensor | C1 | E23 | GR/5 | : Front wiper motor |
| F3 | E6 | B/2 | : Horn (with dual note horn) | E3 | E27 | GR/3 | : Front combination lamp LH |
| E4 | E7 | B/3 | : Front combination lamp LH (headlamp) (with daytime light system) | D3 | E31 | B/3 | : Front pressure sensor |
| F2 | E9 | - | : Body ground | C3 | E34 | W/8 | : To B40 |
| E3 | E11 | B/3 | : Front combination lamp LH (headlamp) (without daytime light system) | F4 | E101 | B/2 | : Front fog lamp LH |
| D5 | E13 | B/2 | : Ambient sensor 2 | D2 | E125 | B/47 | : ABS actuator and electric unit (control unit) (without VDC) |
| E2 | E14 | - | : Body ground | E2 | E126 | - | : Body ground |
| F2 | E17 | GR/2 | : Front combination lamp LH (side marker) | D2 | E127 | B/47 | : ABS actuator and electric unit (control unit) (with VDC) |
| D3 | E18 | GR/2 | : Front wheel sensor LH | F3 | E162 | B/1 | : Horn (with singal note horn) |
