Body Harness (King Cab Models)

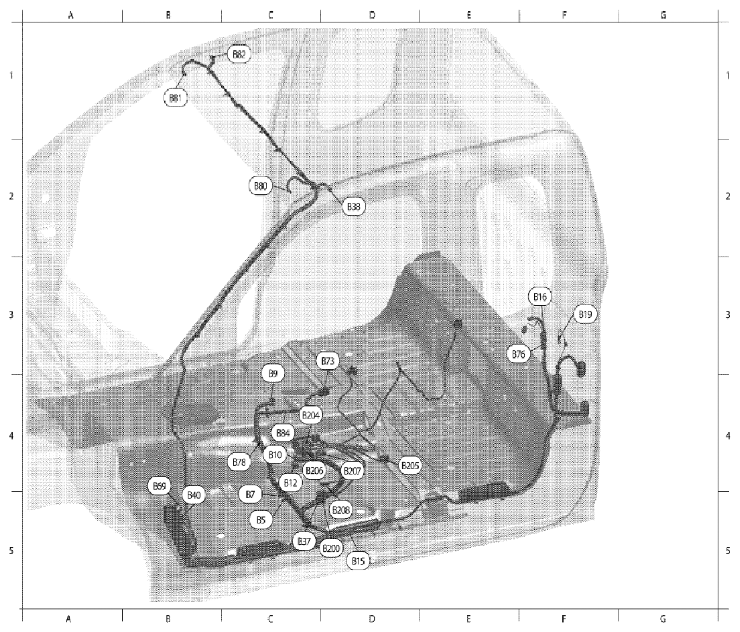

Fig 1: Identifying Body Harness (King Cab Models)

Courtesy of SUZUKI OF AMERICA CORP.

BODY HARNESS REFERENCE CHART (KING CAB MODELS)

C5	B7	-	: Body ground	F3	B76	W/2	: Rear door speaker LH (with base audio system)
C4	B9	Y/12	: Air bag diagnosis sensor unit	C4	B78	Y/2	: To B157
C4	B10	Y/2	: Front LH side air bag module	C2	B80	W/2	: Vanity lamp LH
D4	B12	W/3	: Seat belt buckle switch LH	B1	B81	W/2	: Vanity lamp RH
D5	B15	Y/2	: LH side air bag (satellite) sensor	C1	B82	Y/2	: RH side curtain air bag module
F3	B16	W/8	: To D216	C4	B84	B/1	: Parking brake switch
F3	B19	-	: Body ground	Front seat LH harness
C5	B37	W/8	: To B200	D5	B200	W/16	: To B37
D2	B38	Y/2	: LH side curtain air bag module	C4	B204	GR/2	: Sliding motor LH
B5	B40	W/8	: To E34	D4	B205	W/2	: Reclining motor LH
B4	B69	SMJ	: To M40	C4	B206	GR/2	: Lifting motor (front)
D3	B73	B/6	: Yaw rate/side/decel G sensor	D4	B207	GR/2	: Lifting motor (rear)
F3	B75	W/2	: Rear door speaker LH (with premium audio system)	D5	B208	W/10	: Power seat switch LH
