Passenger Compartment

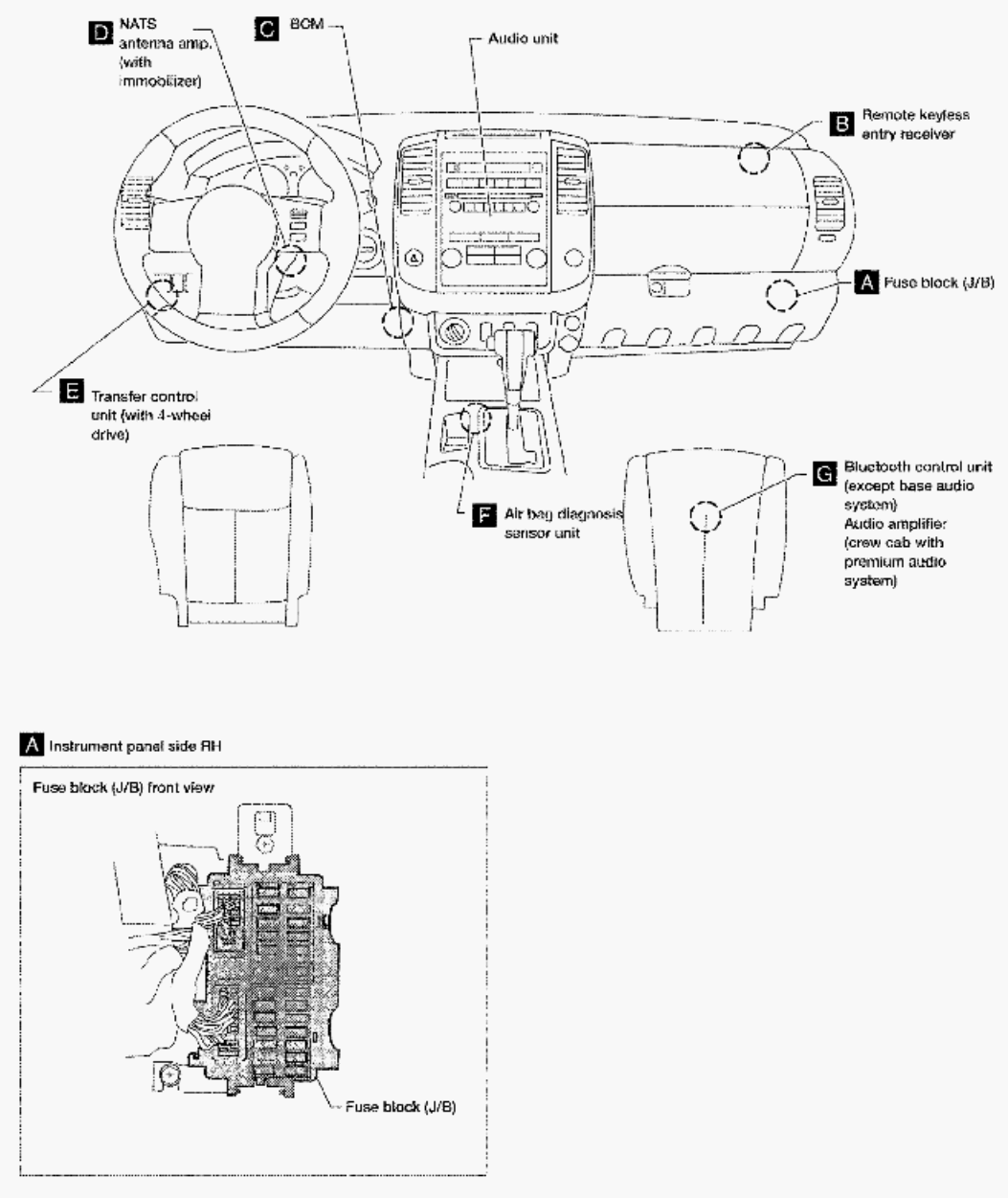

Fig 1: Identifying Electrical Units Location - Passenger Compartment (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

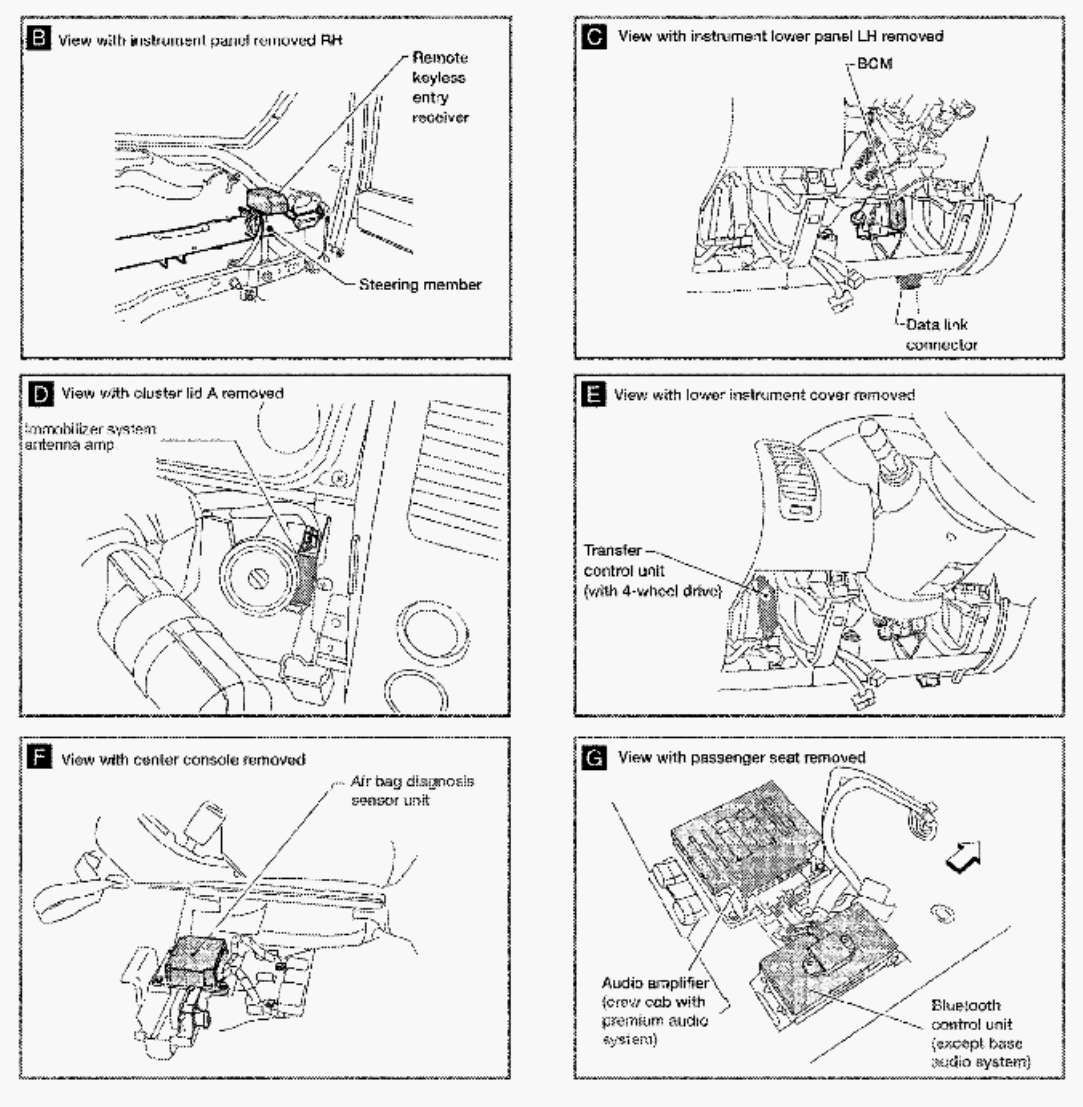

Fig 2: Identifying Electrical Units Location - Passenger Compartment (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
