Wheel Hub: Removal and Installation: Installation

Installation is in the reverse order of removal.

• Use new bolts when installing the wheel hub and bearing assembly.
• When installing disc rotor on wheel hub and bearing assembly, position the disc rotor according to alignment mark.

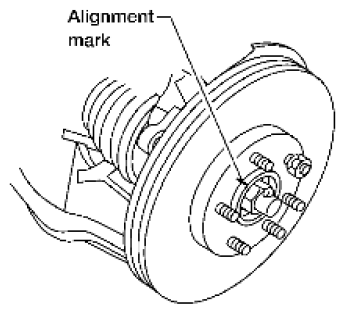

  Fig 1: Identifying Alignment Mark On Disc Rotor And Wheel Hub

  Courtesy of SUZUKI OF AMERICA CORP.

  (When not using the alignment mark, refer to [FRONT BRAKE CALIPER AND DISC ROTOR: REMOVAL AND INSTALLATION ])

• When installing wheel and tire, refer to [WHEEL AND TIRE ASSEMBLY: ADJUSTMENT ]
