Parking Brake Control: Removal and Installation: Installation

Installation is in the reverse order of removal.

• The control lever assembly bolts must be installed in the following order:

  Control lever assembly bolt: 12.7 N.m (1.3 kg-m, 9 ft-lb)

  1. Install and temporarily tighten the control lever assembly bolts (A), (B) and (D).

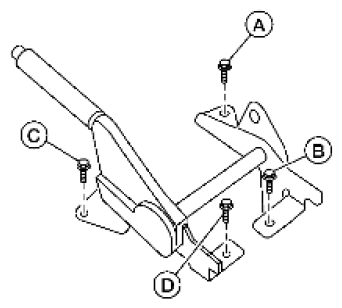

     Fig 1: Identifying Control Lever Assembly Bolts

     Courtesy of SUZUKI OF AMERICA CORP.
  2. Install and tighten the control lever assembly bolt (C) to specification.
  3. Install and tighten the control lever assembly bolt (D) to specification.
  4. Install and tighten the control lever assembly bolt (A) to specification.
  5. Install and tighten the control lever assembly bolt (B) to specification.
• Adjust the parking brake. Refer to [Service Data and Specifications ].
  CAUTION:

  • Do not reuse the adjusting nut, use a new adjusting nut for installation.
  • Install the control lever assembly bolts in the specified order and pattern.
