Front Disc Rotor: Inspection: Thickness

Check thickness of the disc rotor using a micrometer. Replace disc rotor if thickness is less then the repair limit thickness.

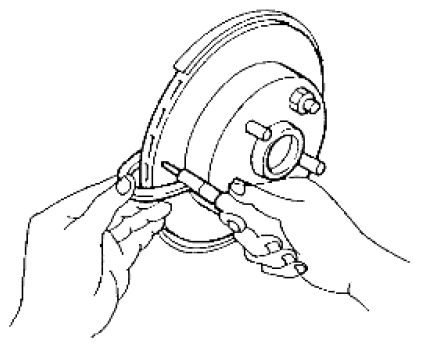

Fig 1: Checking Thickness Of Disc Rotor Using Micrometer

Courtesy of SUZUKI OF AMERICA CORP.

Standard thickness (new):  Refer to [SERVICE DATA AND SPECIFICATIONS ].

Repair limit thickness:  Refer to [SERVICE DATA AND SPECIFICATIONS ].

Maximum uneven wear (measured at 8 positions):  Refer to [SERVICE DATA AND SPECIFICATIONS ].
