Brake Pedal Inspection and Adjustment: Inspection: Notes

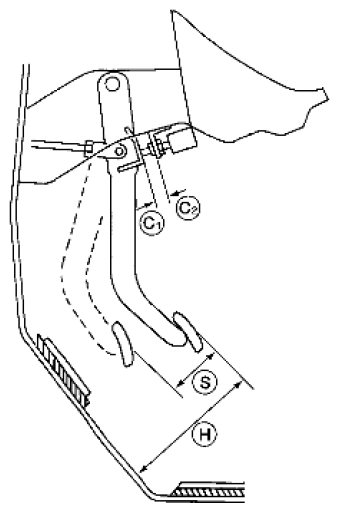

- Inspect the brake pedal free height (H) from the floor using Tool at a 90° angle to the floor as shown.
Courtesy of SUZUKI OF AMERICA CORP.
Tool number: - (J-46532)
- Adjust the brake pedal height to specifications.
