Brake Master Cylinder: Removal and Installation: Installation

Installation is in the reverse order of removal.

• Apply silicone grease to the brake booster at position (A) as shown, be sure the O-ring is in proper position when installing the master cylinder assembly to the brake booster.

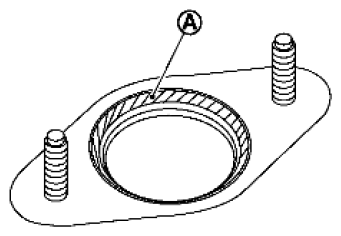

  Fig 1: Applying Silicon Grease To Brake Booster At Position

  Courtesy of SUZUKI OF AMERICA CORP.
  CAUTION: Do not reuse O-ring.
• Use new master cylinder assembly nuts for installation.
  CAUTION: Do not reuse the master cylinder assembly nuts.
• Refill the brake fluid and bleed the air. Refer to [BRAKE FLUID: BLEEDING BRAKE SYSTEM ].
  CAUTION:

  • Refill using recommended brake fluid. Refer to [BRAKE FLUID: DRAIN AND REFILL ].
  • Do not reuse drained brake fluid.
• Adjust the brake pedal. Refer to [BRAKE PEDAL INSPECTION AND ADJUSTMENT ].
