Wind Deflector: Removal

  1. Open the sunroof.
  2. Remove screws from the left, center, and right side wind deflector holders.

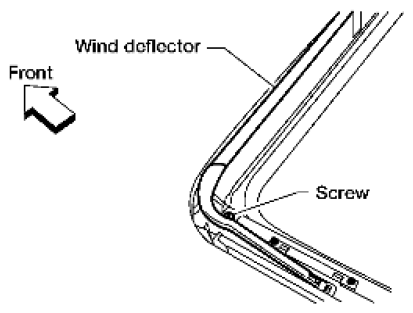

    Fig 1: Identifying Right Side Wind Deflector And Screw
    G06446597Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the wind deflector from the sunroof frame assembly.
