Sunroof System: Removal and Installation: Sunshade: Removal

  1. Remove the sunroof frame assembly. Refer to [SUNROOF SYSTEM: REMOVAL AND INSTALLATION ].
  2. Remove the sunshade stoppers (two points) from the rear end of the sunroof unit.

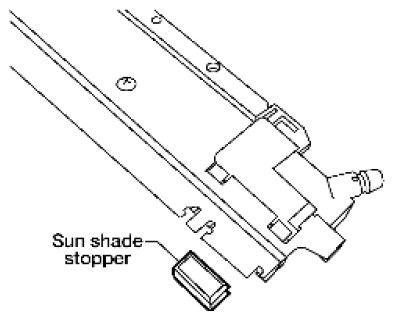

    Fig 1: Identifying Sunshade Stoppers
    G06446598Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the sunshade assembly from the rear end of the sunroof frame assembly.
