Sunroof Motor Assembly: Removal

CAUTION:

When removing the sunroof motor, be sure that the sunroof is in the fully closed position.
Never run the removed motor as a single unit.

Position the sunroof assembly in the fully closed position.
Remove the front roof console assembly. Refer to [HEADLINING: REMOVAL AND INSTALLATION ]
Disconnect the harness connector from the sunroof motor assembly.

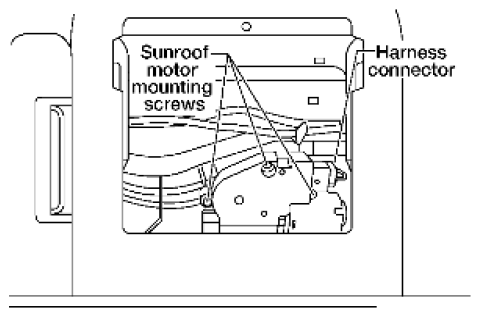

Fig 1: Identifying Harness Connector And Sunroof Motor Mounting Screws
Courtesy of SUZUKI OF AMERICA CORP.
Remove the mounting screws and the sunroof motor assembly.
