Sunroof Motor Assembly: Installation
CAUTION:
Before installing the sunroof motor assembly, be sure to place the link and wire assembly in the symmetrical and fully closed position.

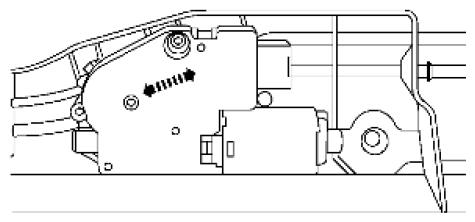

- Move the sunroof motor assembly laterally little by little so that the gear is completely engaged into the wire on the sunroof unit and the mounting surface becomes parallel. Then secure the motor with bolts.
- Connect the harness connector to the sunroof motor assembly.
- Install the front roof console assembly. Refer to [HEADLINING: REMOVAL AND INSTALLATION ]
- Reset the sunroof motor memory. Refer to [Additional Service When Replacing Control Unit ]
