Glass Lid Assembly: Installation

  1. Position glass lid assembly to sunroof unit.
  2. Install the glass lid assembly screws. (First tighten left front bolt, then tighten right rear bolt on glass lid to prevent lid from moving while tightening other bolts.)

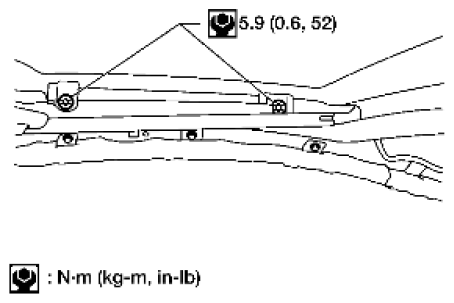

    Fig 1: Identifying Glass Lid Assembly Screws And Bolts
    G06446596Courtesy of SUZUKI OF AMERICA CORP.
  3. Adjust the glass lid if necessary. Refer to [SUNROOF SYSTEM: ADJUSTMENT ].
