Drain Hoses: Removal

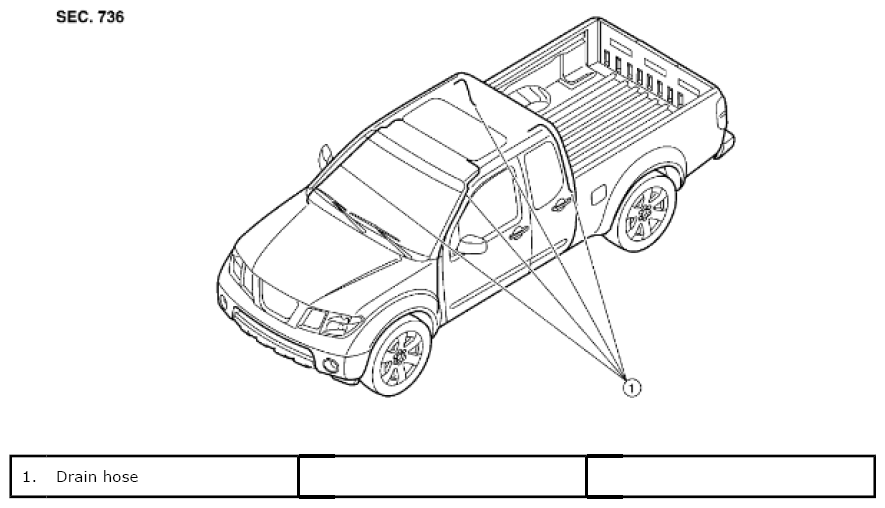

Fig 1: Identifying Drain Hoses

Courtesy of SUZUKI OF AMERICA CORP.

Remove the headlining. Refer to [HEADLINING: REMOVAL AND INSTALLATION ]

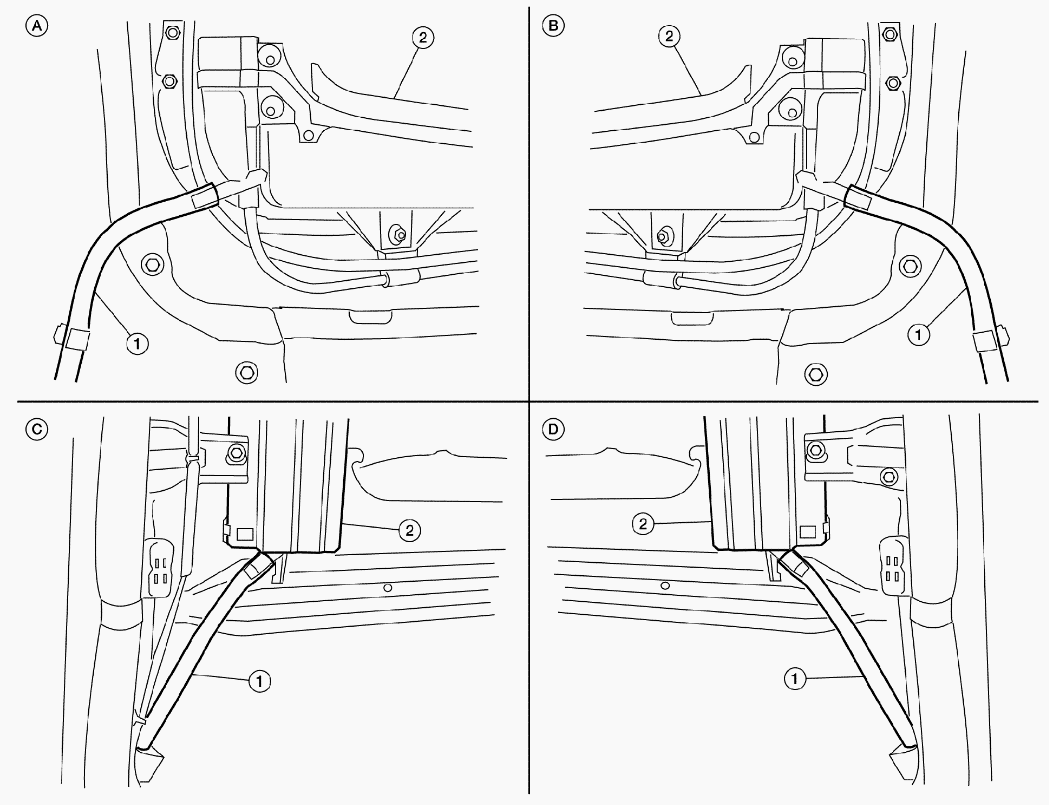

Fig 2: Identifying Sunroof Frame Assembly And Drain Hoses (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Identifying Sunroof Frame Assembly And Drain Hoses (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Visually check the drain hoses for proper connections, damage or deterioration.
Remove each drain hose and check visually for damage, cracks or deterioration.
Pour water through the drain hose to check for damage.
- If any damage is found, replace the drain hose.
