Sunroof System: Adjustment: Notes

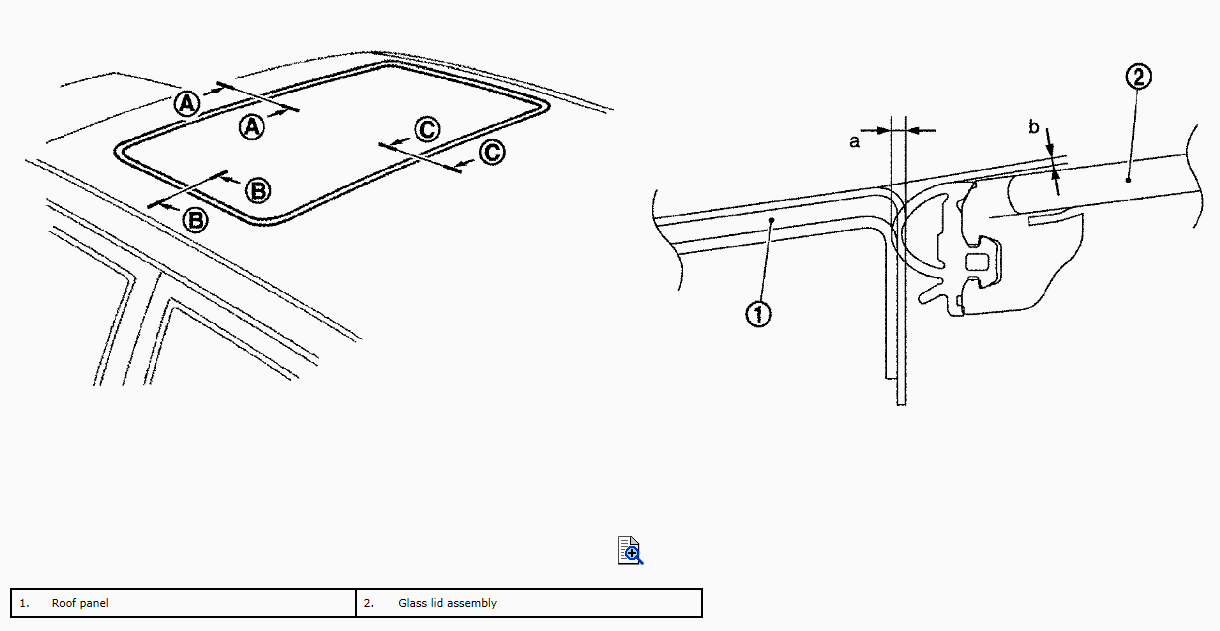

Inspect then measure the gap and height difference between the glass lid assembly and roof panel; compare to specifications. Determine which procedure to follow based on results of measurements.
SUNROOF GAP ADJUSTMENT TABLE
| Portion | a (Gap) | b (Surface height difference) |
| A - A | 1.4 ± 0.9 (0.055 ± 0.035 in) | -0.8 ± 1.5 (-0.031 ± 0.059) |
| B - B | 1.0 ± 0.9 (0.039 ± 0.035 in) | -0.8 ± 1.5 (-0.031 ± 0.059) |
| C - C | 1.4 ± 0.9 (0.055 ± 0.035 in) | -0.8 ± 1.5 (-0.031 ± 0.059) |
