Windshield Glass: Removal and Installation: Removal
- Remove inside mirror. Refer to [INSIDE MIRROR: REMOVAL ].
- Remove the front pillar upper finisher. Refer to BODY SIDE TRIM: REMOVAL AND INSTALLATION .
- Remove cowl top cover. Refer to [COWL TOP: REMOVAL AND INSTALLATION ]
- Apply a protective tape around the windshield glass to protect the painted surface from damage.
- If the windshield glass is to be reused, mark the body and the glass with mating marks.

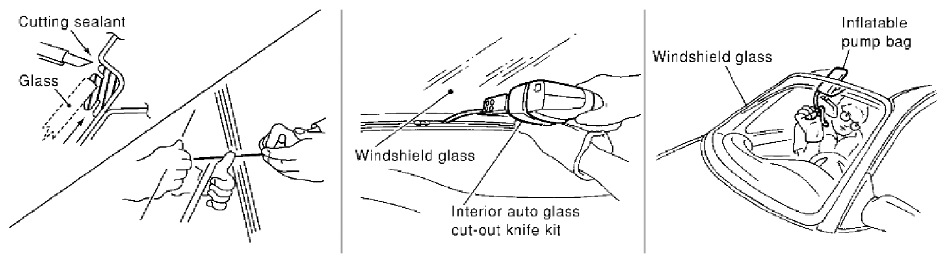

- Remove the glass using piano wire or power cutting tool and an inflatable pump bag.
WARNING:
When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent glass splinters from entering your eyes or cutting your hands.
CAUTION:
- Be careful not to scratch the glass when removing.
- Do not set or stand glass on its edge. Small chips may develop into cracks.
