Rear Power Window Switch: Removal and Installation - Rear Door Switch (If Equipped): Removal

  1. Release the four tabs (A), two on each side, then separate the front power window/door lock switch (1) - RH from the front power window/door lock switch finisher (2) - RH.

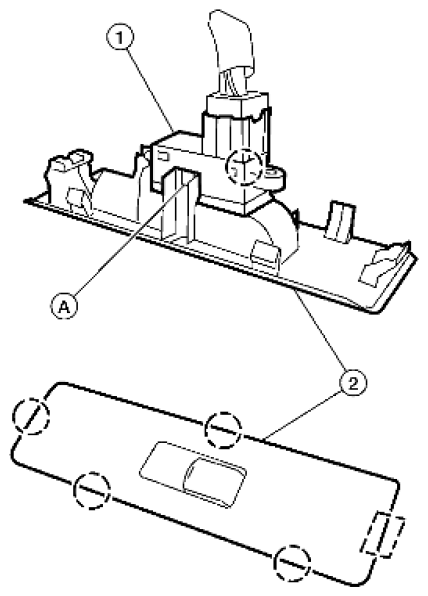

    Fig 1: Identifying Rear Power Window Switch, Finisher And Tabs
    G06443682Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION: Wrap a cloth around suitable tool to protect components from damage.
  2. Disconnect the harness connector.
  3. Remove the rear power window switch and finisher (2) assembly from the rear door finisher.
  4. Release the two tabs (A), one on each side, then separate the rear power window switch (1) from the rear power window switch finisher (2).
