Diagnosis Procedure

Regarding Wiring Diagram information, refer to [POWER WINDOW SYSTEM: WIRING DIAGRAM [CREW CAB] ].

Step	Action	YES	NO

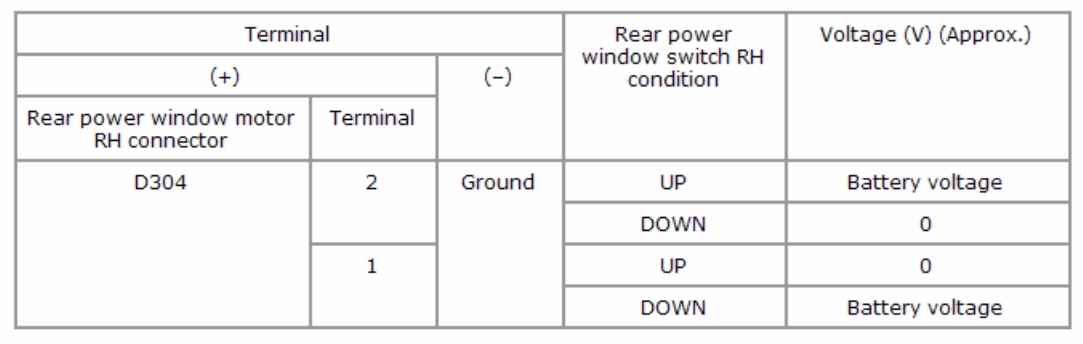

1	CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL  Disconnect rear power window motor RH. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 2. Turn ignition switch ON. 3. Check voltage between rear power window motor RH connector and ground. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. Is the measurement value within the specification?	GO TO 3	GO TO 2
2	CHECK HARNESS CONTINUITY  Turn ignition switch OFF. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 2. Disconnect rear power window switch RH. 3. Check continuity between rear power window switch RH connector (A) and rear power window motor RH connector (B). Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 4. Check continuity between rear power window switch RH connector (A) and ground. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. Is the inspection result normal?	Check rear power window switch RH. Refer to [POWER SUPPLY AND GROUND CIRCUIT CHECK [REAR POWER WINDOW SWITCH] ].	Repair or replace harness.
