Component Inspection

DIAGNOSIS PROCEDURE

Step	Action	YES	NO
1	CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH Check main power window and door lock/unlock switch. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 2. Check continuity between main power window and door lock/unlock switch (power window lock switch). (Lock operation). Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 3. Check continuity between main power window and door lock/unlock switch (power window lock switch). (Unlock operation). Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. Is the inspection result normal?	Main power window and door lock/unlock switch is OK.	Replace main power window and door lock/unlock switch. Refer to [POWER WINDOW MAIN SWITCH: REMOVAL AND INSTALLATION ].

Step

Action

YES

CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.

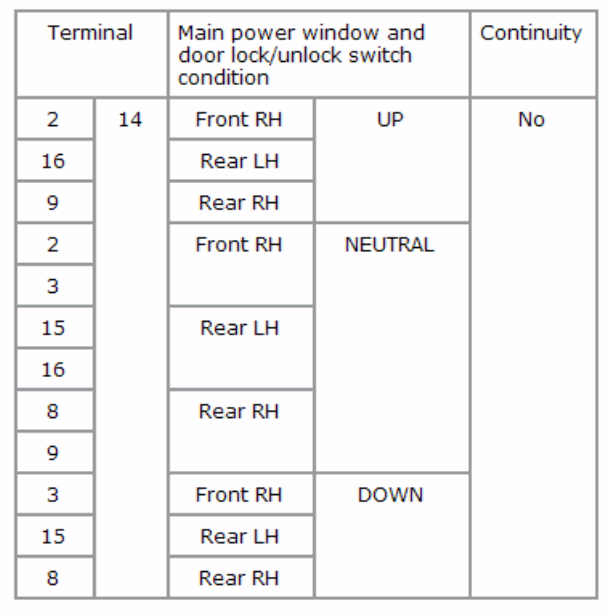

2. Check continuity between main power window and door lock/unlock switch (power window lock switch). (Lock operation).

Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.

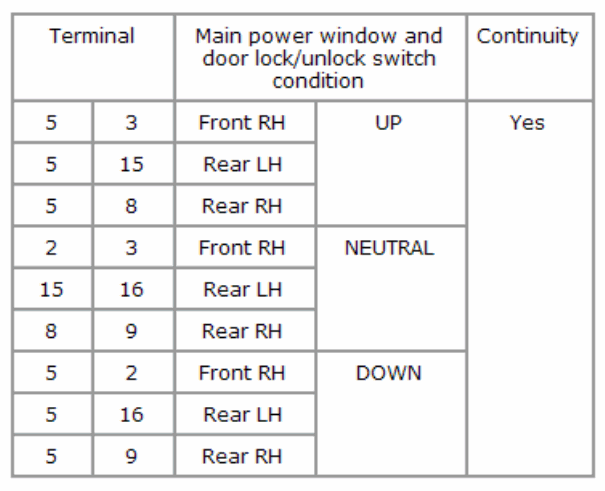

3. Check continuity between main power window and door lock/unlock switch (power window lock switch). (Unlock operation).

Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.

Is the inspection result normal?

Main power window and door lock/unlock switch is OK.

Replace main power window and door lock/unlock switch. Refer to [POWER WINDOW MAIN SWITCH: REMOVAL AND INSTALLATION ].
