Power Window And Door Lock/Unlock Switch RH Power Supply Circuit Check

DIAGNOSIS PROCEDURE

Step	Action	YES	NO

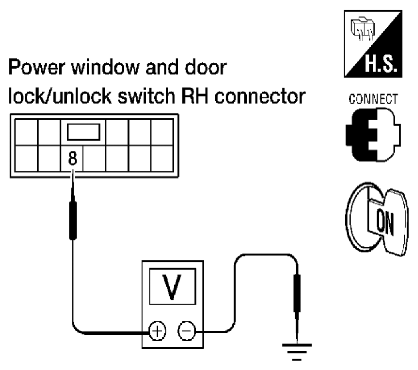

1	CHECK POWER SUPPLY CIRCUIT  Turn ignition switch ON. Courtesy of SUZUKI OF AMERICA CORP. 2. Check voltage between power window and door lock/unlock switch RH connector and ground. Courtesy of SUZUKI OF AMERICA CORP. Is the measurement value within the specification?	GO TO 3	GO TO 2

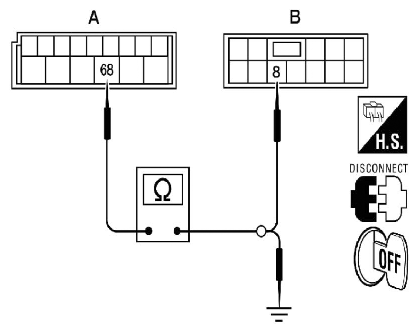

2	CHECK HARNESS CONTINUITY  Turn ignition switch OFF. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 2. Disconnect BCM and power window and door lock/unlock switch RH. 3. Check continuity between BCM connector (A) and power window and door lock/unlock switch RH connector (B). Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 4. Check continuity between BCM connector (A) and ground. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. Is the inspection result normal?	GO TO 4	Repair or replace harness.

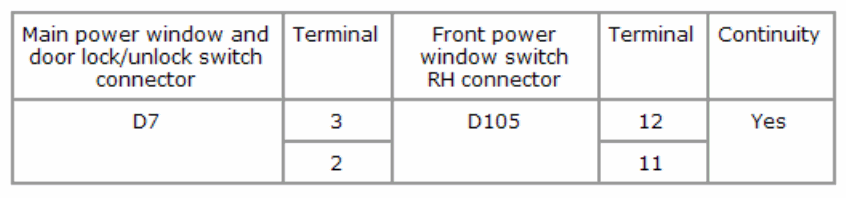

3	CHECK GROUND CIRCUIT  Turn ignition switch OFF. Disconnect power window and door lock/unlock switch RH and main power window and door lock/unlock switch. Check continuity between main power window and door lock/unlock switch connector and front power window switch RH connector. Check continuity between main power window and door lock/unlock switch connector and ground. Courtesy of SUZUKI OF AMERICA CORP. Courtesy of SUZUKI OF AMERICA CORP. Is the inspection result normal?	Replace power window and door lock/unlock switch RH. Refer to [FRONT POWER WINDOW SWITCH: REMOVAL AND INSTALLATION ].	Repair or replace harness.
4	CHECK BCM OUTPUT SIGNAL  Connect BCM. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 2. Turn ignition switch ON. 3. Check voltage between BCM connector and ground. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. Is the measurement value within the specification?	Check intermittent incident. Refer to [SERVICE INFORMATION FOR ELECTRICAL INCIDENT: INTERMITTENT INCIDENT ].	Replace BCM. Refer to [BCM (BODY CONTROL MODULE): REMOVAL AND INSTALLATION ].
