Diagnosis Procedure
Regarding Wiring Diagram information, refer to POWER WINDOW SYSTEM: WIRING DIAGRAM [CREW CAB] .
DIAGNOSIS PROCEDURE
| Step | Action | YES | NO |
|---|---|---|---|
| 1 | CHECK DOOR SWITCHES INPUT SIGNAL With SDT Check door switches ("DOOR SW-DR", "DOOR SW-AS") in Data list mode with SDT. Refer to [SDT FUNCTION (BCM - DOOR LOCK) ]
Without SDT Check voltage between BCM connector M18 or M19 terminals 12, 47 and ground. Is the inspection result normal? |
Door switch circuit is OK. | GO TO 2 |

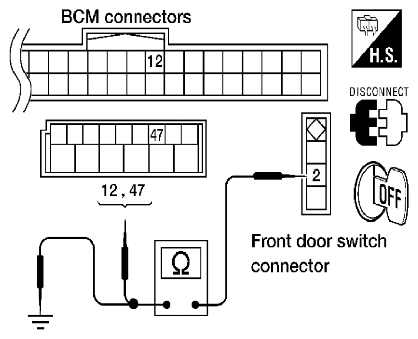

| 2 | CHECK DOOR SWITCH CIRCUIT
Is the inspection result normal? |
GO TO 3 | Repair or replace harness. |
| 3 | CHECK DOOR SWITCHES
Is the inspection result normal? |
Replace BCM. Refer to [BCM (BODY CONTROL MODULE): REMOVAL AND INSTALLATION ] | Replace door switch. |
