Power Window System: Component Parts Location - King Cab

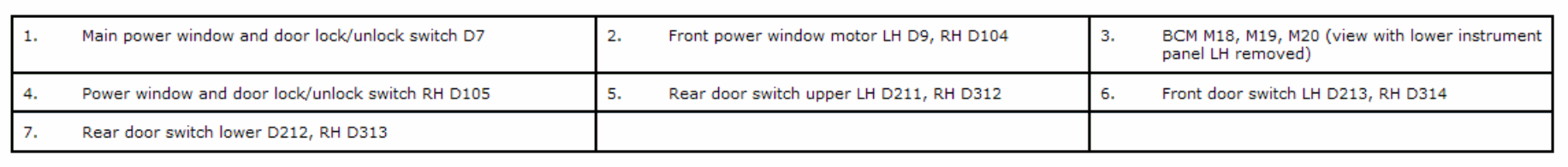

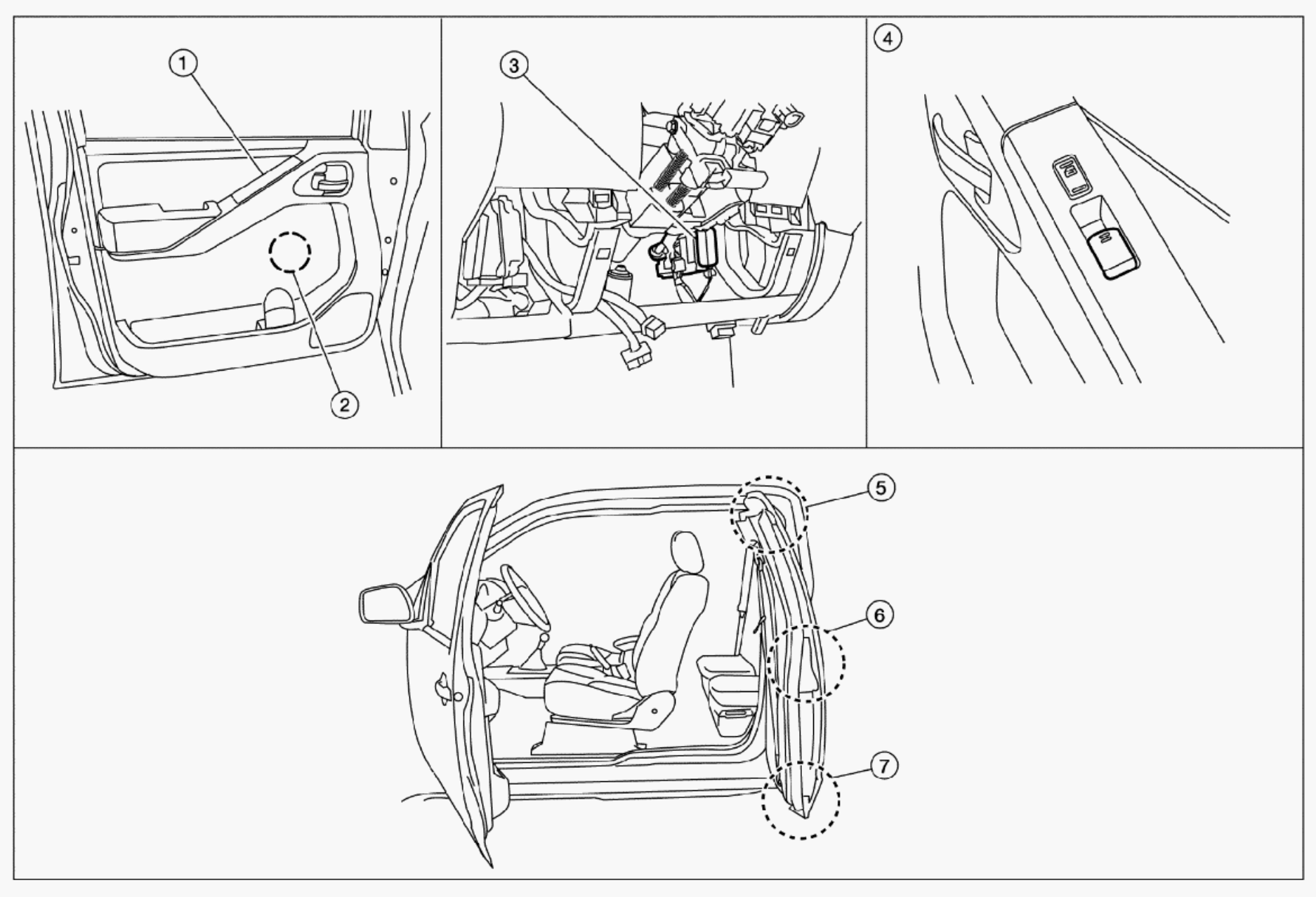

Fig 1: Identifying Power Window System Component Parts Location (King Cab) (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Identifying Power Window System Component Parts Location (King Cab) (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
