Seatback Board - Soft Seatback: Removal

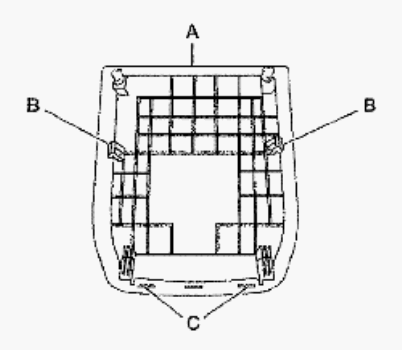

- The seatback board is attached to the seat frame with the following:
Courtesy of SUZUKI OF AMERICA CORP.
- 2 top tabs (A)
- 2 side tabs (B)
- 2 bottom clips (C) (must be replaced)
- Move seat to forward position.

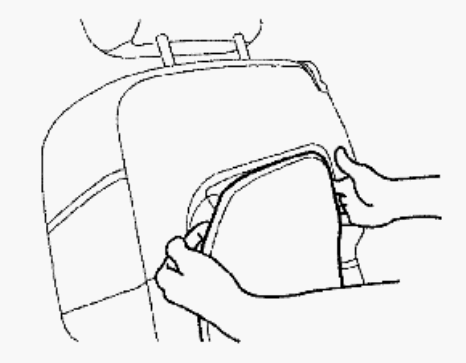

- Hold the seatback board as shown in illustration and pull the top of the seatback board down and away from the seat back frame.
Courtesy of SUZUKI OF AMERICA CORP.
- Pull the middle part of the seatback board to disengage the side tabs from the seatback frame.
Courtesy of SUZUKI OF AMERICA CORP.

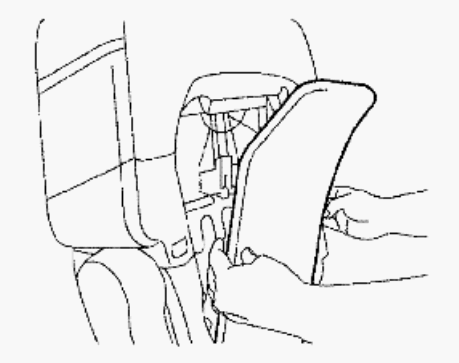

- Pull the lower part of the seatback board to disengage the bottom clips from the seatback frame.
