Front Seat: Component

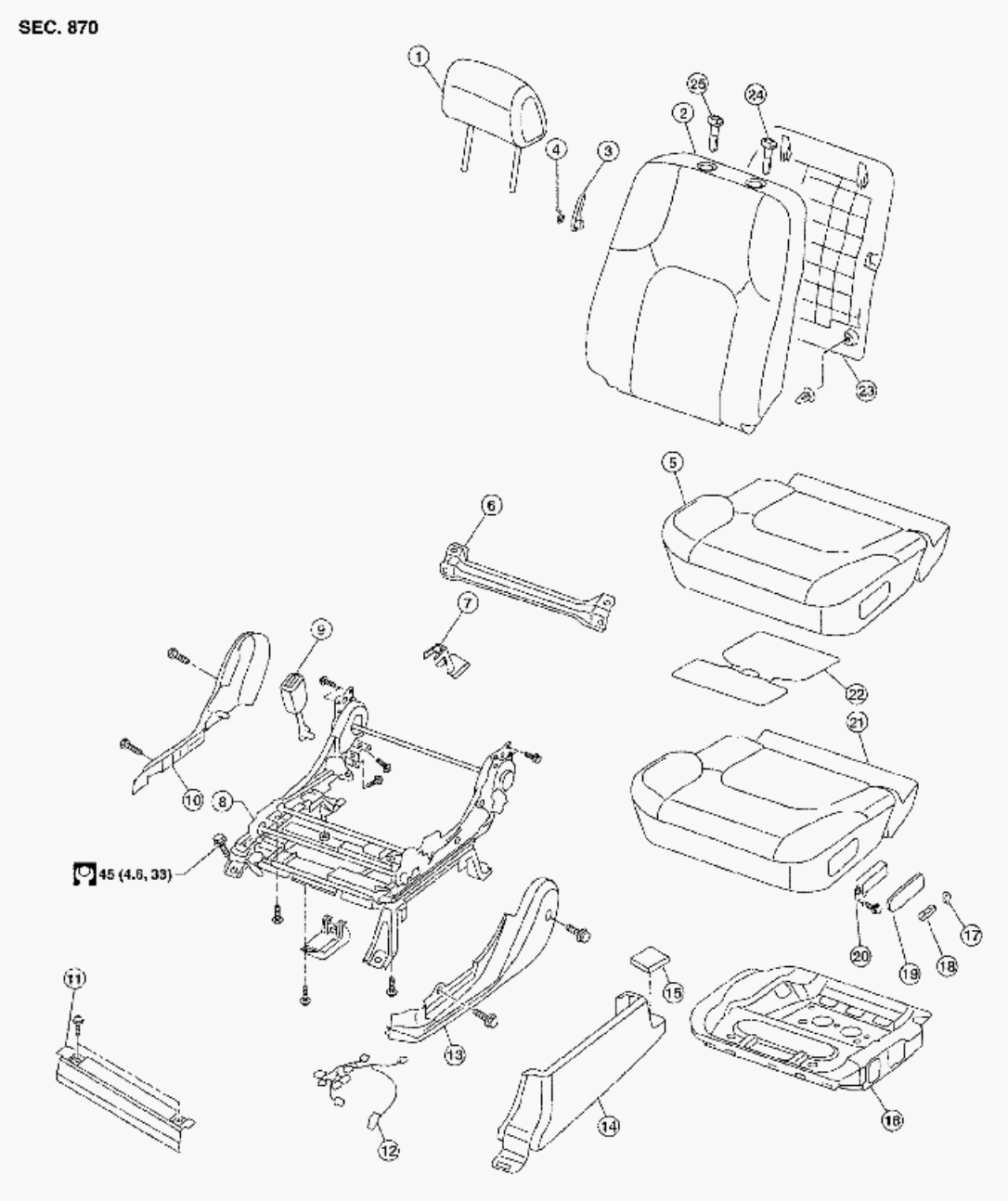

Fig 1: Front Seat Component - Power Driver Seat (1 of 2) With Torque Specifications
G00518458Courtesy of SUZUKI OF AMERICA CORP.

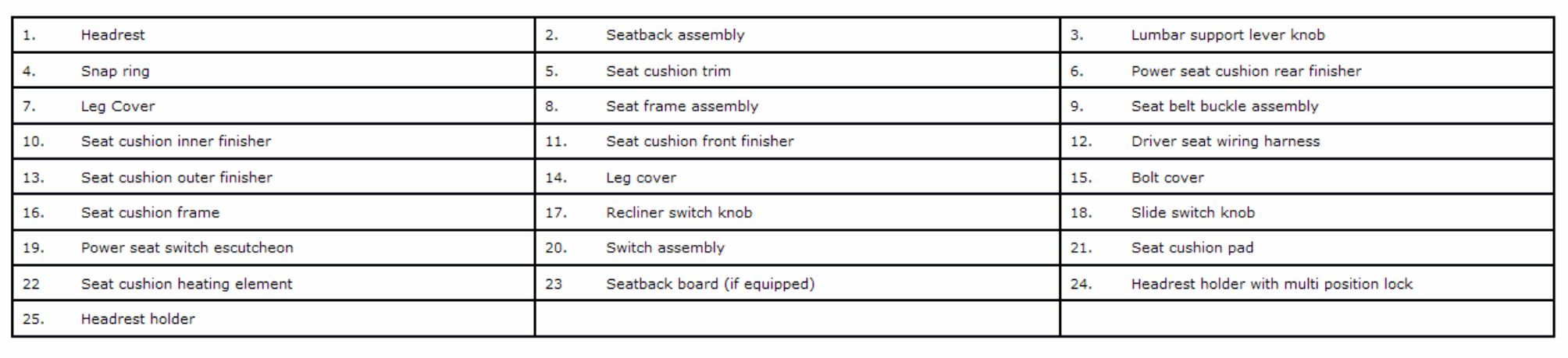

Fig 2: Identifying Front Seat Component - Power Driver Seat (2 of 2)
G00518459Courtesy of SUZUKI OF AMERICA CORP.

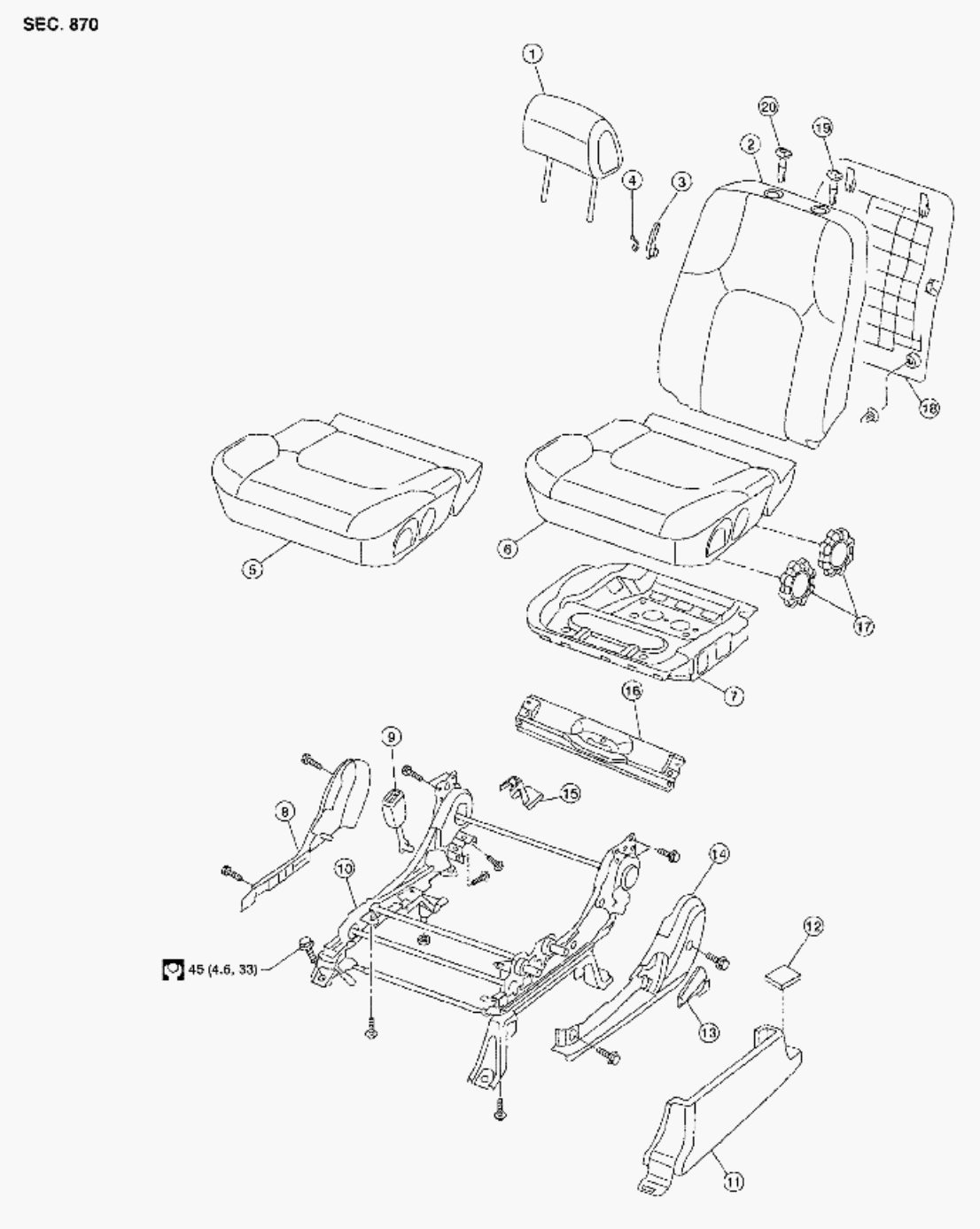

Fig 3: Front Seat Component - Manual Driver Seat (1 of 2) With Torque Specifications
G00518460Courtesy of SUZUKI OF AMERICA CORP.

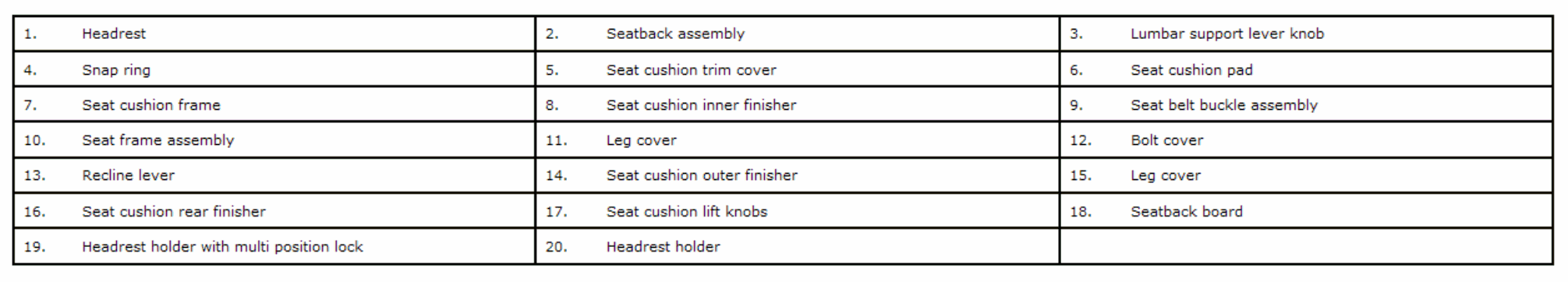

Fig 4: Identifying Front Seat Component - Manual Driver Seat (2 of 2)
G00518461Courtesy of SUZUKI OF AMERICA CORP.

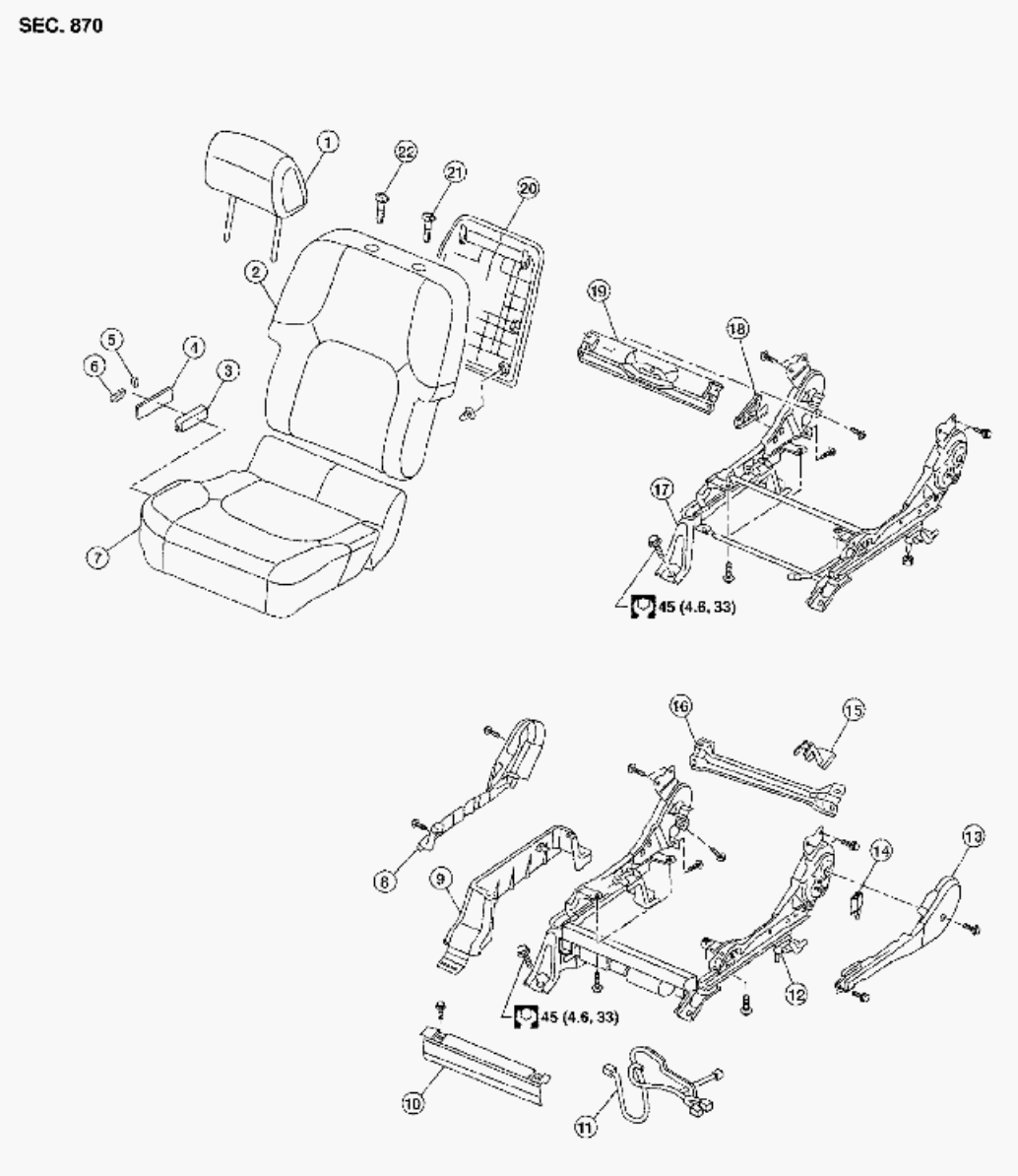

Fig 5: Front Seat Component - Conventional Passenger Seat (1 of 2) With Torque Specifications
G00518462Courtesy of SUZUKI OF AMERICA CORP.

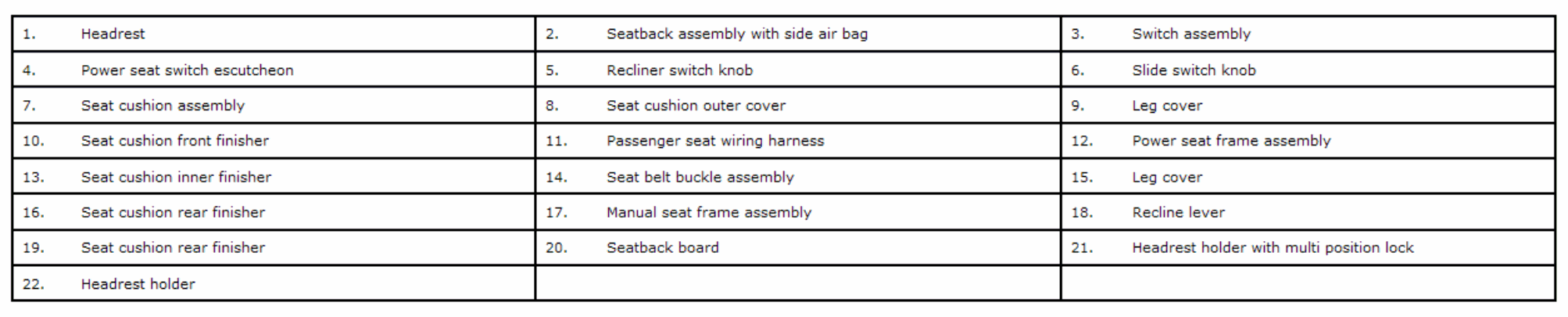

Fig 6: Identifying Front Seat Component - Conventional Passenger Seat (2 of 2)
G00518463Courtesy of SUZUKI OF AMERICA CORP.

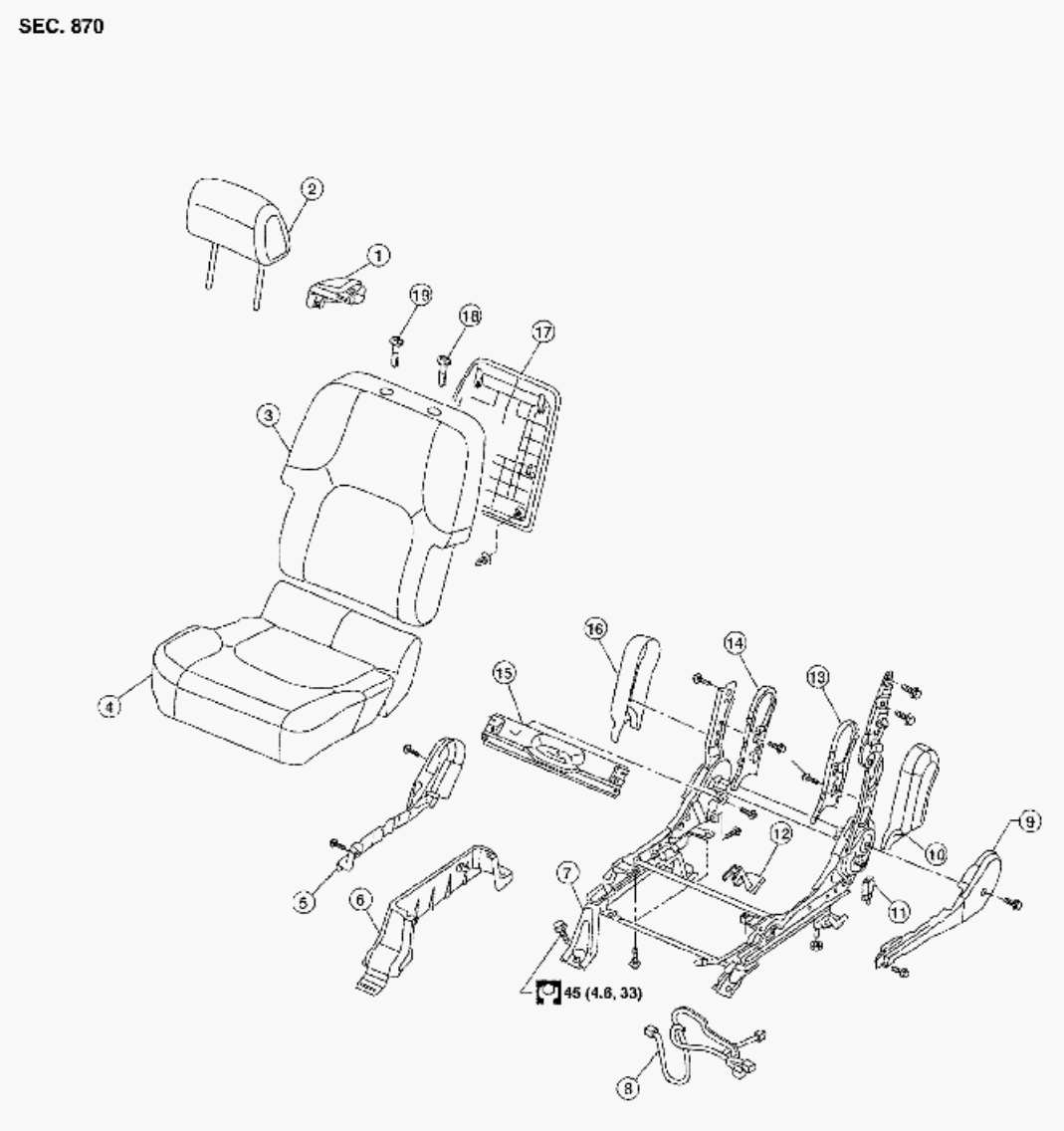

Fig 7: Front Seat Component - Fold Flat Passenger Seat (1 of 2) With Torque Specifications
G00518464Courtesy of SUZUKI OF AMERICA CORP.

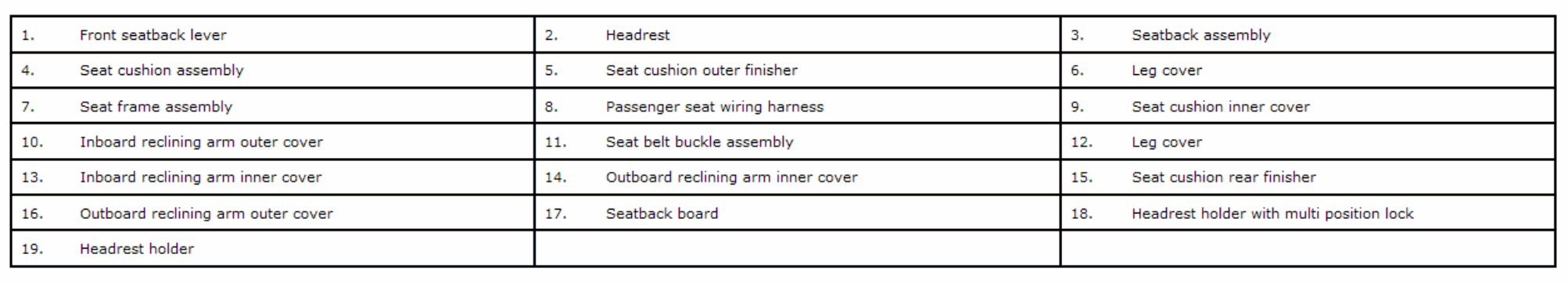

Fig 8: Identifying Front Seat Component - Fold Flat Passenger Seat (2 of 2)
G00518465Courtesy of SUZUKI OF AMERICA CORP.
