Heated Seat: Description

When handling seat, be extremely careful not to scratch heating unit (1).
To replace heating unit, seat trim and pad should be separated for the front seat cushion LH. For seatback and front seat cushion RH, complete cushion (2) or seatback assembly (3) must be replaced.

Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trim.

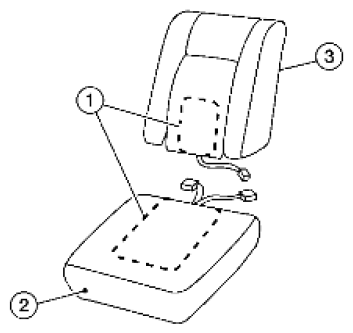

Fig 1: Identifying Heating Unit, Seat Complete Cushion And Seatback Assembly

Courtesy of SUZUKI OF AMERICA CORP.

THERMOSTAT OPERATION REFERENCE

Thermostat operation	ON	OFF
Trim temperature °C (°F)	25 -35 (77 - 95)	35 - 45 (95 - 113)
