Hood Lock Control Inspection

CAUTION: If the hood lock cable is bent or deformed, replace it.

Make sure the hood lock cable is not bent or deformed. If the cable is damaged, replace it.
Remove the front grille. Refer to FRONT GRILLE: REMOVAL AND INSTALLATION .
Make sure the secondary latch is properly engaged with the secondary striker with hood's own weight by dropping it from approx. 200 mm (7.87 in) height.

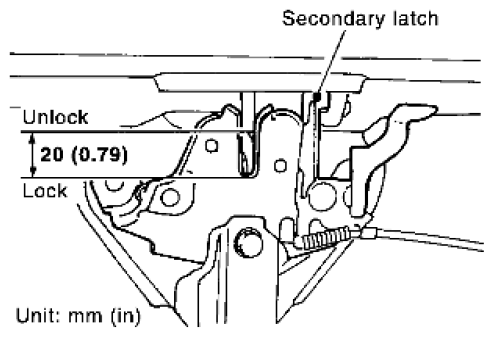

Fig 1: Identifying Secondary Latch With Bolt
Courtesy of SUZUKI OF AMERICA CORP.
While operating the hood opener, carefully make sure the front end of the hood is raised by approx. 20 mm (0.79 in). Also make sure the hood opener returns to the original position.
Check the hood lock lubrication condition. If necessary, apply "body grease" to the points shown.

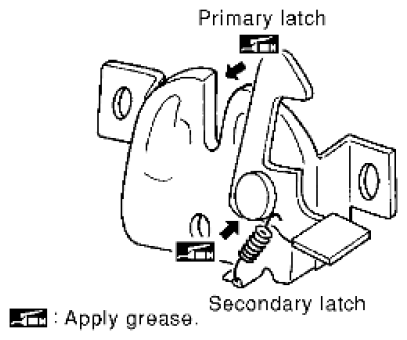

Fig 2: Locating Body Grease Applying Area
Courtesy of SUZUKI OF AMERICA CORP.
Install the front grille. Refer to FRONT GRILLE: REMOVAL AND INSTALLATION .
