Trailer Tow: System Diagram

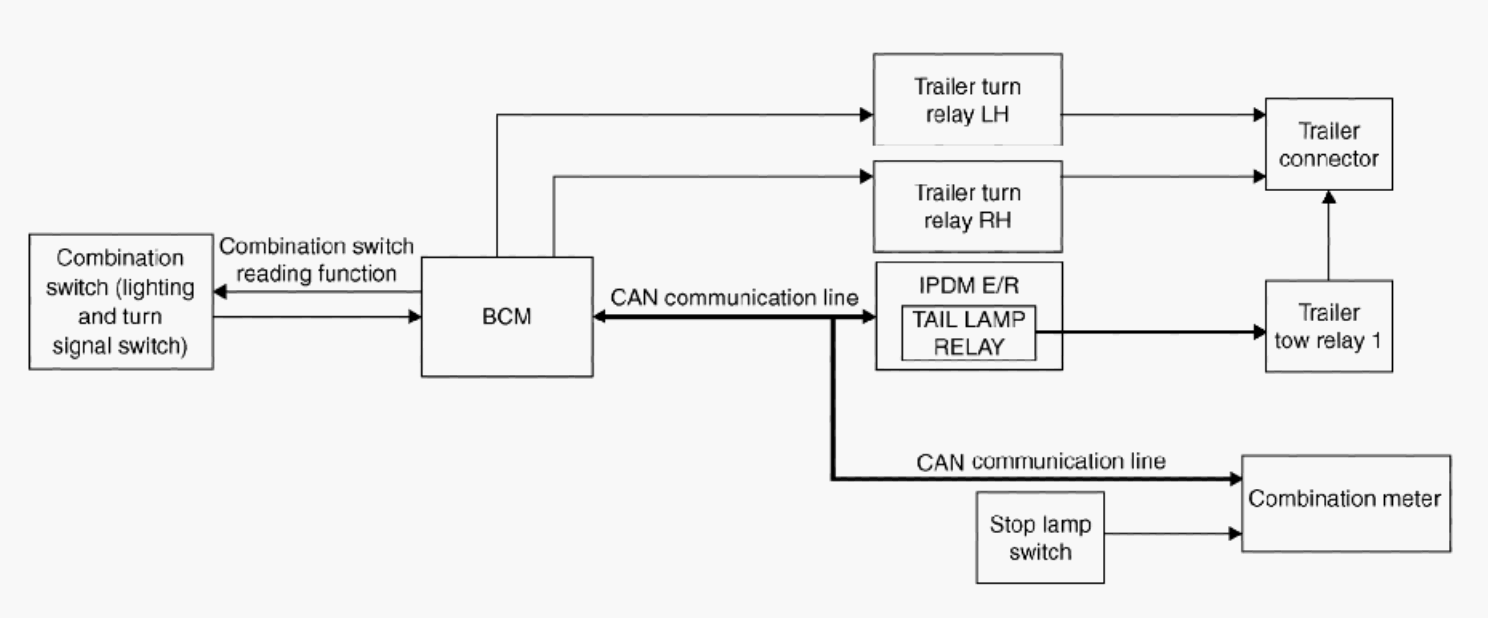

Fig 1: Trailer Tow System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
