Interior Room Lamp Control System: System Diagram [With Power Door Locks]

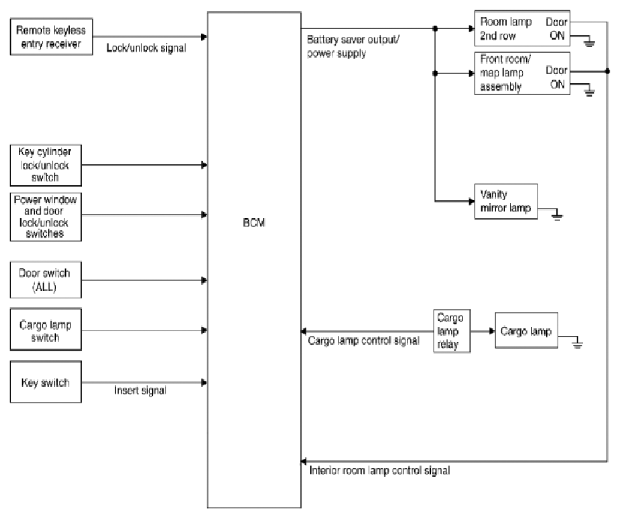

Fig 1: Interior Room Lamp Control System Diagram (With Power Door Locks)
G06443405Courtesy of SUZUKI OF AMERICA CORP.
