Schematic and Routing Diagram
>>
Headlamp: System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Headlamp: System Diagram

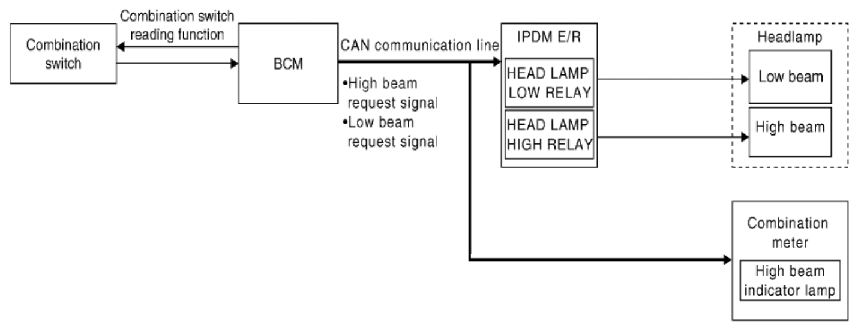

Fig 1: Headlamp System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
