Combination Switch Reading System: System Diagram

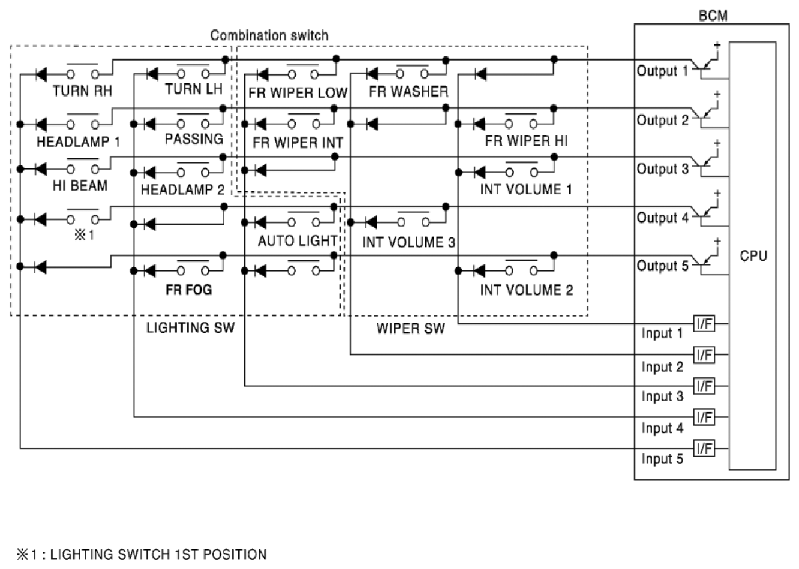

Fig 1: Combination Switch Reading System Diagram
G06443404Courtesy of SUZUKI OF AMERICA CORP.
