Rear Combination Lamp: Bulb Replacement: Removal

  1. Remove rear combination lamp. Refer to [REAR COMBINATION LAMP: REMOVAL AND INSTALLATION ].

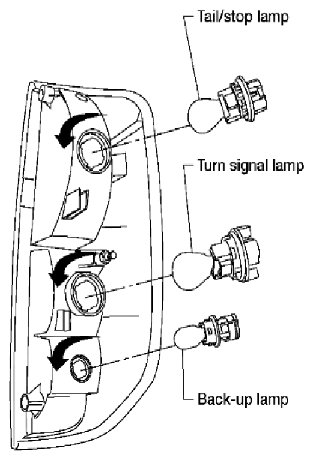

    Fig 1: Identifying Turn Signal Lamp, Back-Up Lamp And Stop Lamp
    G06443534Courtesy of SUZUKI OF AMERICA CORP.
  2. Turn bulb counterclockwise to remove bulb socket.
  3. Pull bulb straight out away from socket to release.
