Hazard Switch: Removal and Installation: Removal

  1. Remove cluster lid C. Refer to [CLUSTER LID C: REMOVAL AND INSTALLATION ]
  2. Disconnect the hazard switch connector.
  3. Remove the screws and remove the hazard switch.

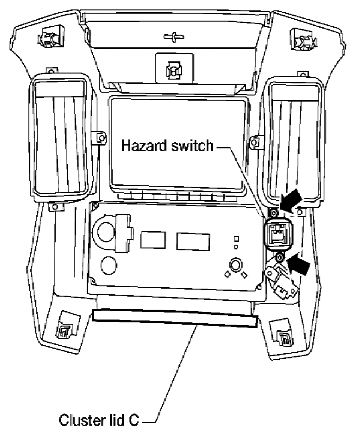

    Fig 1: Identifying Hazard Switch And Cluster Lid C
    G06443537Courtesy of SUZUKI OF AMERICA CORP.
